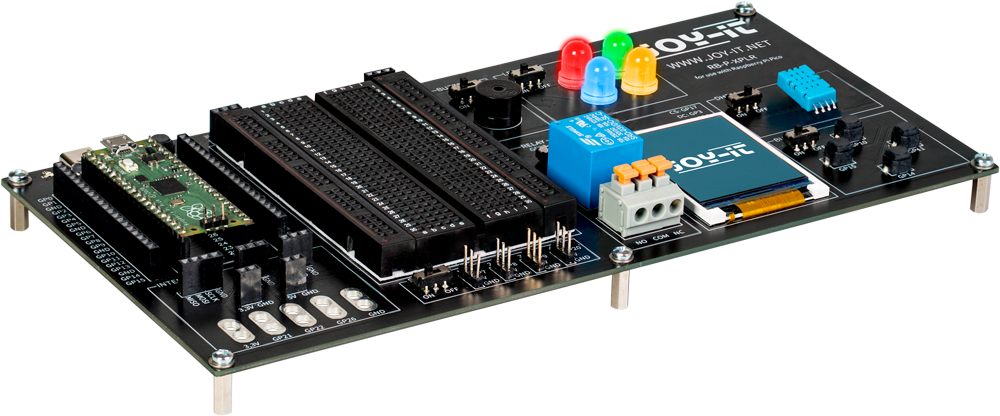

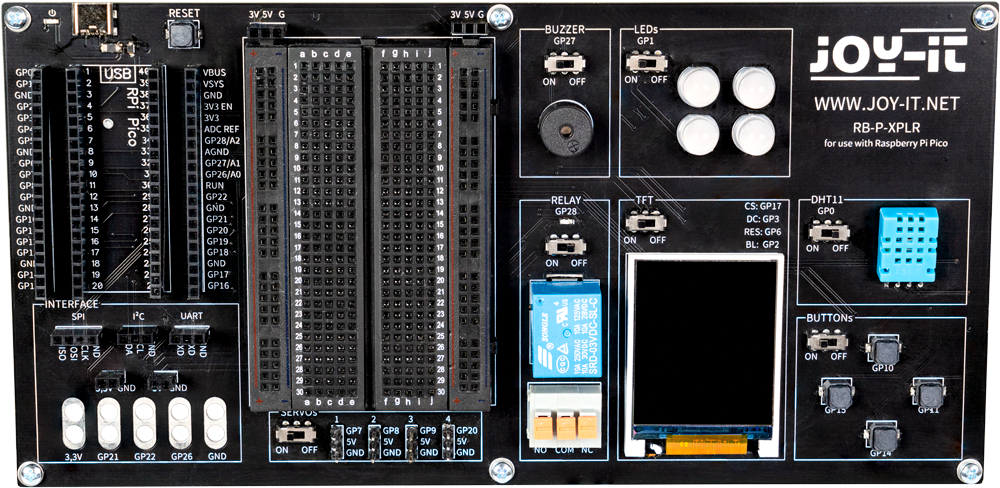

Explorer Board

Our Explorer Board is the easy and efficient way to develop your Raspberry Pi Pico projects.

Since the most important components are already integrated, you save time and effort on wiring. The Explorer Board has a wide range of interface connectors so you can connect your projects to a variety of modules and devices. With the integrated breadboard, you can quickly build and realize your own projects.

Thanks to the possibility to connect or disconnect all modules individually, you can use your pins, which are additionally led separately to the outside, for other projects or experiment on the integrated breadboard at any time.

Specifications

Functions

Fast and efficient experimenting with the Raspberry Pi Pico, Raspberry Pi Pico can be plugged in directly, All modules can be switched on and off individually, Addiitonal integrated breadboard for own developments

Integrated modules

4 RGB LEDs, buzzer, relay, 1.8" TFT display, DHT11 temperature sensor, 4 buttons, breadboard

Interfaces

4x servo motor, SPI, I2C, UART, 5x crocodile clip connector

Power supply

5 V USB-C

Compatible to

Raspberry Pi Pico, Raspberry Pi Pico W

Dimensions

219 x 110 x 27 mm

Items shipped

Explorer board

EAN

4250236825878

Article No.

RB-P-XPLR

Downloads

• RB-P-XPLR Datasheet (English) - 2023.03.29 - 1,98 MB
• RB-P-XPLR Datasheet (German) - 2023.03.29 - 1,98 MB
• RB-P-XPLR_Examples-and-libraries.zip - 15,47 KB
• RB-P-XPLR Manual (German) - 2024.04.02 - 10,4 MB
• RB-P-XPLR Manual (English) - 2024.04.02 - 10,4 MB
