Pi Energy Mini

Pi Energy Mini

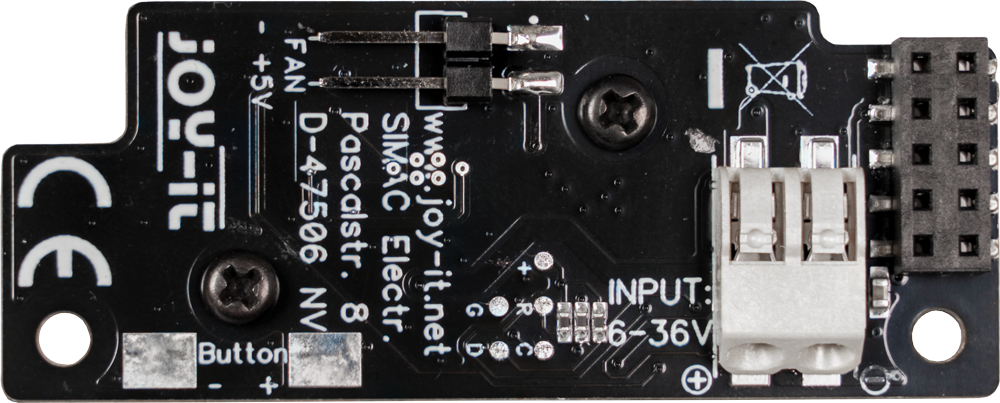

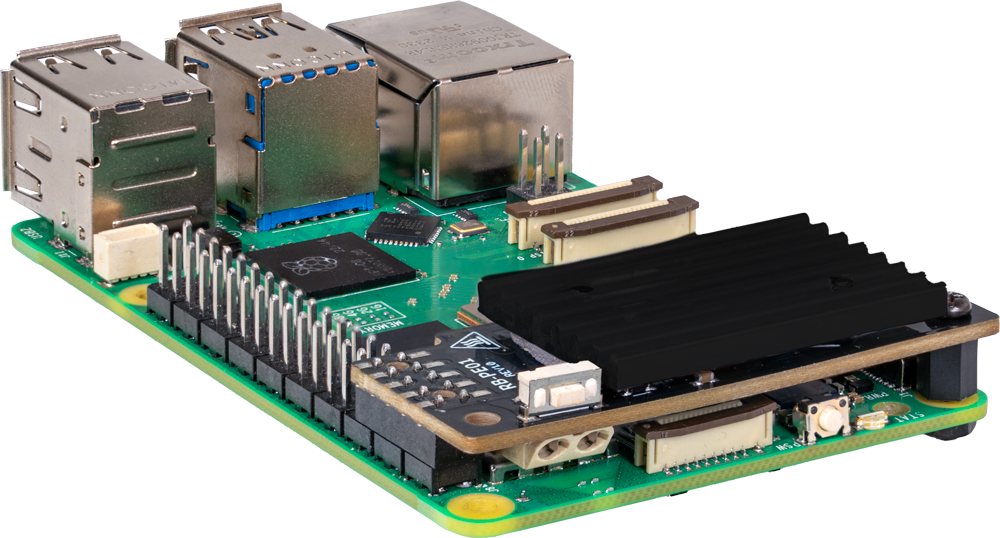

With the PiEnergy-Mini, you can operate your Raspberry Pi with a voltage of 6 to 36 V DC. You can use the button integrated on the board to both power up and power down your Raspberry Pi.

Communication with the Raspberry Pi is via GPIO4, but this connection can also be cut by removing a resistor to use the pin freely. Thanks to the ultra-flat design, it can also be used in many housings. The pin header is included and not soldered on to keep the design even flatter.

Specifications

Specifications

Special feature

Ultra-flat design, integrated button for powering up and shutting down the Raspberry Pi

Compatible with

Raspberry Pi 3, 4, 5

Input voltage

6 to 36 V DC

Output voltage

5,1 V

Output current

Up to 3 A (active ventilation recommended for additionally connected loads)

Interface to the Raspberry Pi

GPIO4

Microcontroller

STM8S001J3

Further connections

5V fan connector (2pin / 2.54mm), Solder pads for external on / off switch

Dimensions

23 x 56 x 11 mm

Weight

15 g

Items shipped

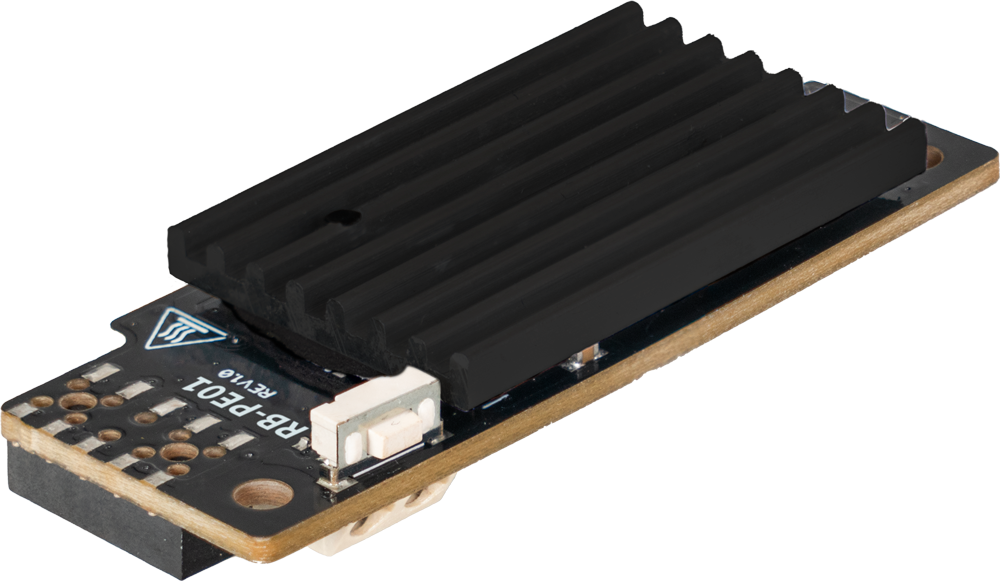

Board with mounted heat sink, pin header (2x5), spacer, screw, nut

EAN

4250236827421

Article No.

RB-PE01
