Proto +

Proto +

Proto +

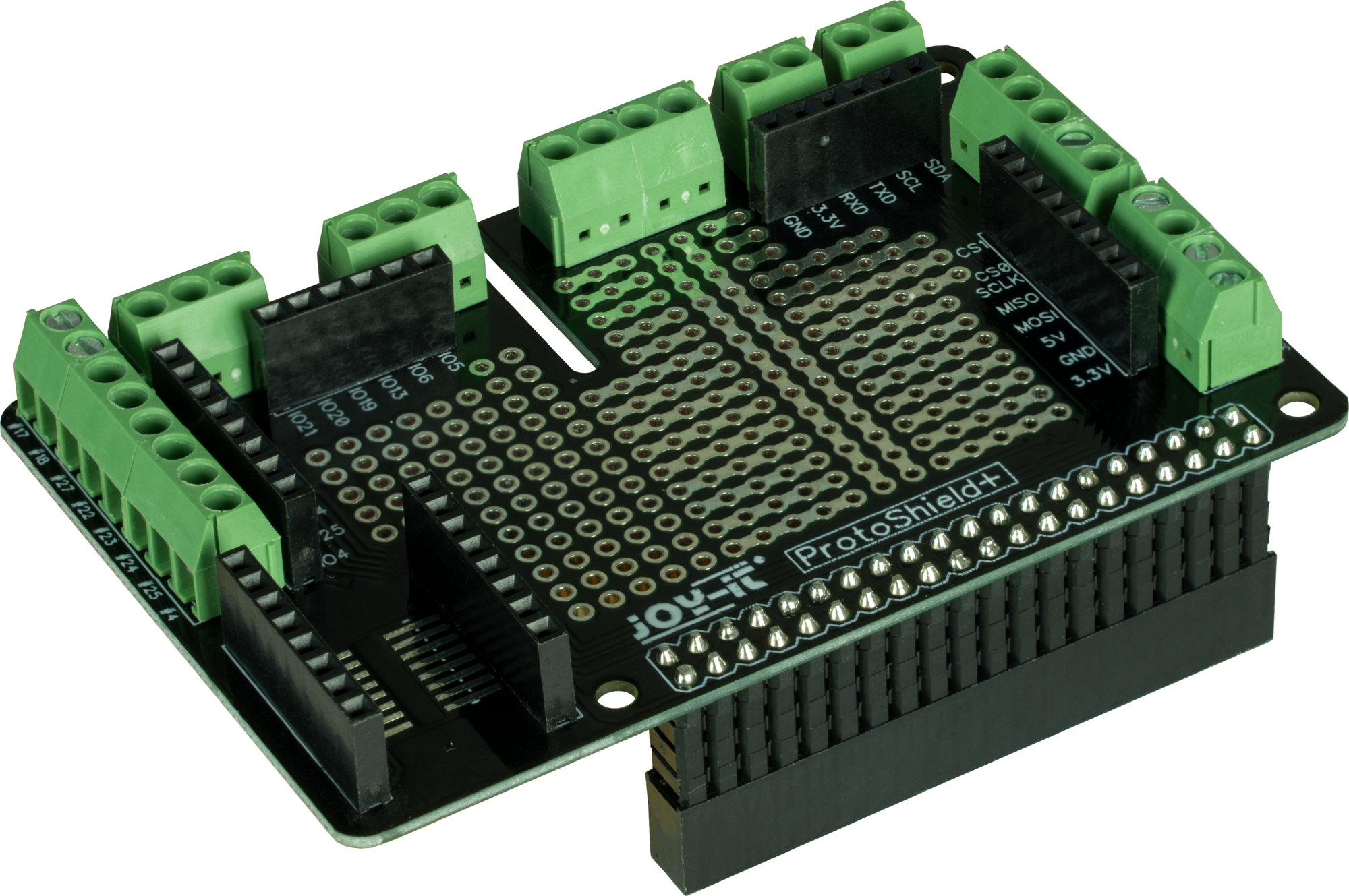

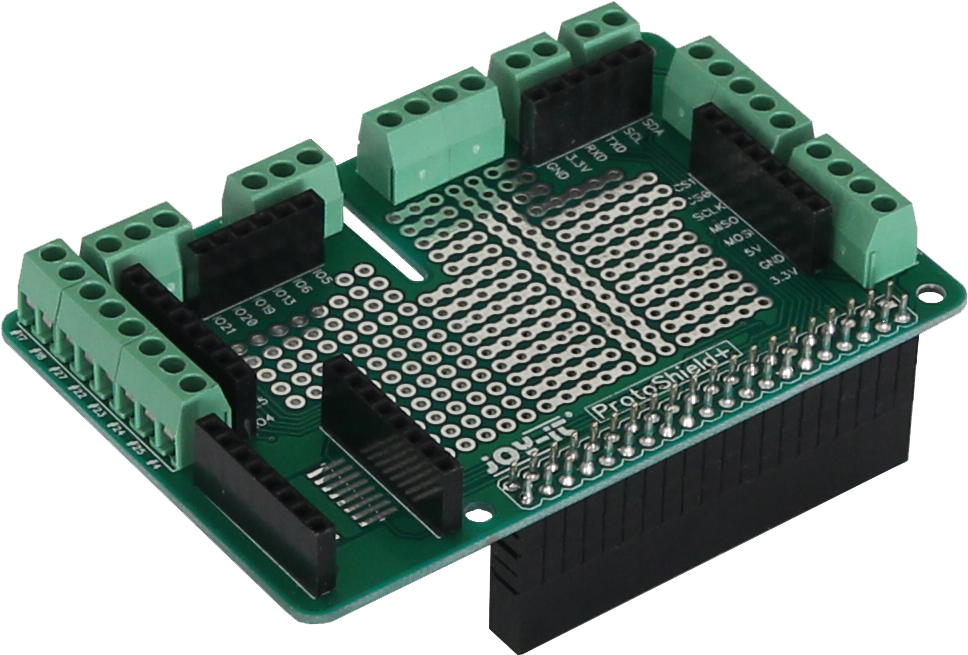

With our Proto+ prototype circuit board, your own designs and projects can be implemented easily. The board is equipped with nearly all popular interfaces and also has a built-in breadboard for quick implementation of your ideas and developments.

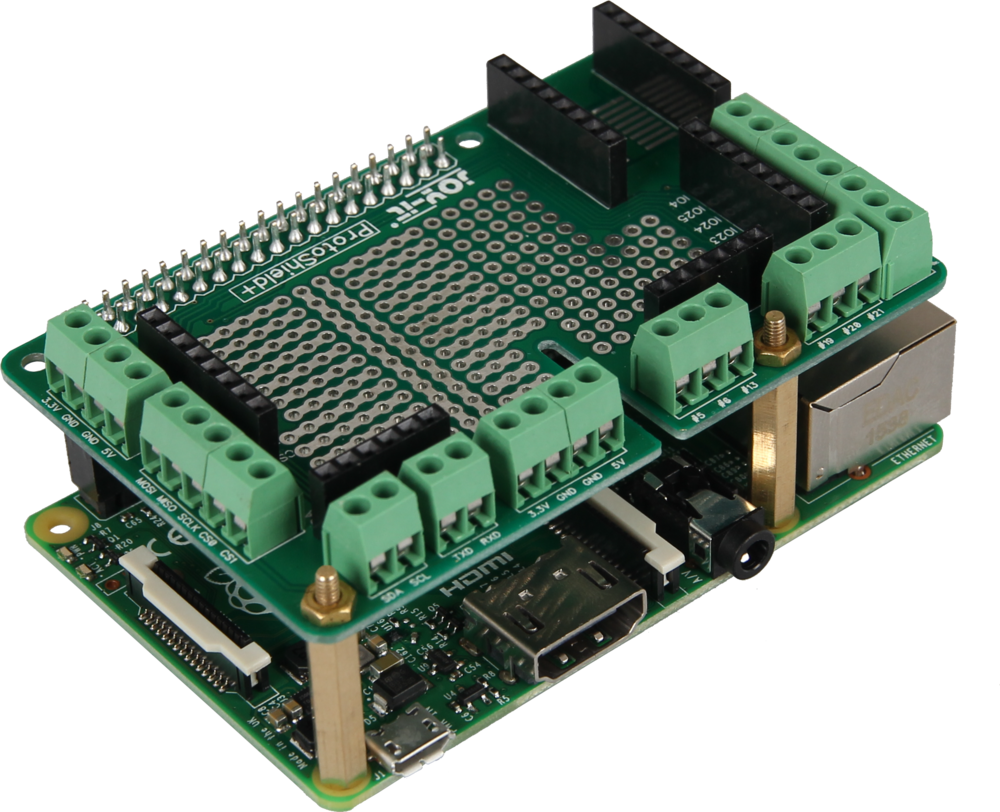

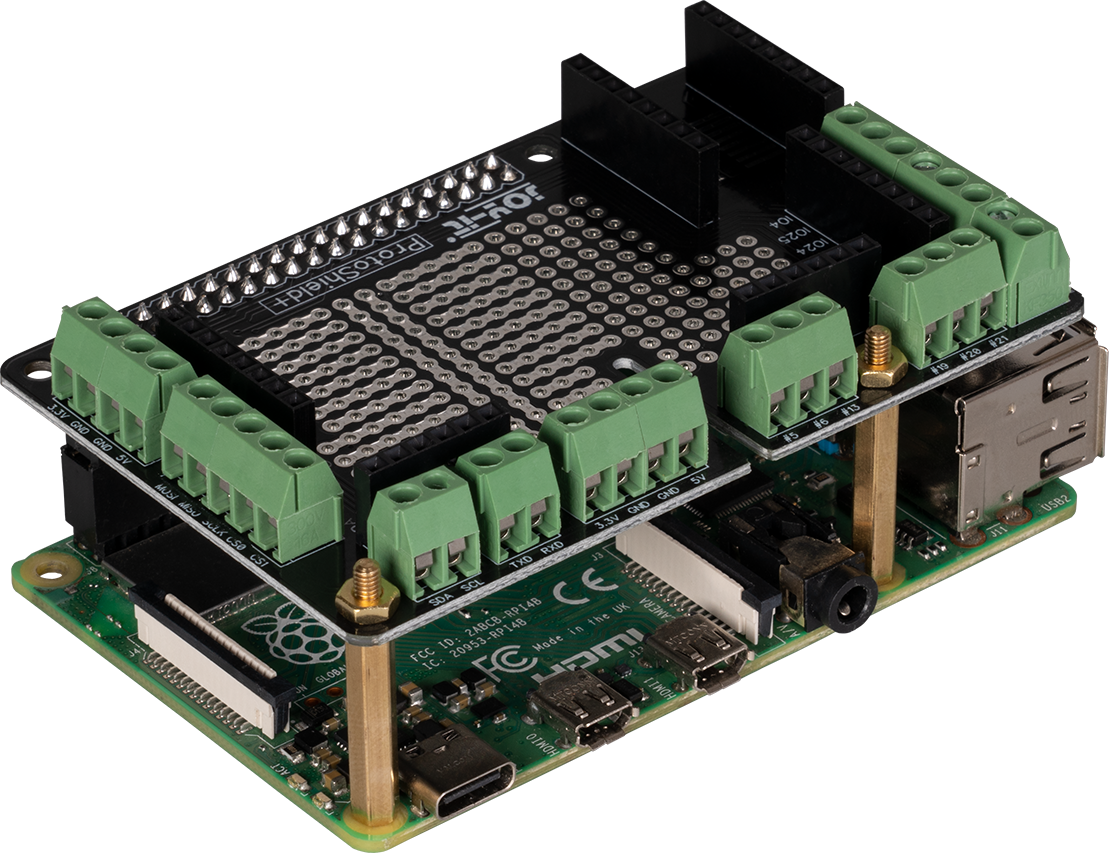

The built-in GPIO bar allow the expansion board to be easily attached and plugged onto a Raspberry Pi so it can be used immediately. The supplied screws and spacers allow the PCB to be connected directly to the Raspberry Pi. The screw terminals are already installed and facilitate the use and fast experimenting.

Specifications

Specifications

Model

Proto+ Prototype-Board

Available Connectors

GPIO (40-pole), SOIC16, Breadboard, 2x 3,3V, 2x 5V, UART, I2C, SPI

Special feature

The outer screw terminals are connected to the GPIO connectors.

Compatible to

Raspberry Pi B+, 2, 3 and 4

Dimensions

55 x 85 mm

Weight

44 g

Items Shipped

Proto+ Board, Screws, Spacers

EAN

4250236814797

Article No.

RB-Proto+
