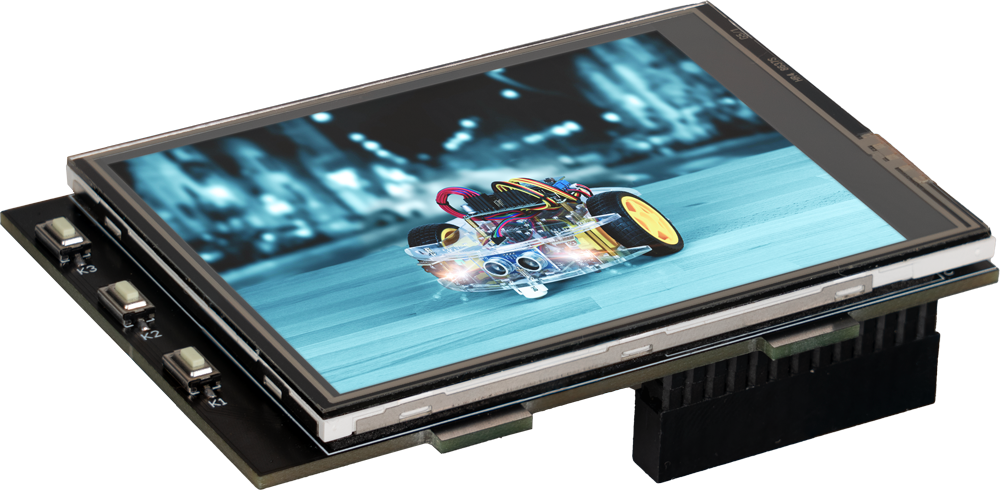

3.2" TFT Touchscreen Display

Experience excellent display and intuitive operation with our 3.2“ display, specially designed for your Raspberry Pi. This display, despite its compact size, ensures that your content is always presented in vibrant colors and impressive sharpness with a brilliant resolution of 320x240 pixels.

A special feature of this display is its customizable LED backlight, which can be switched on or off directly via a GPIO pin on the Raspberry Pi.

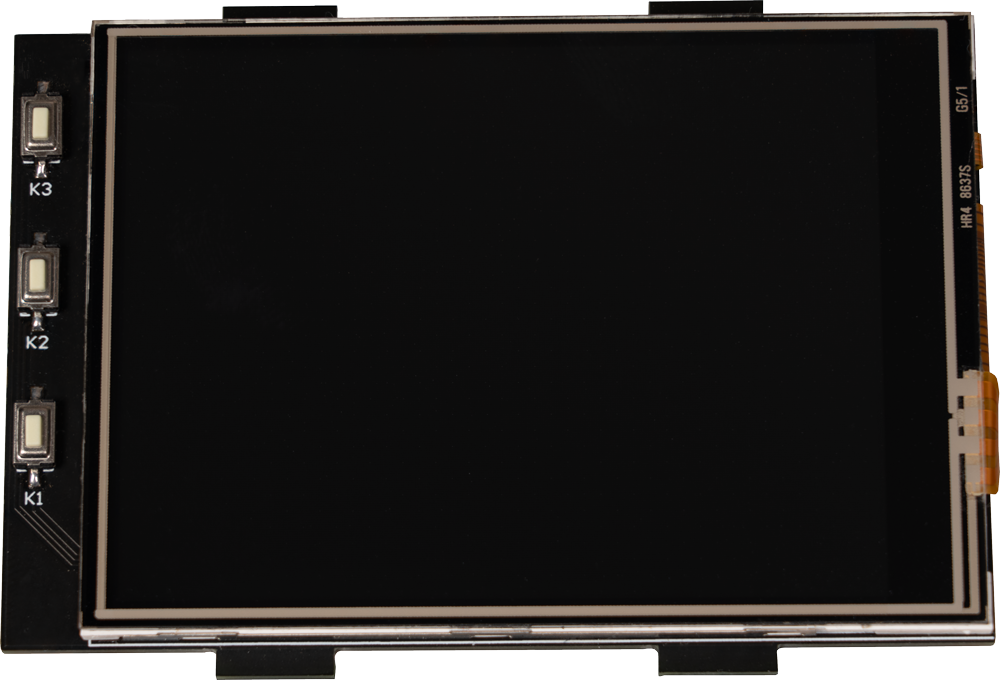

In addition, the display stands out with its three freely programmable buttons. You can configure these as you wish, be it for simple menu navigation, specific tasks or for quick access to certain functions. There are hardly any limits to your creativity here.

Specifications

Display size

3.2" (8.13 cm)

Resolution

320 x 240 pixels

Touchscreen type

Resistive single touch

Backlight

LED

Connection

GPIO Header

Communication protocol

SPI

Special features

3 freely assignable buttons (GPIO23, GPIO24, GPIO25),

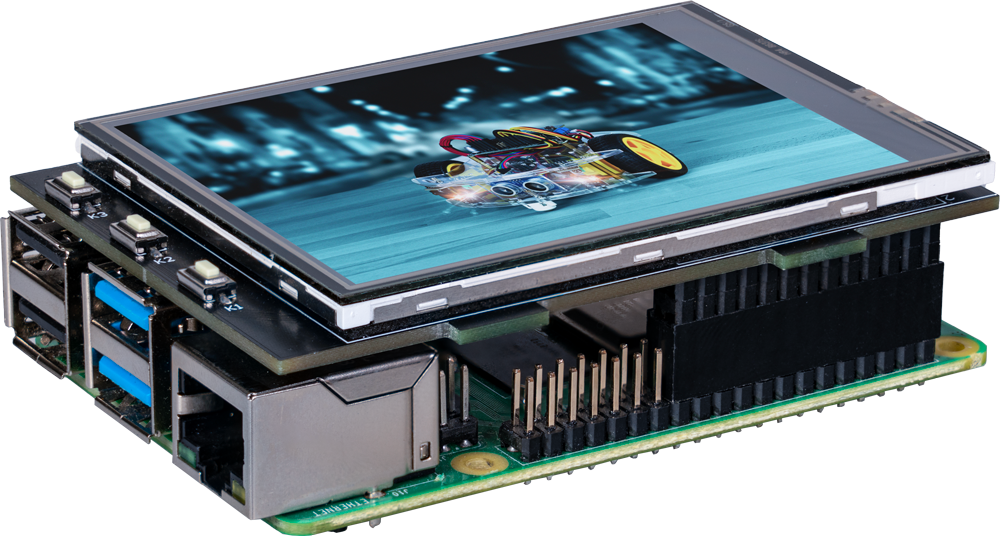

directly pluggable to the Raspberry Pi,
backlight controllable via pin (GPIO18)

Controller

XPT2046

IC Driver

SSD1289

Colors

65536

Brightness

350 cd/m

Operating temperature

0 °C - +70 °C

Viewing angle (horizontal)

Up to 45 °

Viewing angle (vertical)

Top: Up to 45 °
Bottom: Up to 20 °

Additional information

Dimensions

85 x 20 x 60mm

Items shipped

RB-TFT3.2-V3

EAN

4250236826301

Article No.

RB-TFT3.2-V3
