Buttonmatrix

Buttonmatrix

Buttonmatrix

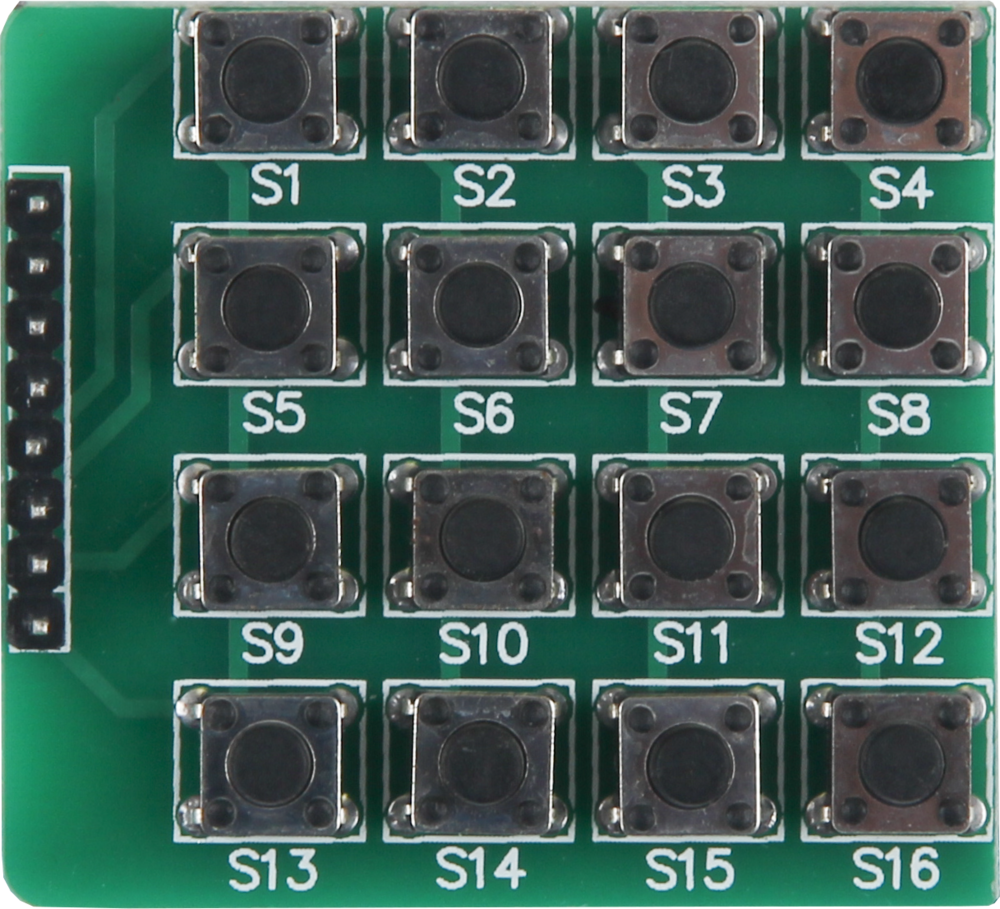

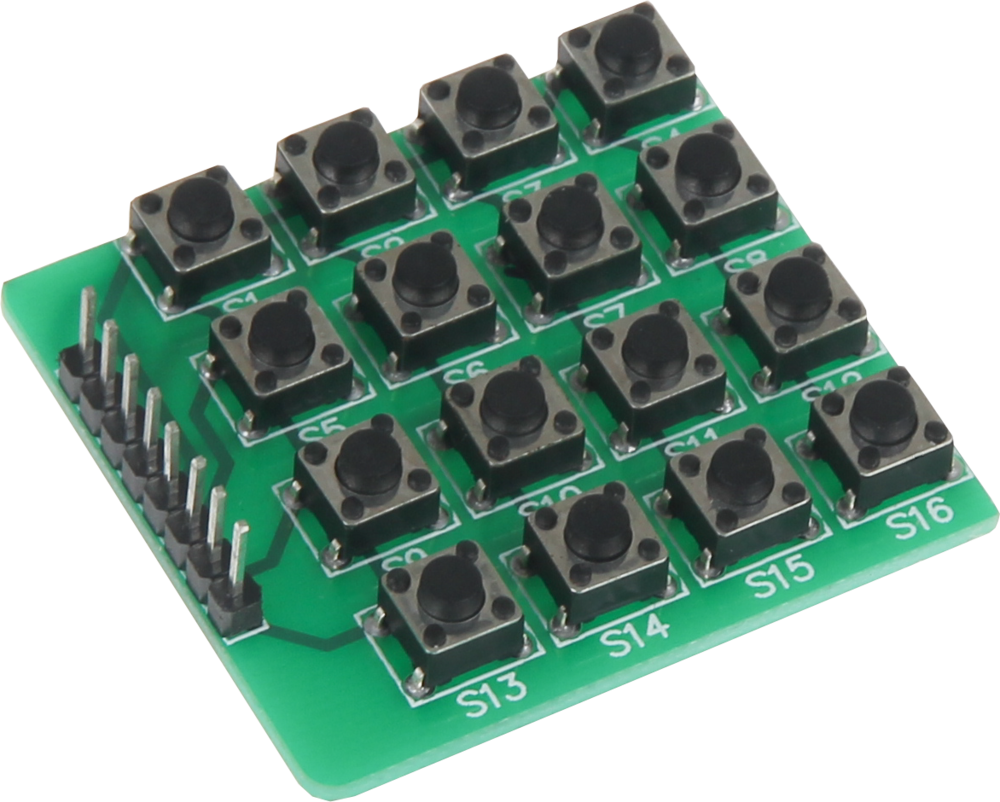

This buttonmatrix is a keypad out of 16 buttons which are arranged in a 4 x 4 matrix. In 4 rows are 4 columns linked which is why only 8 I/O lines are required.

Specifications

Specifications

Model

4x4 Buttonmatrix

Type

Buttonmatrix with 16 buttons (4x4)

Special Features

Links four rows to four columns and requires only 8 I/O lines

Dimensions

39 x 43 x 7 mm

Weight

12 g

Items Shipped

Buttonmatrix

EAN

4250236813202

Article No.

SBC-ButtonMatrix
