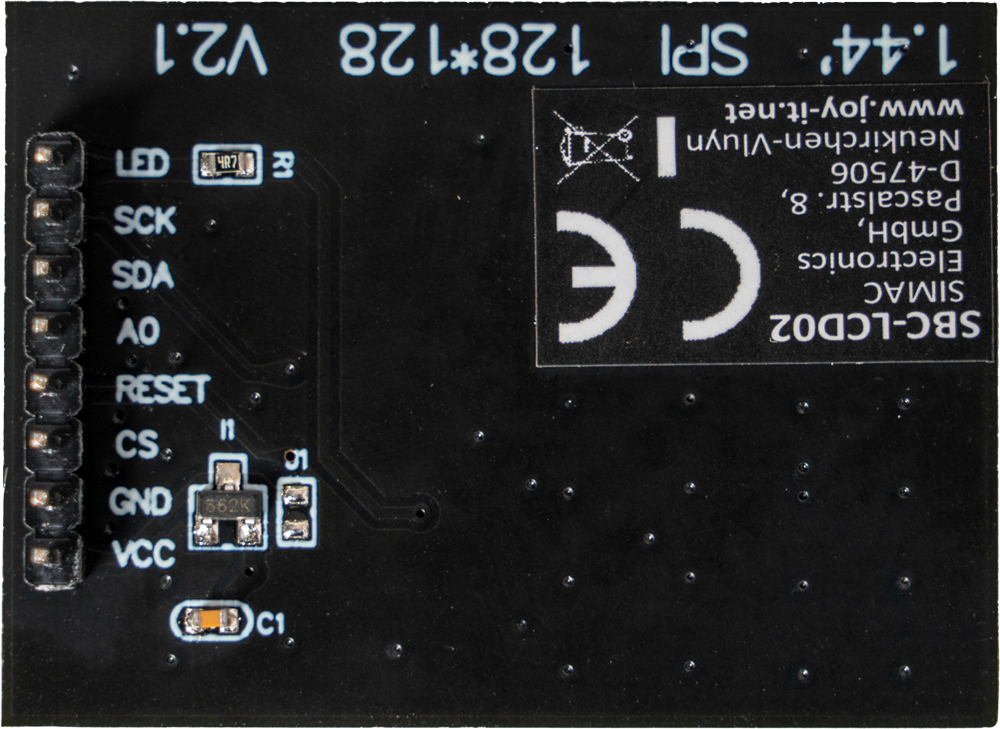

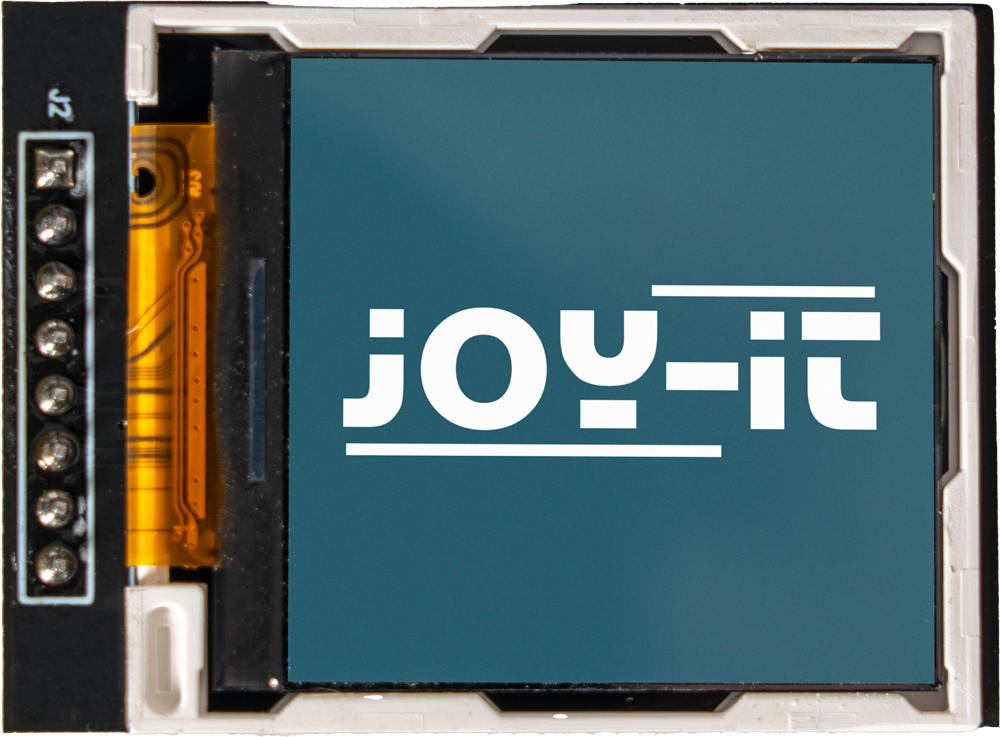

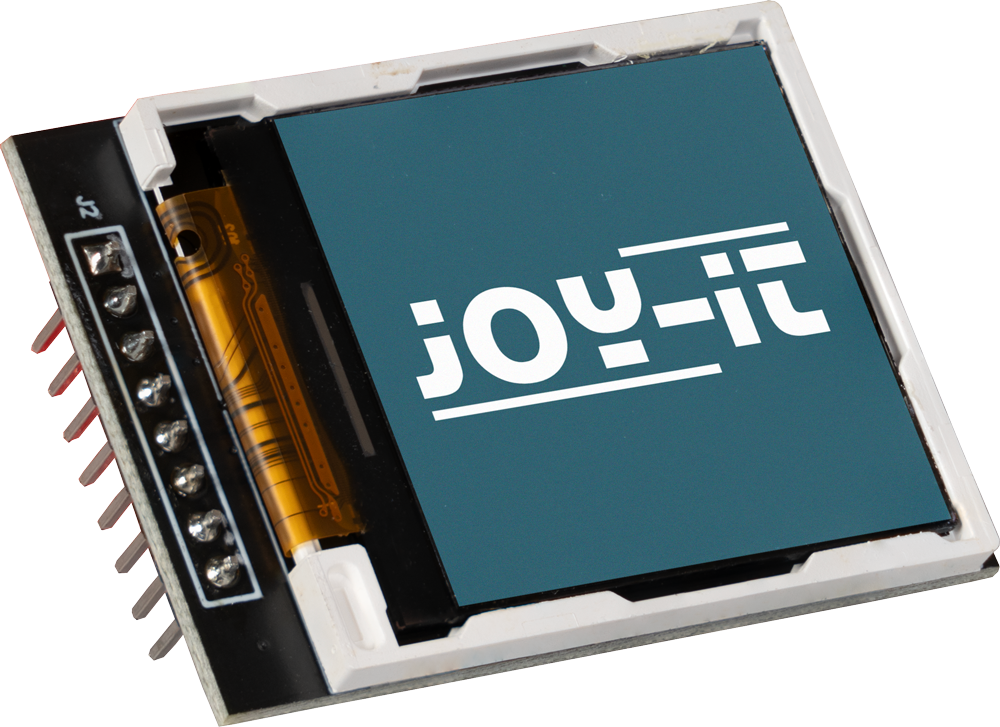

1.44" IPS TFT color LCD

1.44" IPS TFT color LCD

1.44" IPS TFT color LCD

This compact IPS TFT display is controlled via SPI and is well suited for use as an output device on microcontrollers (e.g. NodeMCU) and single-board computers (e.g. Raspberry Pi).
By using a high-resolution IPS panel with a high pixel density of 125 dpi, content can be displayed in high resolution on the compact display.

Specifications

Specifications

Display type

Full color IPS TFT LCD with white LED backlight

Colors

18-bit color depth (262.144 colors)

Resolution

128 x 128 Pixels

Pixel density

125 dpi

Chip

ILI9163

Interface

SPI

Special feature

Via pin controllable backlight

Supply voltage

3.3 V

Current consumption

8 - 10 mA

Logic level

3.3 V

Response time

25 ms

Brightness

178 cd/m²

Viewing Angle

180°

Operation temperature

-40 °C to 85 °C

Dimensions

30 x 43 x 10 mm

Items Shipped

1.44" TFT LCD with pins

EAN

4250236821986

Article No.

SBC-LCD02
