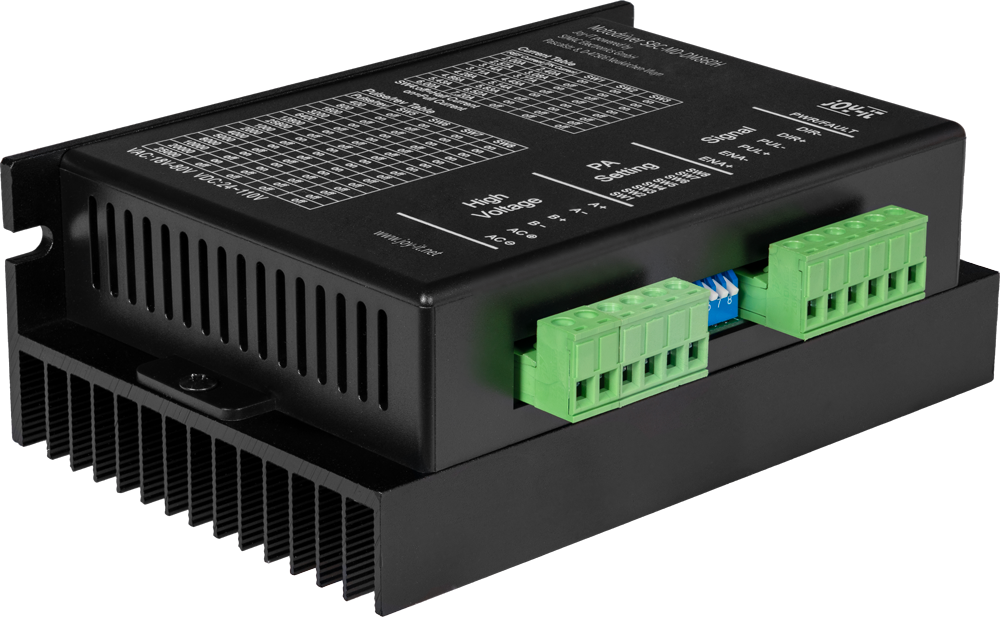

DM860H Stepepr Motor Driver

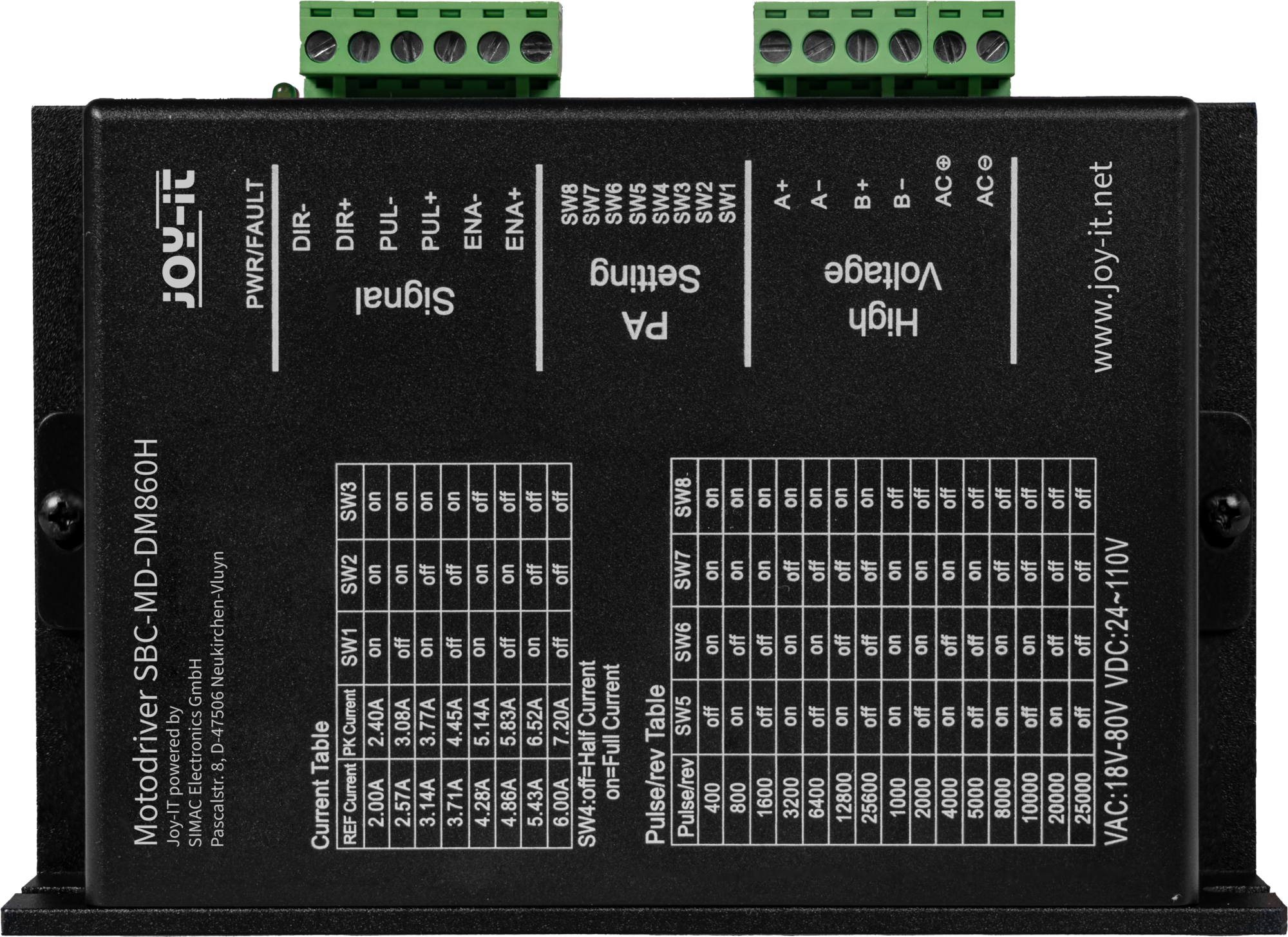

The DM860H is a state-of-the-art stepper motor driver designed to ensure smooth and precise control of bipolar stepper motors. This driver is compatible with a wide range of stepper motors and offers an optimal solution for demanding applications. Easy-to-use DIP switches allow for quick configuration of microstep resolution and current.
Specifications
Model
DM860H
Special feature

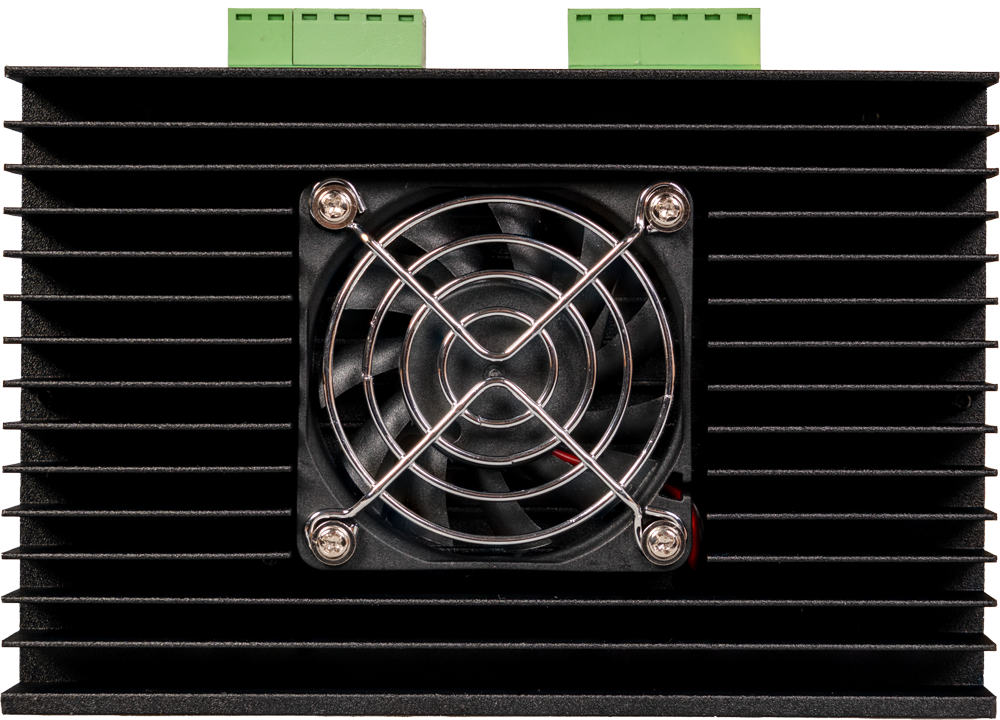

DIP switch configuration, active cooling
Output Current
2.4 - 7.2 A
Voltage
18 - 80 VAC / 24 - 110 VDC
Subdivision range
400 - 25600 ppr
Puls frequency
0 - 200 kHz
Signal input
Single-ended, pulse / direction, 5 - 24 VDC level compatible
Protection function
Overcurrent protection,
overvoltage protection,
undervoltage protection
Compatible with
NEMA23-01, NEMA23-02, NEMA34-01, NEMA34-02
Additional information
Dimensions
150 x 109 x 53 mm
Weight
483 g
Items shipped
DM860H motor driver
Article No.
SBC-MD-DM860H
