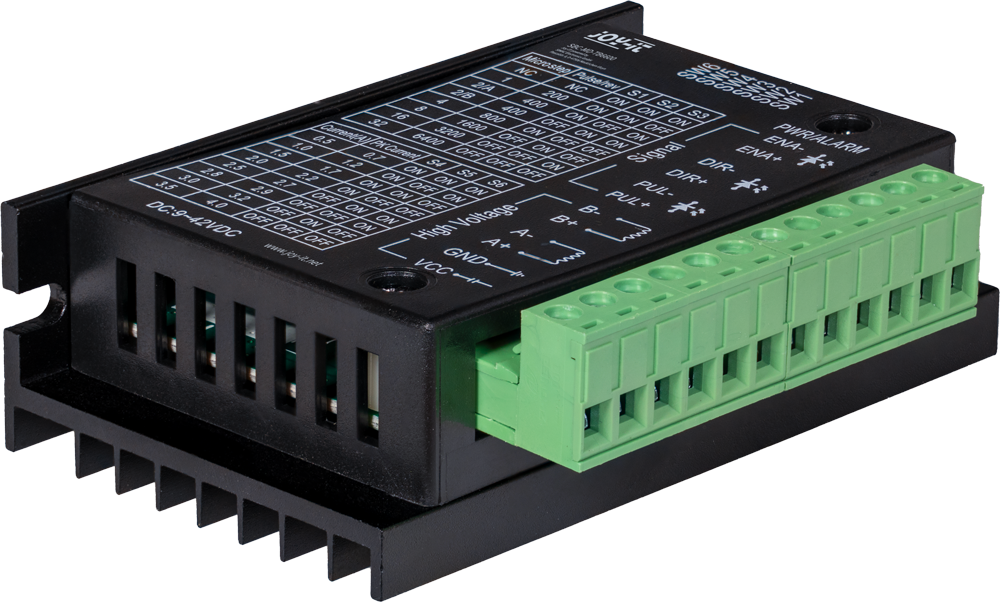

TB6600 Stepper Motor Driver

The TB6600 stepper motor driver is a versatile and efficient module designed to drive a wide range of stepper motors. With its ease of use and robust design, the TB6600 is a preferred driver module for hobbyists, makers and engineers alike. It is used in CNC machines, 3D printers, laser engraving and other automated projects that require precise control of motor movements. Easy-to-use DIP switches allow for quick configuration of microstep resolution and current.

Specifications

Model

TB6600

Special feature

DIP switch configuration

Output Current

0,5 - 4,0 A

Voltage

9 - 42 VDC

Subdivision range

200 - 6400 ppr

Puls frequency

0 - 50 kHz

Signal input

Single-ended, pulse / direction, 5 - 24 VDC level compatible (isolated)

Protection function

Overcurrent protection,
overvoltage protection,
undervoltage protection

Compatible with

NEMA08-01, NEMA08-02, NEMA08-03, NEMA08-05HS, NEMA11-02, NEMA14-02,
NEMA14-02, NEMA17-01, NEMA17-02, NEMA17-03, NEMA17-04, NEMA17-05GM,
NEMA17-06, NEMA17-07GM, NEMA17-08GM, NEMA23-02, NEMA23-03, NEMA23-05,
NEMA-FLAT01, NEMA-FLAT02

Additional information

Dimensions

97 x 71 x 28 mm

Weight

123 g

Items shipped

TB6600 motor driver

EAN

4250236827148

Article No.

SBC-MD-TB6600
