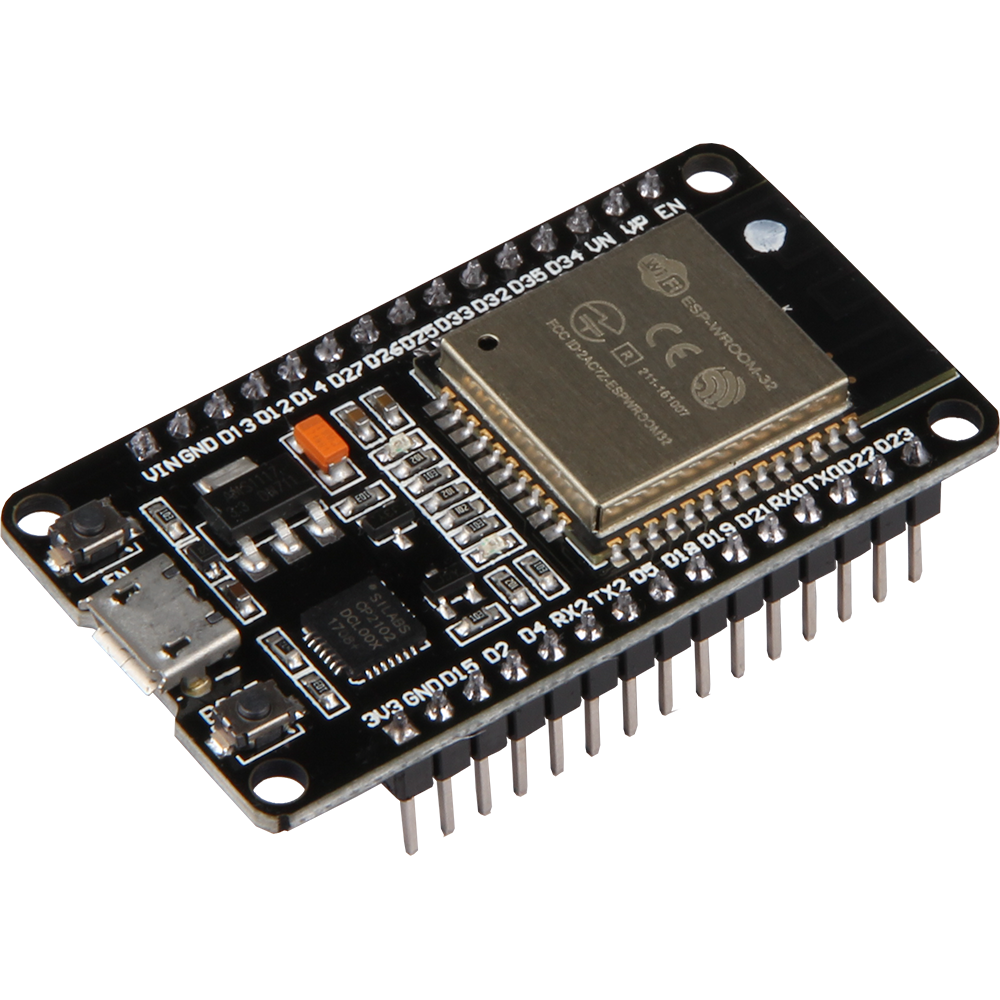

NodeMCU ESP32

NodeMCU ESP32

NodeMCU ESP32

With the NodeMCU-ESP32, comfortable prototyping is possible with simple programming via Luascript or the Arduino IDE and the breadboard-compatible design. This board has 2.4 GHz dual-mode Wifi and a BT wireless connection.
In addition, a 512 KB SRAM and a 16MB memory are integrated on the microcontroller development board. The board has 21 pins for interface connection, including I2C, SPI, UART, DAC and ADC.

Specifications

Specifications

Model

NodeMCU ESP32

Type

ESP32

Processor

Tensilica LX6 Dual-Core

Clock Frequency

240 MHz

SRAM

512 kB

Memory

4 MB

Wireless Standard

802.11 b/g/n

Frequency

2,4 GHz

BT wireless connection

Classic / LE

Data Interfaces

UART / I2C / SPI / DAC / ADC

Operating Voltage

3,3V (operable via 5V-microUSB)

Operating Temperature

-40°C - 125°C

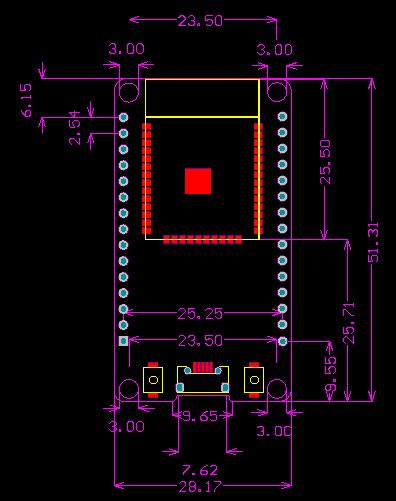

Dimensions

48 x 26 x 11,5 mm

Weight

10 g

Items Shipped

NodeMCU ESP32

EAN

4250236816104

Article No.

SBC-NodeMCU-ESP32

Frequently Asked Questions

Frequently Asked Questions

VIN max. ?

If an AMS1117 voltage converter is installed in your NodeMCU-ESP32, this can regulate a max. voltage from 15V to 3.3V at the VIN. Due to lack of cooling we recommend to operate it below 7V.
