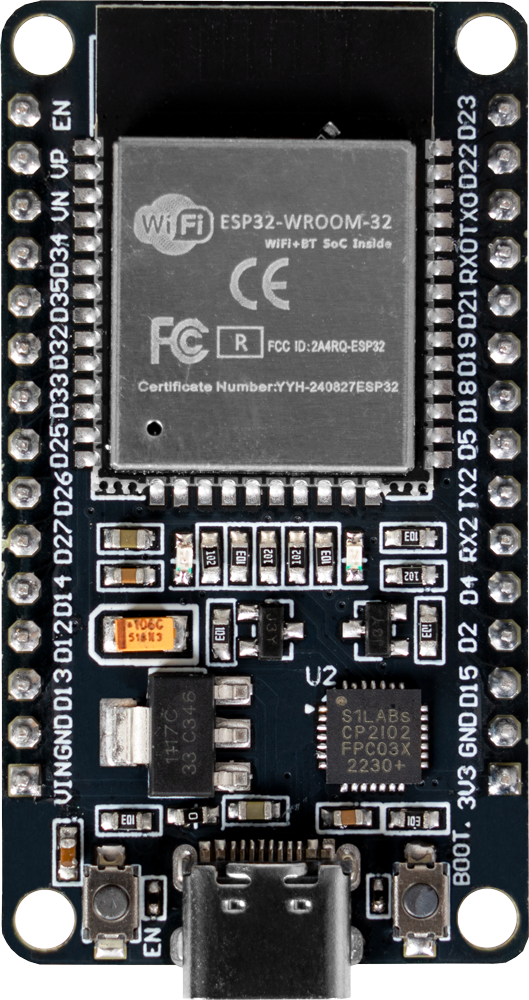

NodeMCU ESP32-C
The NodeMCU-ESP32 is an ideal choice for effortless prototyping, offering easy programming through Lua script or the Arduino IDE. Its breadboard-compatible design ensures quick setup and integration into your projects. This powerful development board features 2.4 GHz dual-mode Wi-Fi and BT wireless connectivity, enabling seamless communication for a wide range of applications.
Equipped with 512 KB of SRAM and 4 MB of flash memory, the NodeMCU-ESP32 provides ample resources for your projects. It also includes 21 GPIO pins for flexible interfacing, supporting protocols such as I2C, SPI, UART, DAC, and ADC for a variety of sensor and peripheral integrations.
Additionally, the board includes a USB-C interface for fast and convenient power and data transfer, ensuring modern connectivity standards.
Specifications
Model
Node MCU ESP32 USB-C
Special feature
WiFi and BT, USB-C
Operating voltage
3.3 V; 5V via USB-C
Processor
Tensilica LX6 Dual-Core
Clock frequency
240 MHz
SRAM
512 kB
Memory
4 MB
Wifi standard
802.11 b/g/n - 2,4 GHz
Logic Level
3.3 V
Max. current draw per GPIO
40 mA
Interfaces
I2C, SPI, UART, DAC, ADC
Additional information
Dimensions
54 x 29 x 13 mm
Weight
10 g
EAN
4250236828817
Article No.
SBC-NodeMCU-ESP32-C
