Motion Detector

Motion Detector

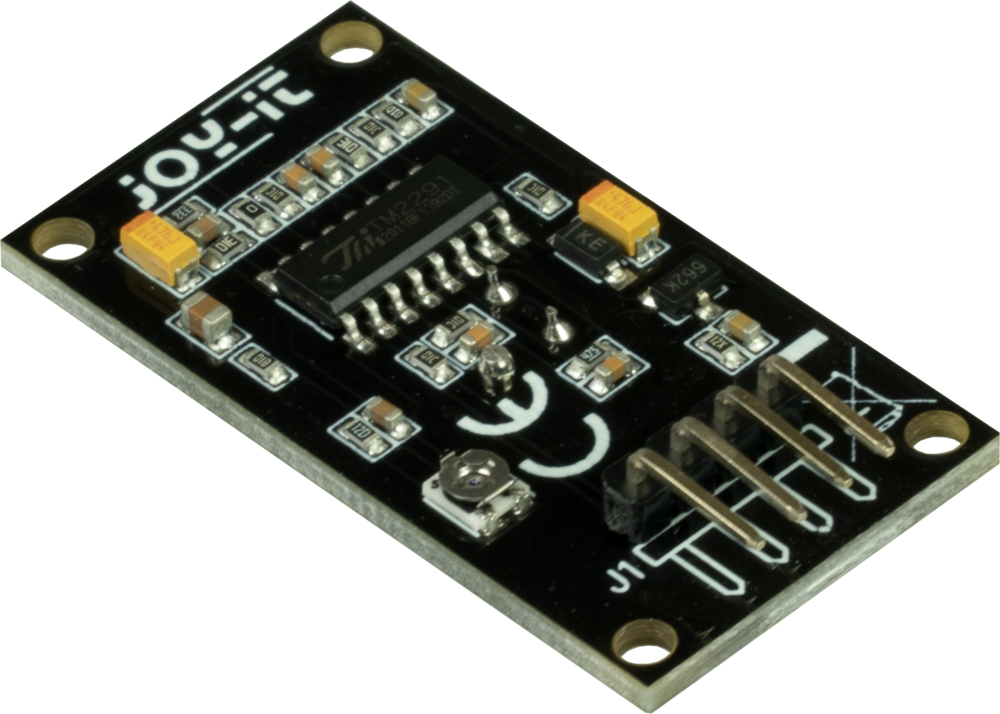

The sensor on this module is a pyroelectric infrared sensor which detects movement in the detection area of the Fresnel lens and then outputs a "HIGH" signal at the sensor output pin "SIG" for 3 seconds. Afterwards the signal changes back to the "LOW" state. The soldered potentiometer is used for variable range adjustment. With the help of this module and a microcontroller such as Raspberry Pi or Arduino, it can be used for safety systems or automation, among others.

Specifications

Specifications

Sensor

PIR Motion Detector

Operating principle

Pyroelectric infrared rays

Special feature

Reach infinitely variable

Supply voltage

between 3-5 Volts

Module interface

4 Pins

Detector chip

BIS0001

Detection angle

120°

Detection range

max. 6 meters (3 meters standard)

Variable detection range via potentiometer

Adjusting the sensitivity controller on the module board using a cross screwdriver

Compatible to

Raspberry Pi, Arduino, Raspberry Pi Pico, BBC micro:bit

Dimensions

21 x 40 x 19 mm

Items shipped

SBC-PIR Motion Detector

EAN

4250236820859

Article No.

SBC-PIR
