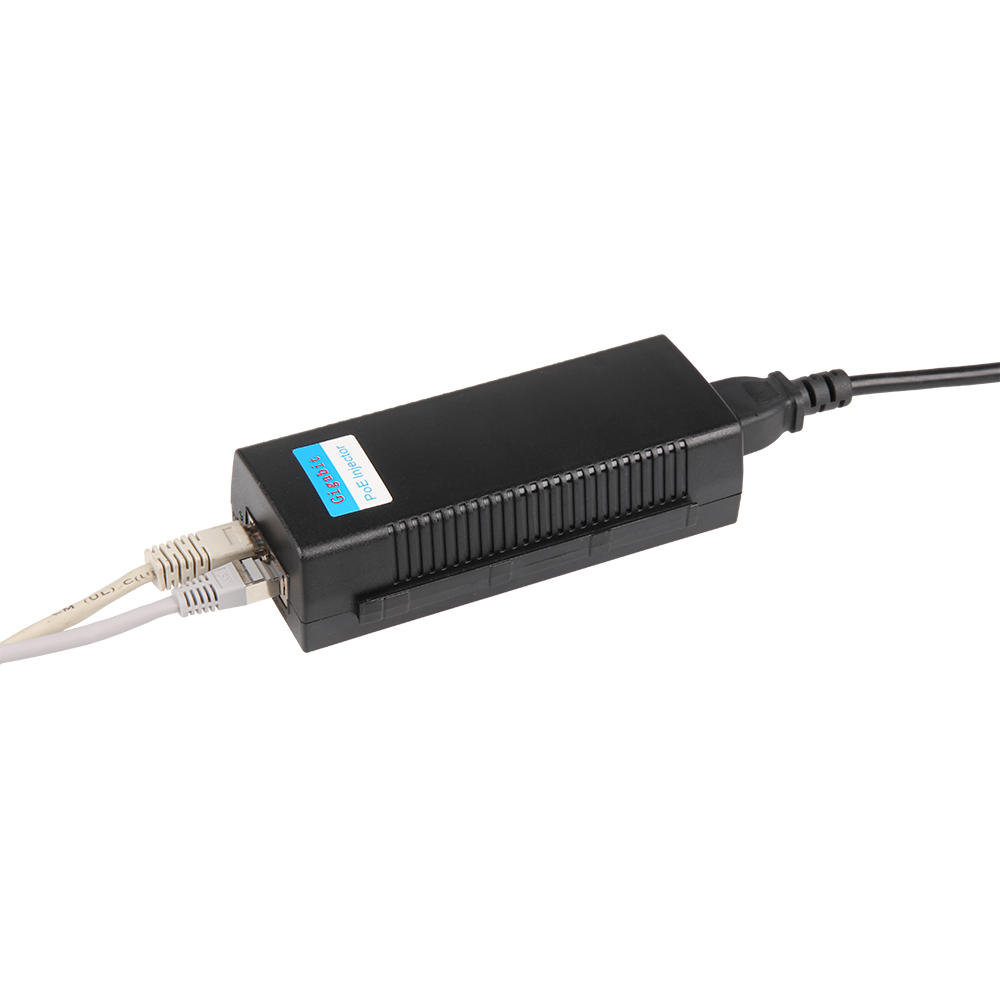

Power over Ethernet Injector

The Power over Ethernet Injector (model SBC-PoEInject) offers a reliable way of supplying networkcompatible devices such as IP cameras, access points or single-board computers with power and data via a single Ethernet cable. The compact unit complies with the IEEE 802.3af and 802.3at standards and is therefore compatible with a variety of professional PoE-capable end devices.

With a transmission rate of up to 1000 Mbps (Gigabit Ethernet), the injector ensures a stable and fast network connection - even for data-intensive applications. The output voltage is 48 V with a current of up to 0.8 A, which enables a maximum output power of around 38 W. This makes the device ideal for use in office environments, industrial installations or building automation.

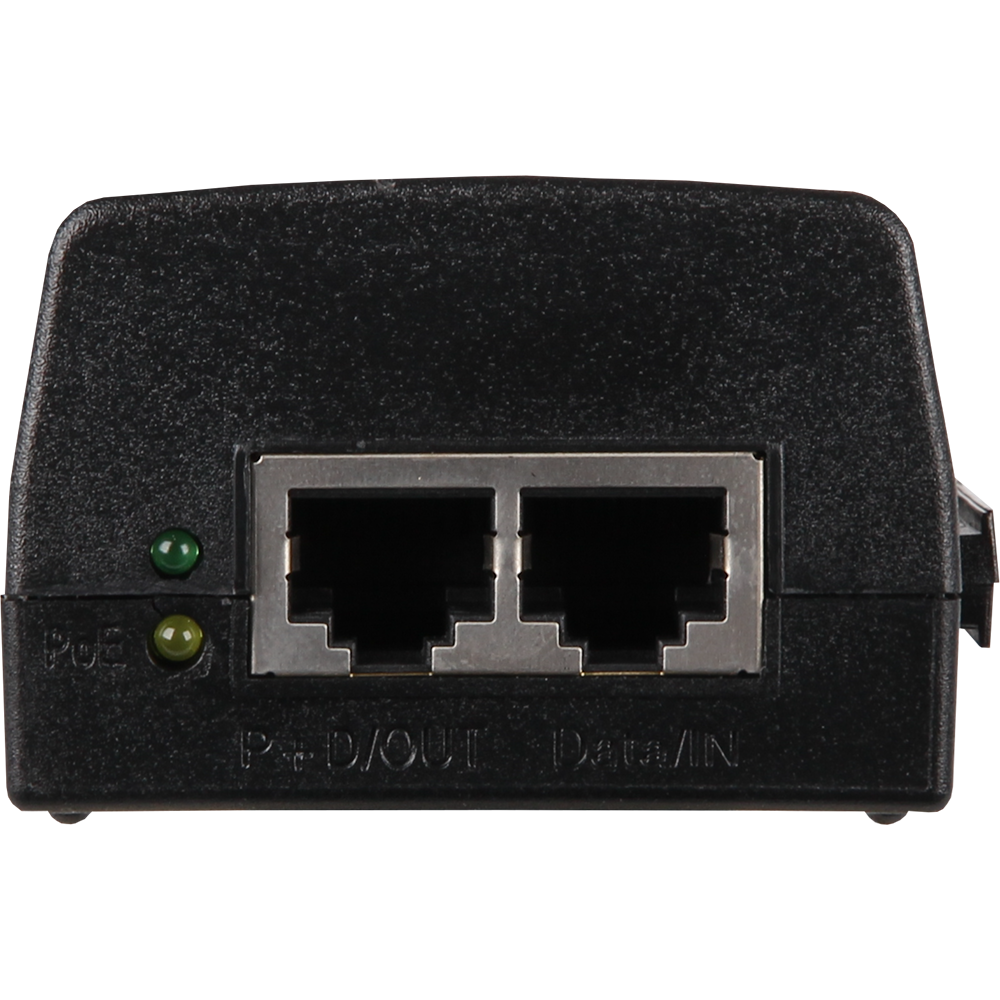

The connection is made via two RJ45 ports (Data/In and P+D/Out), with the power being fed directly into the Ethernet signal. Thanks to a wide input voltage range of 100-240 V AC at 50/60 Hz, the injector can be used worldwide. The robust housing and the reliable temperature range of 0 °C to 55 °C during operation also make it suitable for continuous operation in demanding environments.

Specifications

Special features

Simple power supply via just one cable,
Full gigabit performance for fast connections,
Can be used worldwide thanks to wide voltage range,
Powerful with 48 V output,
Compact & robust for professional use,
Quick to integrate via 2 RJ45 ports,
Ideal for reliable continuous operation

Function

Allows network-capable devices to be powered via an Ethernet cable

Transmission rate

10/100/1000 Mbps

Standard

IEEE802.3af/at

Input Voltage

100 - 240V (50/60Hz)

Output Voltage

48 V

Output Current

0.8 A

Ethernet Ports (RJ45)

2 (P+D/Out & Data/In)

Operating Temperature

0 - 55 °C

Storage Temperature

-20 - 70 °C

Additional information

Dimensions

145 x 60 x 40 mm

Weight

350 g

Items shipped

Power Over Ethernet Injector

EAN

4250236817408

Article No.

SBC-PoE-Inject
