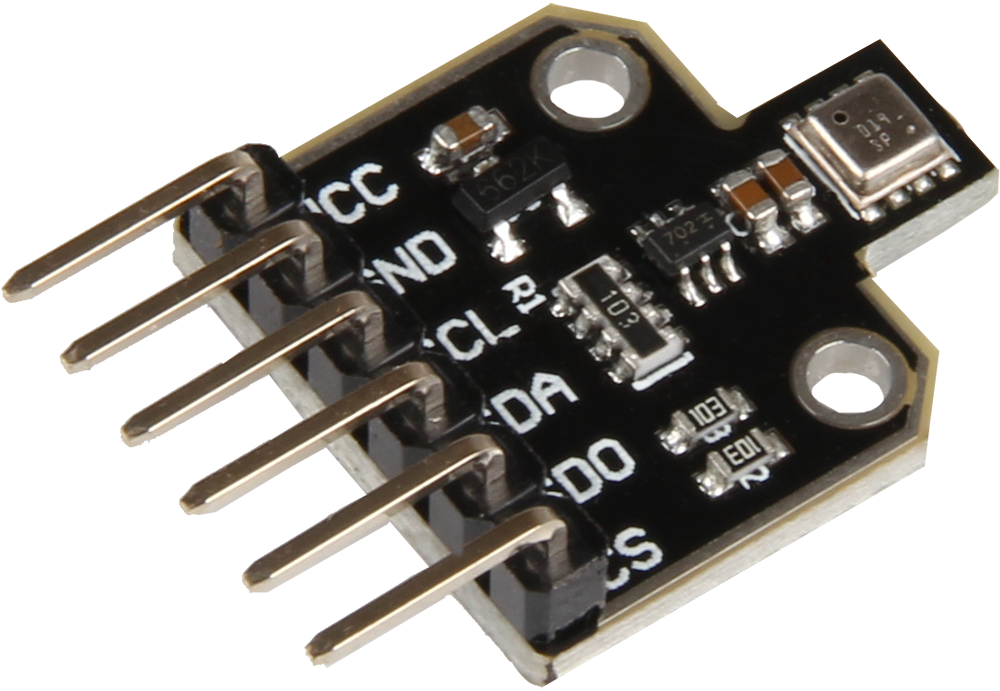

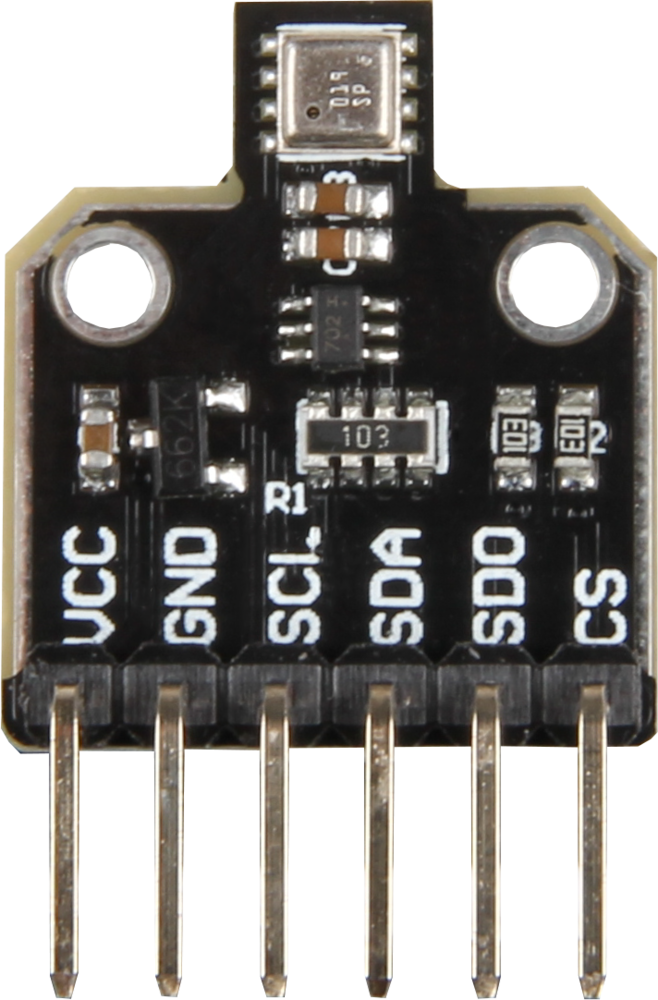

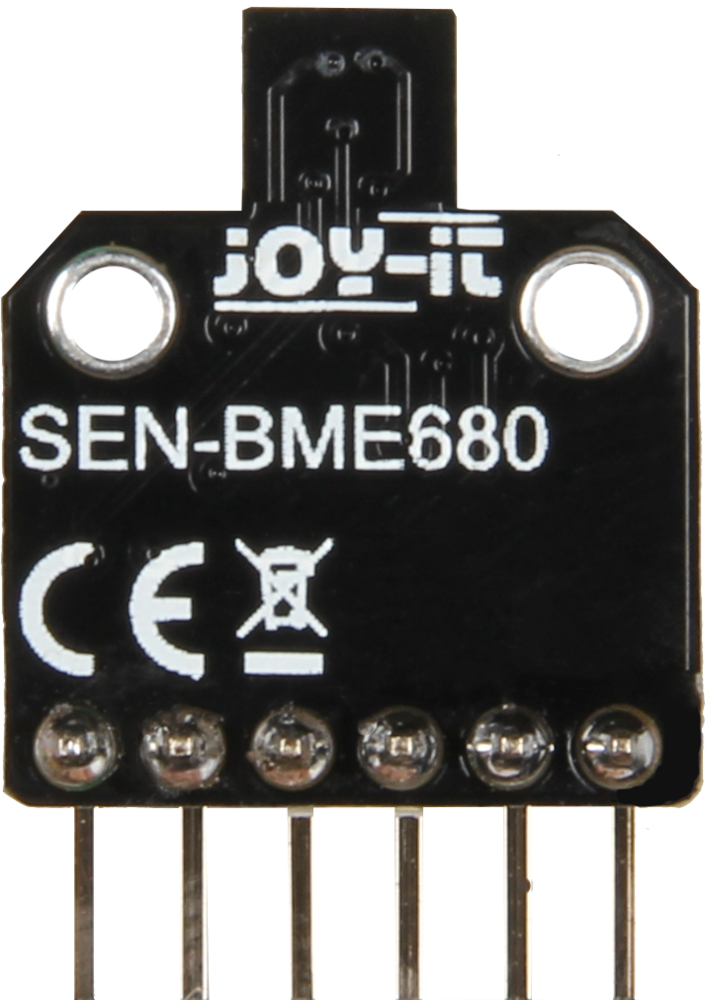

BME680

The BME680 from Bosch Sensortec is the new, compact ambient sensor with integrated sensor technology for humidity, pressure, temperature and air quality.
The I2C and SPI digital interfaces also enable simple and fast readout of the measured values.

Specifications

Digital Interfaces

I2C, SPI

Operating Voltage

3-5 V

Response time humidity sensor

8 s

Accuracy

± 3%

Hysteresis

≤ 1.5%

Pressure range

300 - 1100 hPa

Relative accuracy

± 0.12 hPa

Absolute accuracy

± 1 hPa

Operating range

-40°C - 85°C

Full accuracy temperature sensor

0°C - 65°C

Response time air quality sensor

1 s

Compatible to

Arduino, Raspberry Pi

Additional information

Dimensions

30 x 14 x 10 mm

Weight

10 g

Items shipped

BME680 sensor

EAN

4250236817972

Article No.

SEN-BME680
