CCS811 Sensor

CCS811 Sensor

CCS811 Sensor

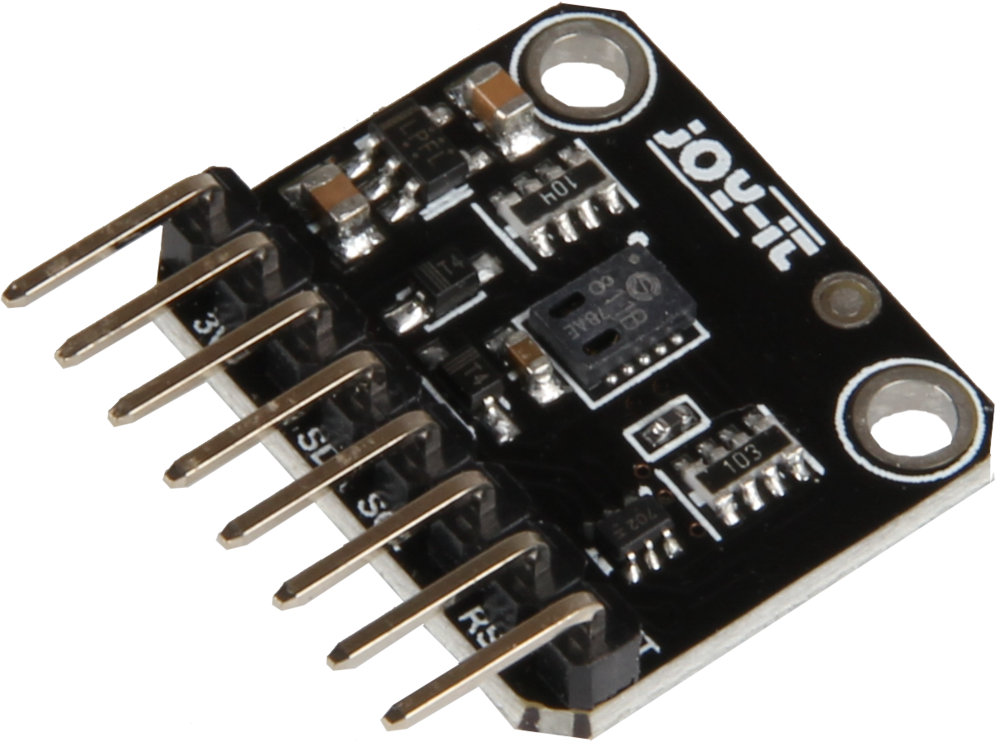

The CCS811 is a gas sensor that monitors the air quality and can measure a large number of volatile organic compounds (VOCs).

The sensor data can be converted to a total volatile organic compound (TVOC) or carbon dioxide equivalent (eCO2) level.

The module has a metal oxide (MOX) sensor and also the option to connect a NTC for temperature measurement.

NOTE: A single burn-in of 48 hours and a warm-up time of 20 minutes is recommended before valid data can be expected.

Specifications

Specifications

Digital Interface

I2C

Operating Voltage

3-5 V

Total Volatile Organic Compounds (TVOCs)

0 - 1187 ppb

Equivalent CO2-Level (eCO2)

400 - 8192 ppm

Other pollutants

Metal Oxides (MOX)

Additional connections

Optional NTC for temperature measurement

Mode 0

Idle incl. Low Current Mode

Mode 1

Constant power mode 1 measurement per sec.

Mode 2

Pulse Heating Mode 1 measurement/10 sec.

Mode 3

Low Power Pulse Mode 1 measurement/60 sec.

Mode 4

Constant Power Mode 1 measurement/250 ms

Compatible to

Arduino, Raspberry Pi

Dimensions

21 x 18 x 3 mm

Weight

1.2 g

Items Shipped

CCS811 Sensor

EAN

4250236817989

Article No.

SEN-CCS811V1
