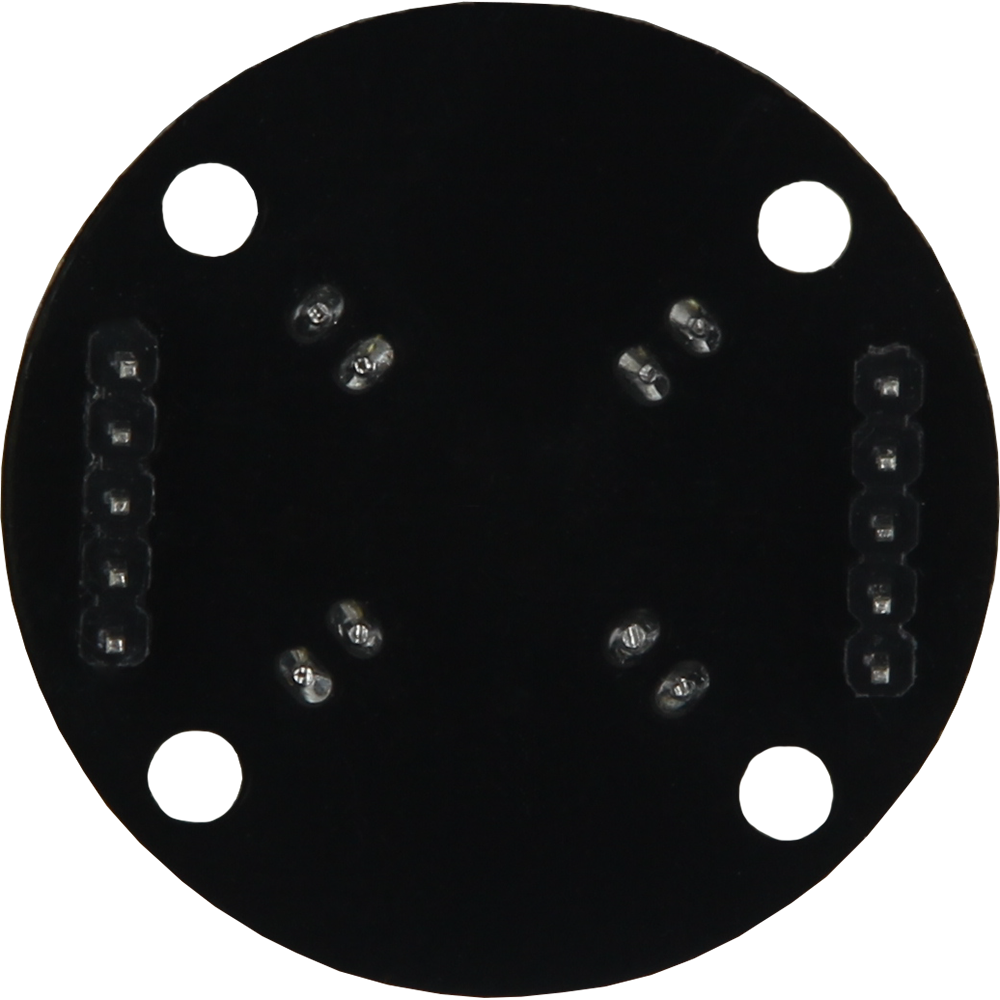

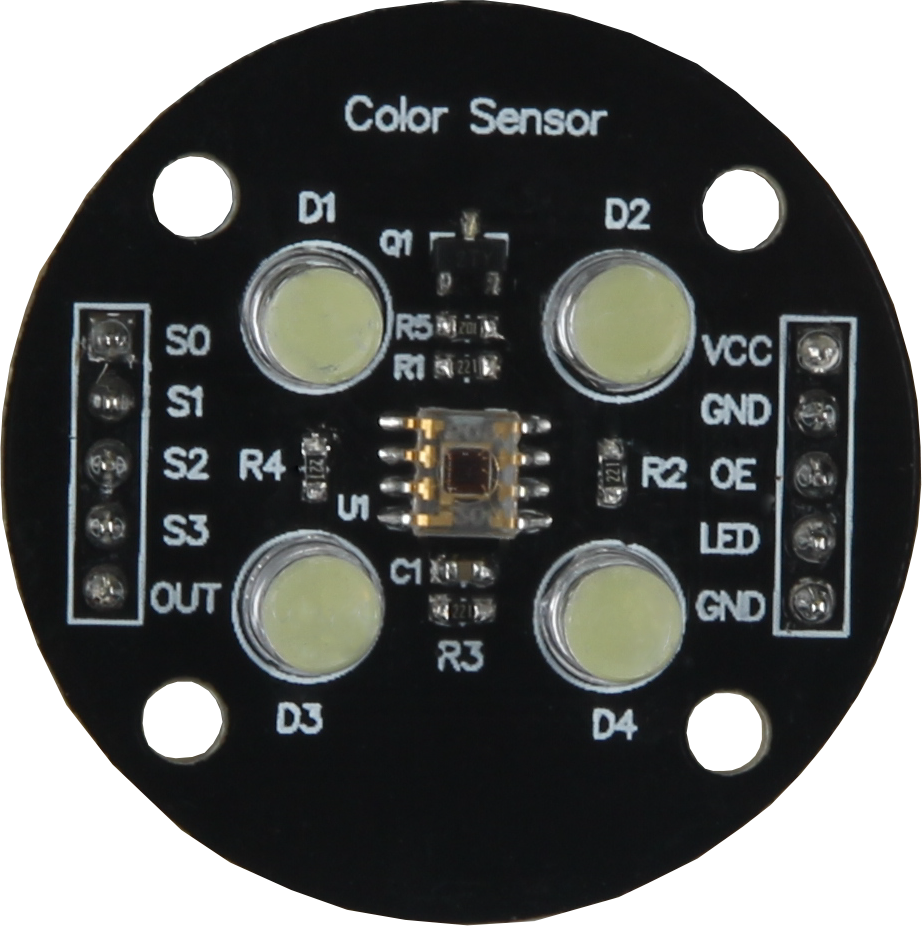

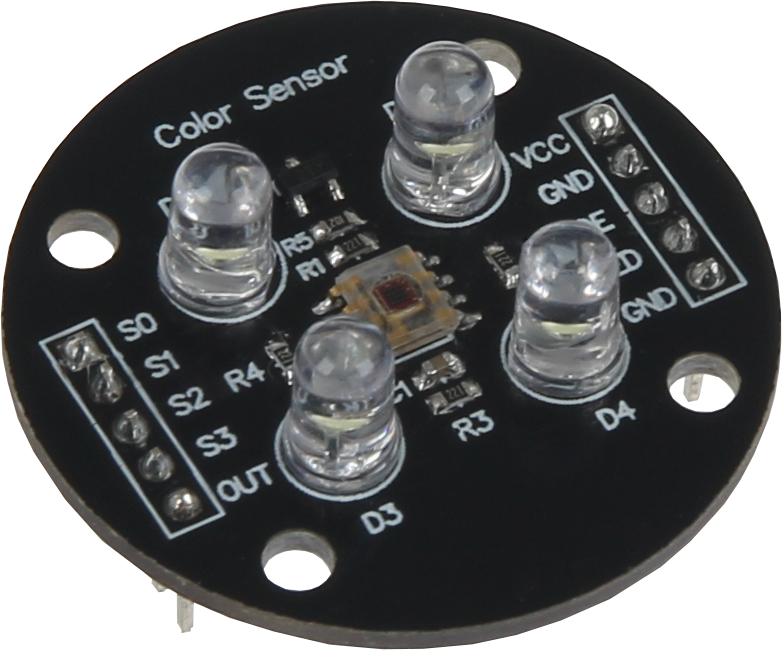

Color sensor TCS3200

With this module it is possible to determine the composition (red, green and blue content) of colors. The module displays a signal on its outputs, which frequency is set in relation to the intensity of the measured color. This signal can be converted into a color value by microcontrollers (with real-time timers).

Specifications

Model

TCS3200 Color Sensor

Input Voltage

3 V - 5 V

Logic level

3 V - 5 V (depending on VCC)

Chip

TCS3200

Interfaces

2 inputs to control the measurement calibration, 2 inputs to control the filters on the sensor (red, green, blue, clear)

Special Features

Four white LEDs for illumination of the measurement

Compatible to

Arduino, Raspberry Pi, Micro:bit

Height

19 mm

Additional information

Dimensions

Ø 37mm

Weight

6 g

Items shipped

TCS3200 Color Sensor

EAN

4250236813172

Article No.

SEN-Color
