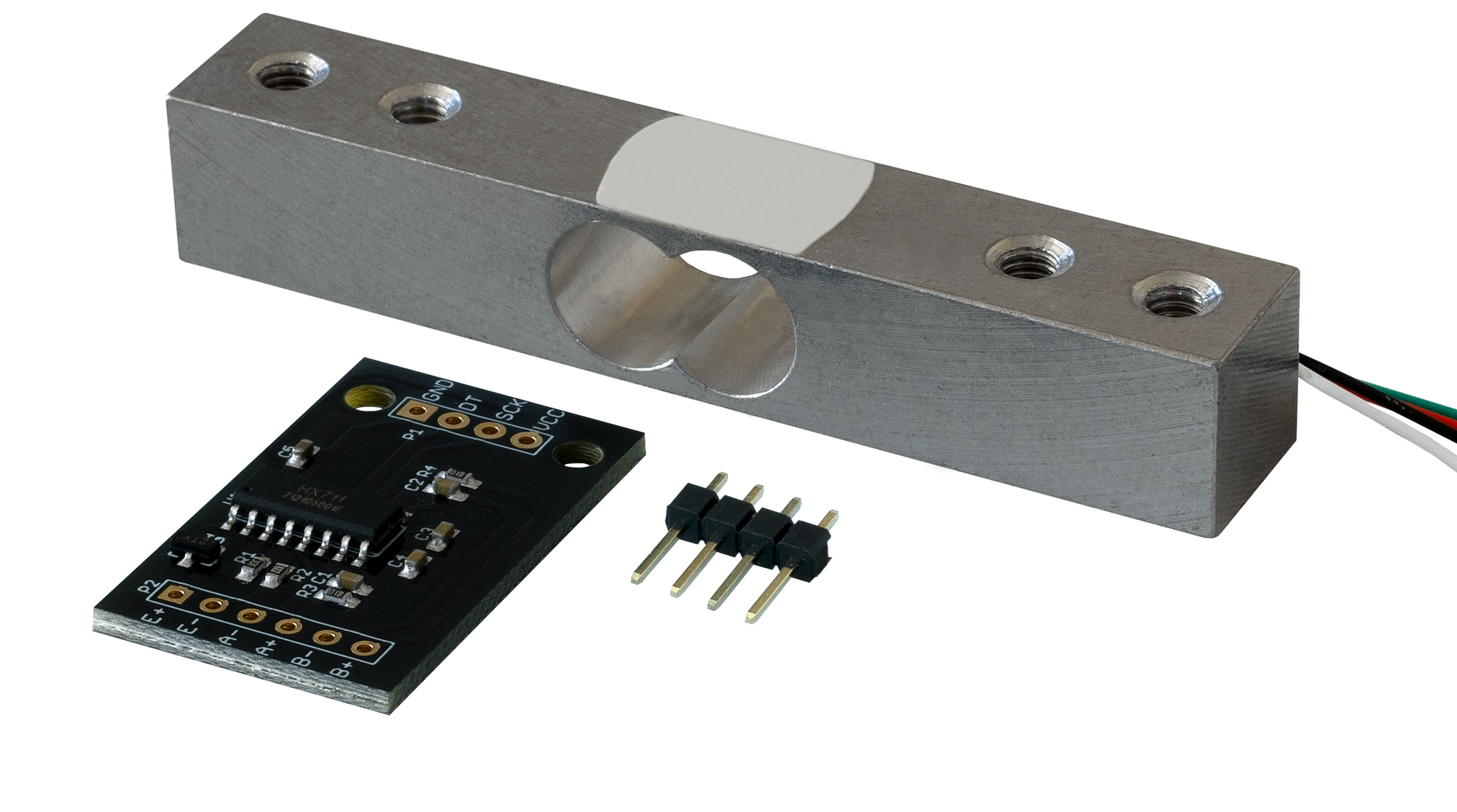

5 kg load cell
With this load cell and amplifier board, you can build your own scale in conjunc-tion with a microcontroller or single-board computer.

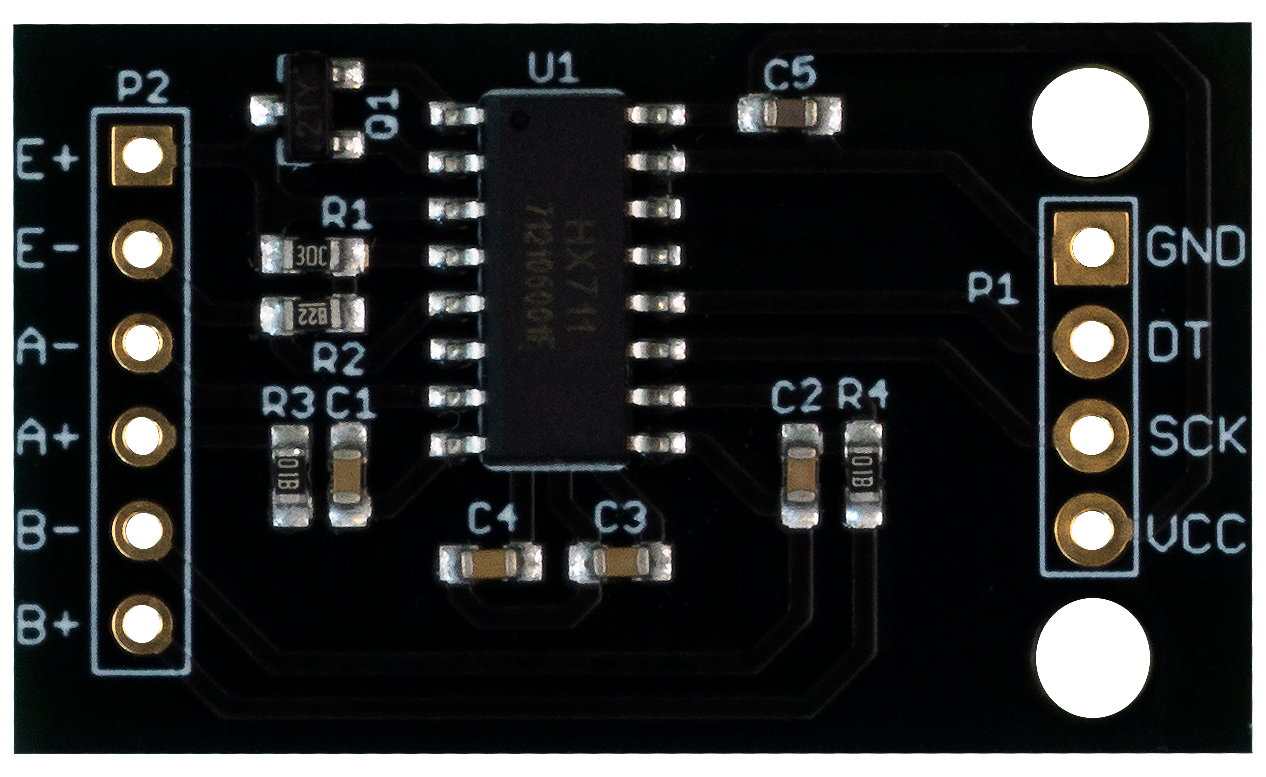

The amplifier board contains an HX711 24 bit A/D converter to convert the ana-logue signal of the load cell into a weight with high accuracy.
Due to its high popularity, there are many application examples online for this converter.
Specifications
Model
HX711-05
Special Features
Integrated 24 bit A/D-converter
Measuring range
Up to 5 kg
Load cell accuracy
±0,02% F.S
Supply voltage
2,6 V ~ 5,25 V
Current consumption
< 1,5 mA
Interface
Serial; 2-wire
Dimensions PCB
34,2 x 20 x 3 mm
Dimensions load cell
75 x 15 x 14,2 mm
Cable length
ca. 25 cm
Additional information
Weight
33,5 g
EAN
4250236830520
Article No.
SEN-HX711-05R2
