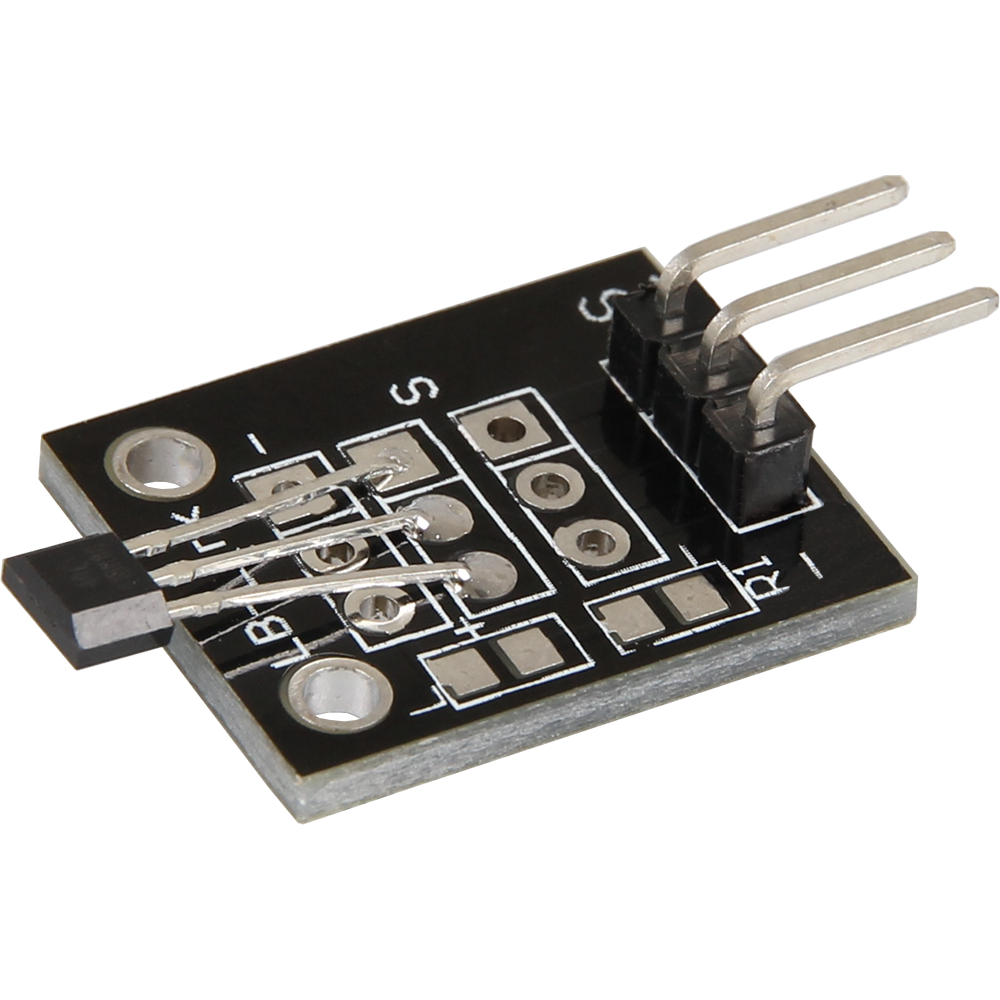

KY-035 Bihor magnet sensor

The Bihor Magnet Sensor KY-035 is an easy-tointegrate module for the analog detection of magnetic fields. Based on the AH49E Hall-effect chip, the sensor provides a voltage-controlled output signature that is proportional to the strength of the detected magnetic field. This makes it ideal for applications in position or motion detection, magnetic switches, sensor prototypes or for measuring magnetic changes in the environment.

With an operating voltage of 3.3 V - 5 V, the module is fully compatible with common microcontroller platforms such as Arduino, Raspberry Pi or ESP32. The compact design of 15 × 30 × 7 mm enables use even in confined projects or mobile setups.

The sensor is easy to connect and evaluate and is particularly suitable for use in DIY, educational or experimental projects. The ready-to-use sensor module is included in the scope of delivery.

Attention: Analog signal

This analogue sensor can also be operated with a Raspberry PI with the help of our ADC converter (COM-KY053ADC).

To get more information for this module, please use the link ("further information") under Downloads.

Specifications

Special features

Analog output proportional to magnetic field strength,
Integrated AH49E hall effect sensor,
Operation with 5 V - ideal for microcontrollers,
Compact design,
Easy to integrate into microcontroller projects,
Fully assembled module - ready for immediate use

Function

The sensor outputs an analog voltage signal indicating the strength of the magnetic field

Chipset

AH49E

Functional area

3,3 V - 5 V

Power consumption

3,5 mA @ 5 V

Operating temperature range

-40 °C - 85 °C

Additional information

Dimensions

15 x 30 x 7 mm

Weight

1 g

Items shipped

SEN-KY053BM

EAN

4250236816852

Article No.

SEN-KY035BM

Recommended products

KY-053 Analog-Digital Converter

4 Channel 16-Bit ADC with I2C interface

KY-003 Hall effect magnet sensor

Digital hall effect magnet sensor with A3144 chipset

KY-024 Linear magnetic hall sensor

Analog magnetic hall sensor with LM393 & 49E chipset

Jumper-cable

with a different number of pins and in different lengths
