Motion sensor MPU6050

Motion sensor MPU6050

Motion sensor MPU6050

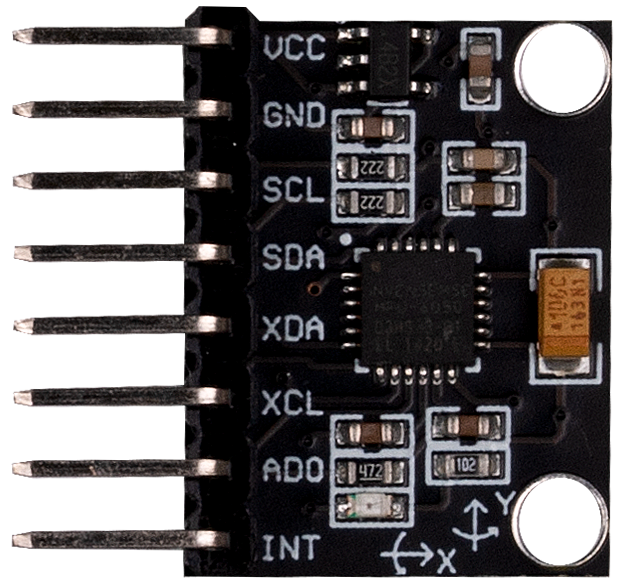

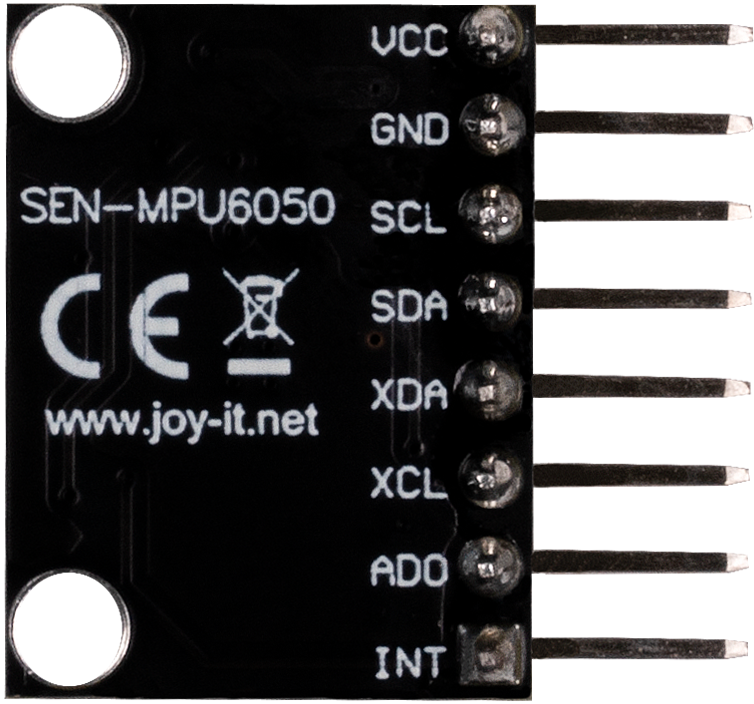

The SEN-MPU6050 has got 3 gyroskop and accelerometer axes and thus 6 Degrees of Freedom and is able to measure 16'384 LSB/g and 131 LSB/dps. It has 8 Pins with a spacing of 2.54 mm and an I²C interface.

Also, a 16-Bit AD Converter and a Low-Dropout regulation is built in.

Specifications

Specifications

Module chip

MPU6050

Voltage Supply

3.3 - 5 V DC

Degrees of Freedom

6 x

Interface

I²C

Built-in Chip

16-bit AD converter

Pins

8 x

Pin spacing

2.54 mm

Accelerator measurement range

± 2, ± 4, ± 8, ± 16 g

Accelerator sensitivity

16384 LSB/g ±2g, 8192 LSB/g ± 4g, 4096 LSB/g ± 4g, 2048LSB/g ±16g

Gyroscope measurement range

± 250. ± 500,± 1000, ± 2000 °/s

Gyroscoep sensitivity

131 LSB/dps ± 250 dps, 65,5 LBS/dps ± 500 dps, 32,8 LBS/dps ± 1000 dps, 16,4 LBS/dps ± 2000 dps

Dimensions

25 x 20 x 7 mm

Weight

1 g

Items Shipped

Sensor MPU6050

EAN

4250236819136

Article No.

SEN-MPU6050
