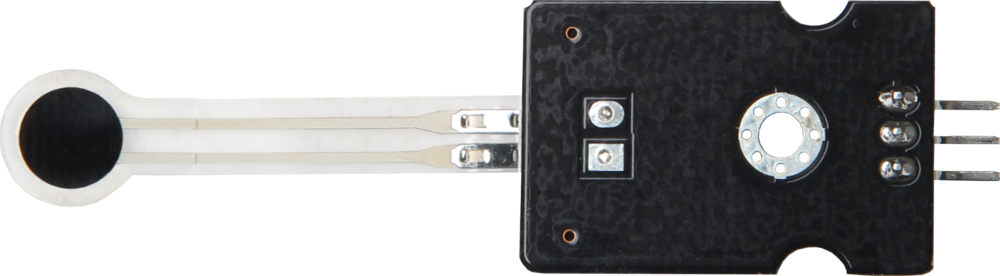

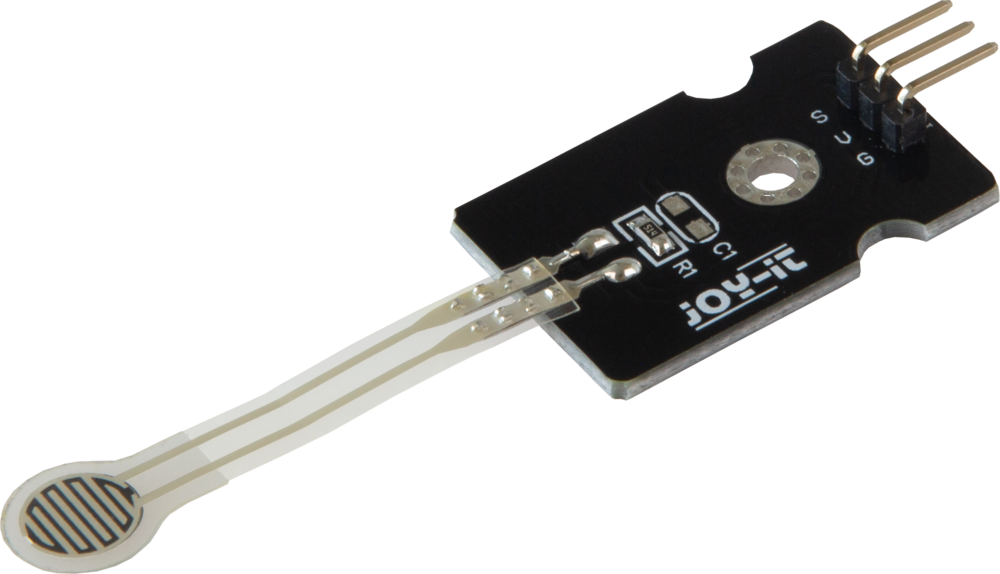

Pressure sensor up to 20 Kg

This pressure sensor works by means of analog resistance detection, when external pressure is applied to the sensor, the resistance and thus the voltage of the analog signal changes. The sensor is highly sensitive, flexible and the sensor strip is waterproof.

Specifications

Measurement range

0 - 20 kilograms

Thickness of thin-film strip

< 0,25 mm

Compatible with

Raspberry Pi( with AD-converter ), Arduino, et

Special features

High sensitivity and flexibility, water-proof sensor strip, no electrostatic discharge or magnetic interference

Output of measurement

Analog voltage value

Response point of weight

300 g - 350 g

Accuracy

± 2,5%

Response time

< 1 ms

Recovery time

< 15 ms

Pins:

+: Power Supply 3.3-5V
I: Ground
S: Analog Output

Operating temperature

-20 - 60 ° C

Durability

Approx. 1,000,000 measurements

Additional information

Dimensions

75 x 20 x 9 mm

Items shipped

SEN-Pressure20

Article No.

SEN-Pressure20
