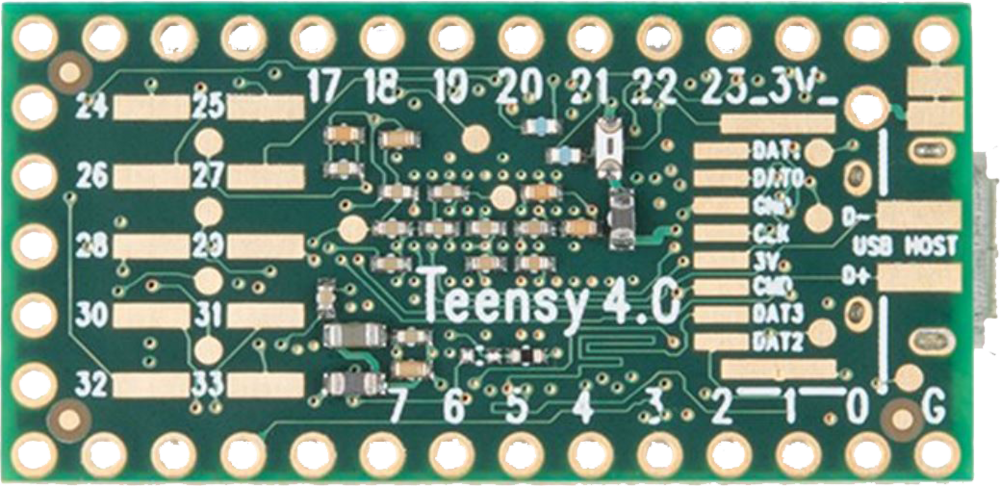

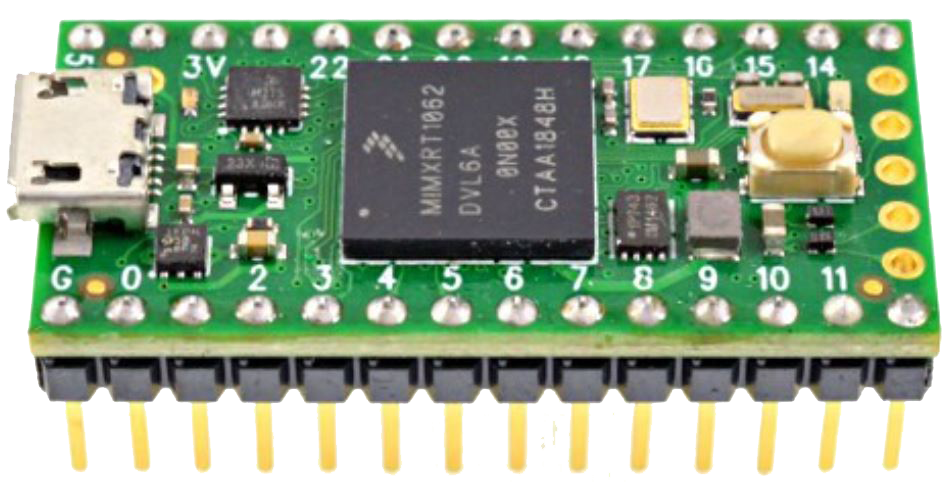

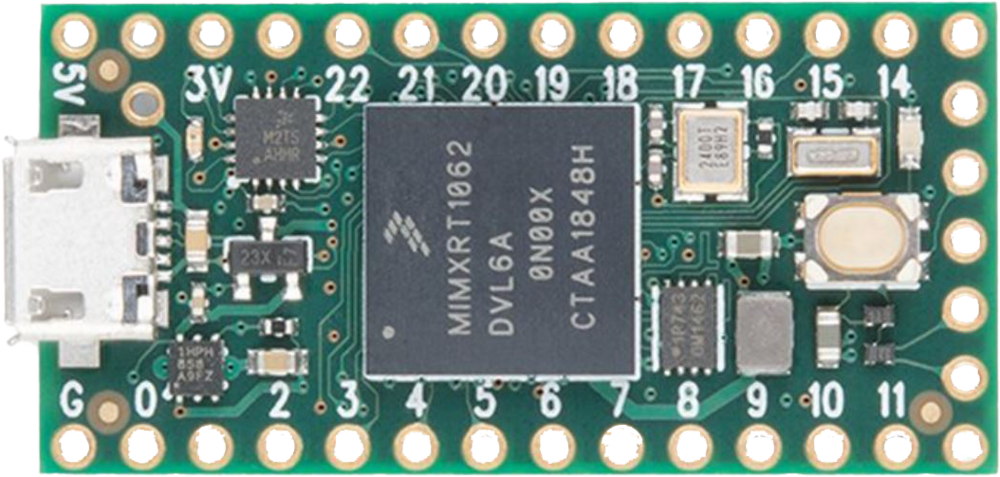

Teensy 4.0
The Teensy 4.0 is a high-performance microcontroller development board characterized by its compact size and immense computing power. Equipped with an ARM Cortex-M7 processor running at an impressive 600 MHz, the Teensy 4.0 offers exceptional processing speed for complex tasks.
Despite its small size, this board has numerous I/O options, including digital and analog pins, PWM, I2C, SPI and UART, making it ideal for a variety of DIY projects and professional applications. With its support for various programming languages and development environments, such as Arduino, the Teensy 4.0 is a versatile and powerful platform for hobbyists and professionals alike.
Its ability to handle complex tasks such as audio processing, real-time data processing and control of sophisticated systems makes it a top choice for innovative projects and demanding applications.
Specifications
Processor
ARM Cortex-M7 @ 600 MHz
Flash memory
2048 kB
Microcontroller Chip
NXP iMXRT 1062
RAM
1024 kB (512 kB tightly coupled)
EEPROM
1 kB
USB-Ports
2x with 480 MBit/s
CAN Bus
3x (1x with CAN FD)
Digital Audio
2x I2S
SDIO
1x 4 bit native SD
SPI
3x (all with 16 word FIFO)
I2C
3x I2C (all with 4 byte FIFO)
GPIO
32x GPIO DMA channels
PWM
31x PWM pins
Digital pins
40x (all interrupt-capable)
Analog pins
14x (2x ADC on chip)
Additional features
Cryptographic acceleration,
random generator,
RTC for date & time,
Programmable FlexIO,
Pixel processing pipeline,
Peripheral cross-triggering,
Power On/Off management
Additional information
Dimensions
36 x 18 mm
Weight
4
Items shipped
Teensy 4.0
Article No.
Teensy40
