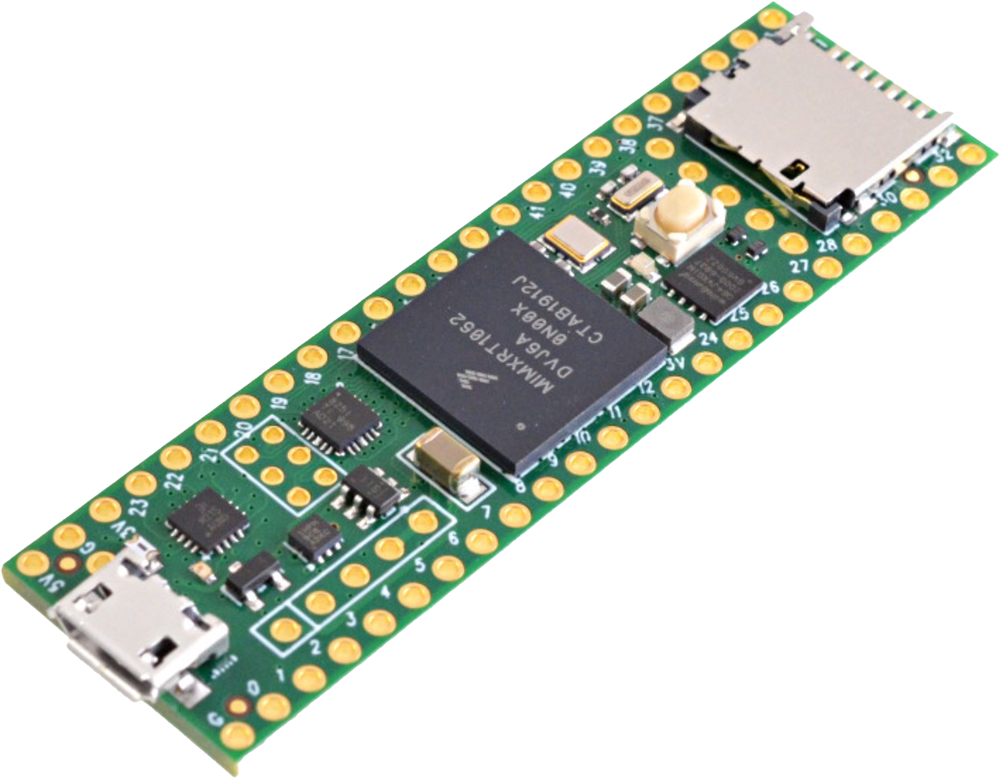

Teensy 4.1

The Teensy 4.1 is a high-performance microcontroller, equipped with a 600 MHz ARM Cortex-M7 processor, which is characterized by its enormous computing power and versatility. This version has an integrated Ethernet port for reliable and fast network connections, ideal for IoT and industrial applications. In addition, the lock function offers the option of permanently protecting the firmware against readout and unauthorized access, which makes the Teensy 4.1 particularly suitable for safety-critical projects and the protection of intellectual property.

For more information, you can visit the manufacturer‘s website: https://www.pjrc.com/store/teensy41.html

Specifications

Processor

IMXRT1062DVJ6 Cortex-M7

FPU

32 & 64 bit

Rated Speed

600 MHz

Flash memory

7936 kB

Bandwidth

66 MB/sec

Cache

65536 B

RAM

1024 kB

EEPROM

1080 B (emu)

Ethernet

10 / 100 Mbit DP83825 PHY

Security

Lock function for permanent firmware protection

Supply voltage

3.6 - 5.5 V

Logic Level

3.3 V

Digital pins

55

Analog inputs

18

max current per IO pin

10 mA

Communication

USB, Serial, SPI, I2C, CAN, Digital Audio IN/OUT, SD Card, Ethernet

Additional information

Weight

15

EAN

4250236829395

Article No.

Teensy41-L
