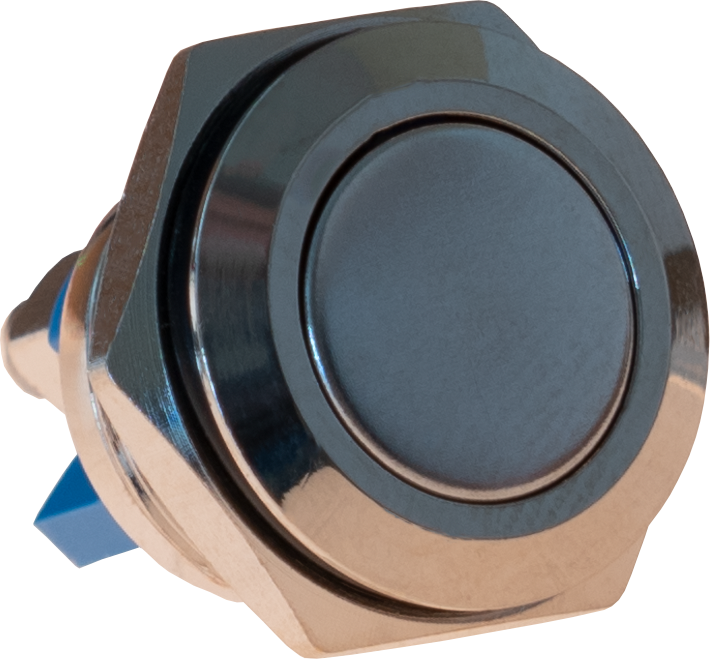

Momentary pushbutton 2A

Our momentary steel pushbutton con-vinces with high-quality materials, protection class, and ergonomics. It is made of stainless steel and meets the protection class IP60 (dust and water). Due to the design, wide temperature range, and durability, our steel probe is suitable for many applications.

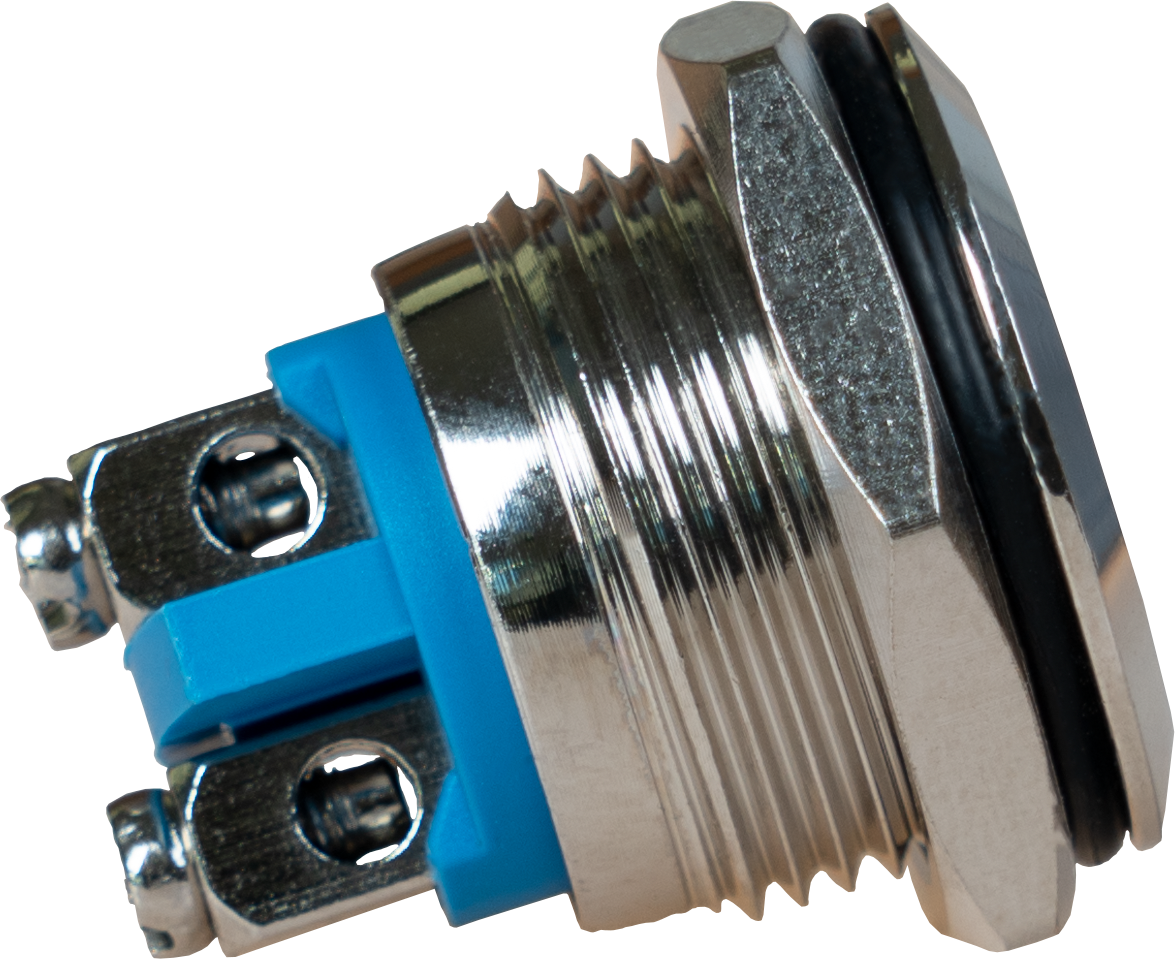

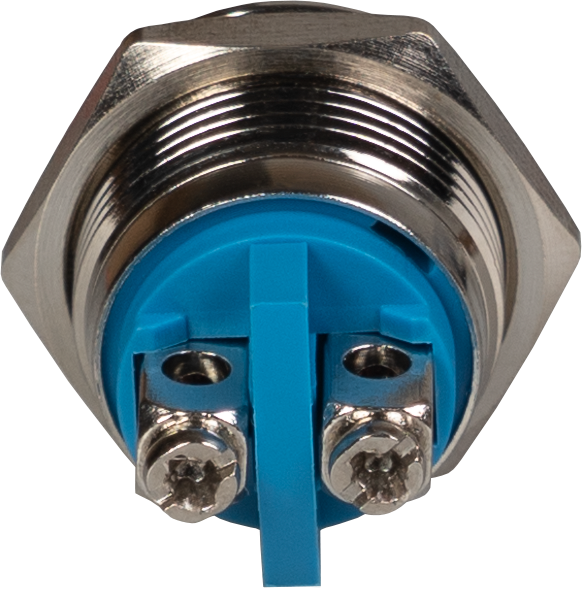

Due to the design of the surface, there are no sharp edges. The connection through a screw terminal allows a quick and easy installation in your project.

Specifications

Switch current

2 A

Key and shell material

Stainless steel

Pin material

Aluminum oxide,copper plated

Key depth

2.5 mm

Operation mode

Momentary

Protection level

IP60

Special feature

Connection via screw terminal

Rated load

2 A / 36 V DC (resistive)

Connection

2x NO

Insulation resistance

≥ 1000 MΩ

Breakdown voltage

2500 V AC min.

Contact resistance

≤ 50 mΩ

Nut torque

5 - 14 Nm

Connector material

Flame retardant PA66

Environment temperature

-20 to 55°C

Additional information

Dimensions

Ø 18 x 21.2 mm

Weight

14 g

Items shipped

Button, sealing ring, nut

EAN

4250236825069

Article No.

Button16C-01
