JDS2915

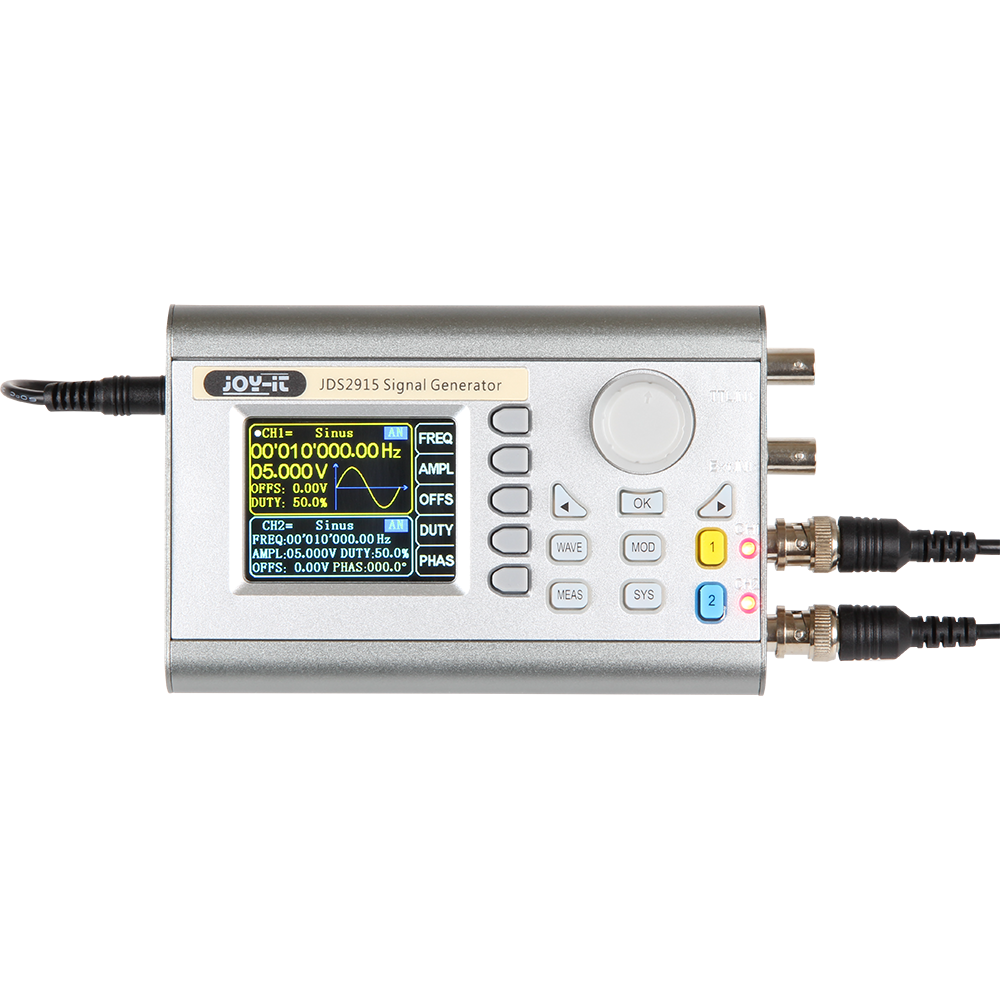

The JT-JDS2915 is a 2 channel signal generator which produces signals up to 15 MHz.

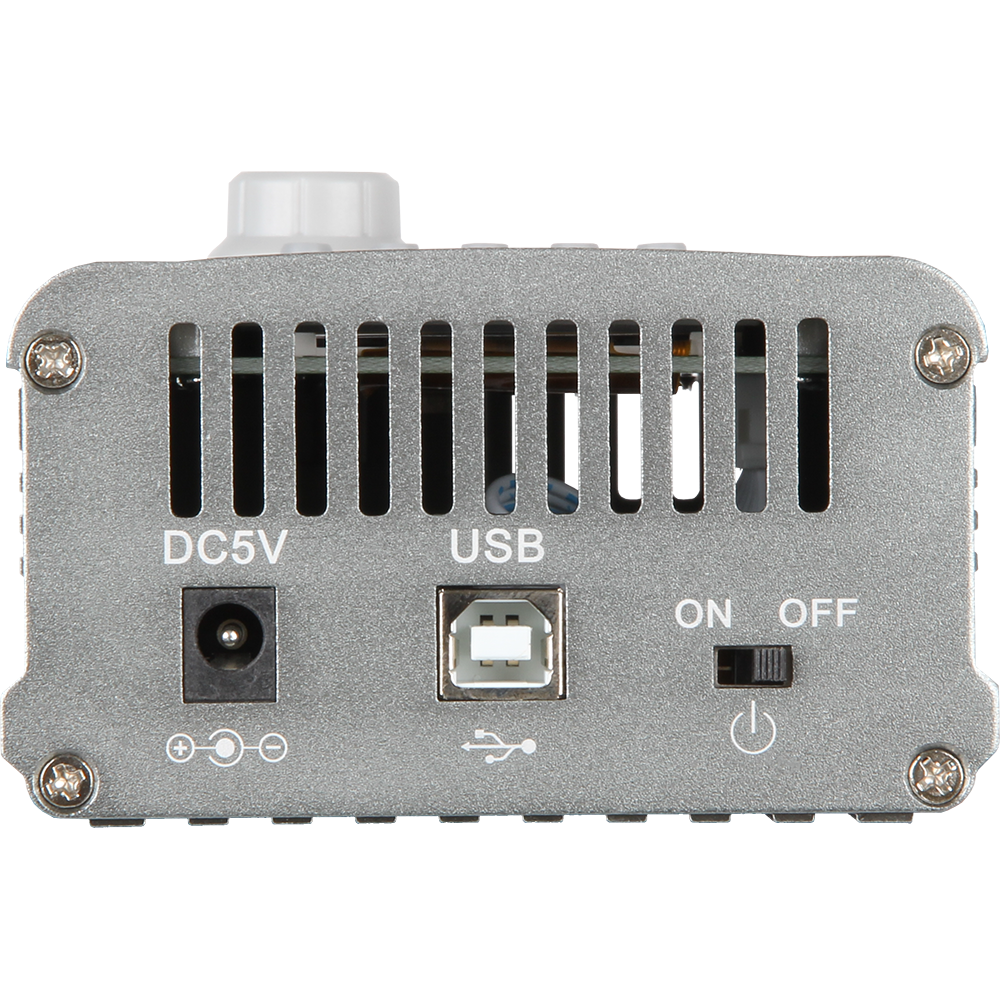

The JT-JDS2915 is compact and able to be used on the go with an optionally available power bank.To operate the signal generator with a power bank, you need an additional USB to DC connection cable ( 5.5mm hollow plug ).

It is in different areas of measuremet technology useable because of its different curve shapes like sine, square, triangle, pulse, half-wave and others.

Additionally, it is an 1 channel frequency allocation integrated. With its frequency accuracy of ±20ppm and its stability of ±1ppm/3h, it offers a perfect signal quality and flexibility.

Through its 2,4“ TFT-Colordisplay it has the operator friendliness guaranteed which reveals most diverse areas of application.

Important: The Powerbank and the USB-DC cable are not included. You must purchase these separately from your trusted dealer.

Specifications

Channels

2 Channel generator, 1 Channel frequency meter

Frequency range

Sine: 0-15 MHz; square, triangle: 0-15 MHz; TTL, pulse: 0-6 MHz

Signal forms

Sine, square, triangle, pulse, half / solid wave, exponential rise/ fall, etc.

Measuring Range Frequency Counter

frequency meter: 1-100 MHz

Frequency accuracy

± 20 ppm

Frequency stability

± 1 Ppm/3h

Sampling rate

266 MSa/s

Display

2,4 inch TFT color LCD

Vertical shaft resolution

14 bits

Amplitude range

< 10 MHz : 0 - 20 Vpp; > 10 MHz : 0 - 10 Vpp

Amplitude resolution

1 mV

Amplitude stability

± 5%/5h

Amplitude flatness

<10 MHz: ± 5 %; >10 MHz: ± 10 %

Impedance of output

50 Ω ± 10 %

Distortion factor

<0.8%(20Hz-20KHz, 0dBm)

Additional information

Dimensions

145 x 95 x 55 mm

Weight

680 g

Items shipped

Generator, BNC signal terminals, power supply

EAN

4250236817071

Article No.

JT-JDS2915

Recommended products

JDS6600

Signalgenerator and Frequency-Counter

JDS6600-Lite

Signalgenerator and frequency counter
