JDS2960
The JT-JDS2960 is a 2 channel signal generator which produces signals up to 60 MHz.
The JT-JDS2960 is compact and able to be used on the go with an optionally available power bank.
It is in different areas of measuremet technology useable because of its different curve shapes like sine, square, triangle, pulse, half-wave and others.
Additionally, it is an 1 channel frequency allocation integrated. With its frequency accuracy of ±20ppm and its stability of ±1ppm/3h, it offers a perfect signal quality and flexibility.
Through its 2,4“ TFT-Colordisplay it has the operator friendliness guaranteed which reveals most diverse areas of application.
Specifications
Channels
2 Channel generator, 1 Channel frequency meter
Frequency range
Sine: 0-60 MHz; square, triangle: 0-25 MHz; TTL, pulse: 0-6 MHz
Signal forms
Sine, square, triangle, pulse, half / solid wave, exponential rise/ fall, etc.
Measuring Range Frequency Counter
frequency meter: 1-100 MHz
Frequency accuracy
± 20 ppm
Frequency stability
± 1 Ppm/3h
Sampling rate
266 MSa/s
Display
2,4 inch TFT color LCD
Vertical shaft resolution
14 bits
Amplitude range
< 10 MHz : 0 - 20 Vpp; > 10 MHz : 0 - 10 Vpp
Amplitude resolution
1 mV
Amplitude stability
± 5%/5h
Amplitude flatness
<10 MHz: ± 5 %; >10 MHz: ± 10 %
Impedance of output
50 Ω ± 10 %
Distortion factor
<0.8%(20Hz-20KHz, 0dBm)
Additional information
Dimensions
145 x 95 x 55 mm
Weight
680 g

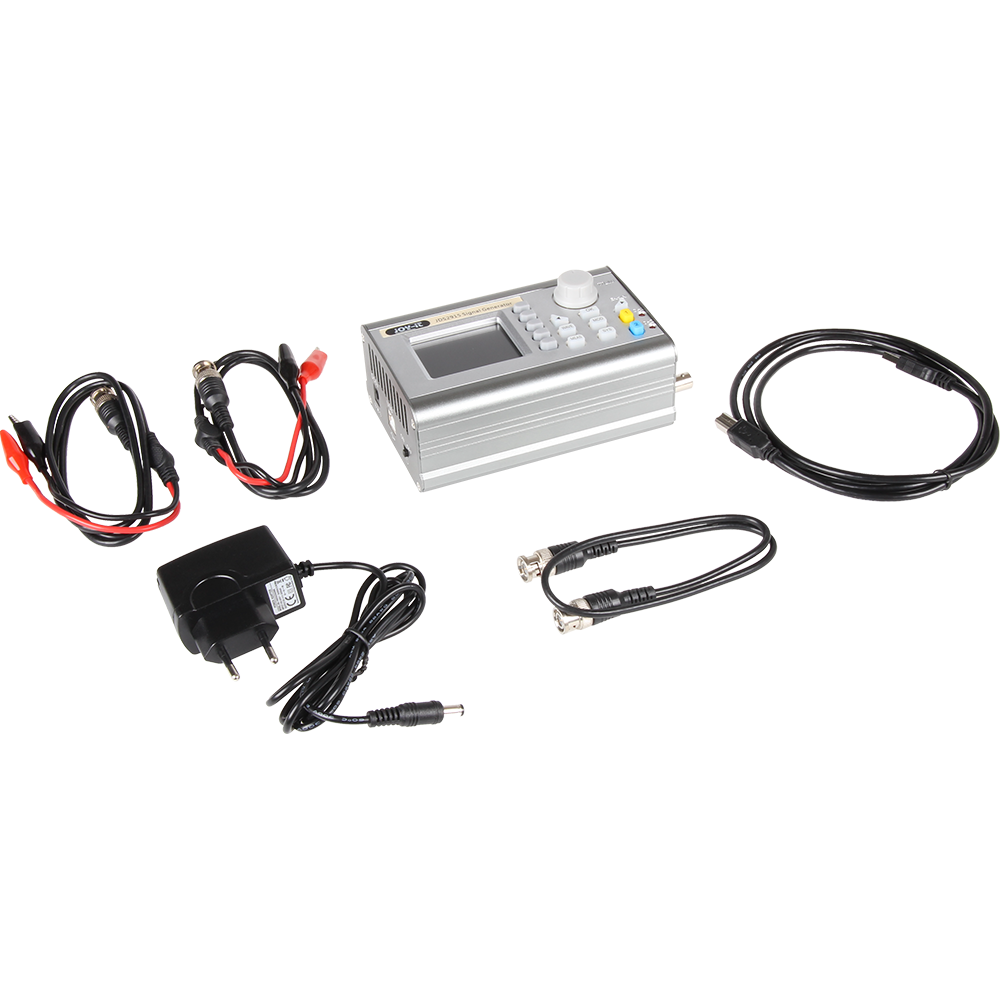

Items shipped
Generator, BNC signal terminals, power supply
Article No.
JT-JDS2960
