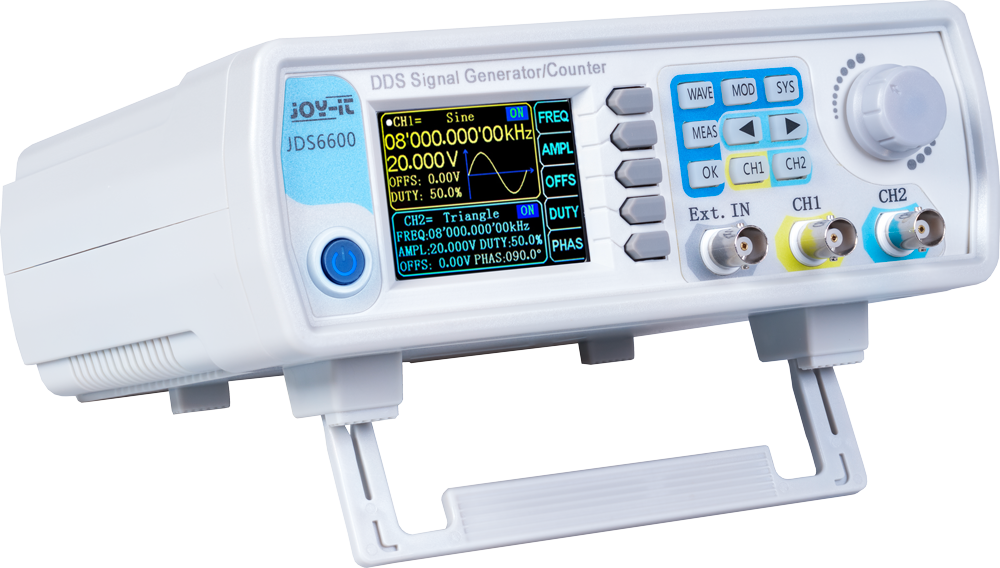

JDS6600

The JT-JDS6600 is a 2 channel signal generator which produces signals up to 60 MHz.

It is in different areas of measuremet technology useable because of its different curve shapes like sine, square, triangle, pulse, half-wave and others.

Additionally, it is an 1 channel frequency allocation integrated. With its frequency accuracy of ±20ppm and its stability of ±1ppm/3h, it offers a perfect signal quality and flexibility.

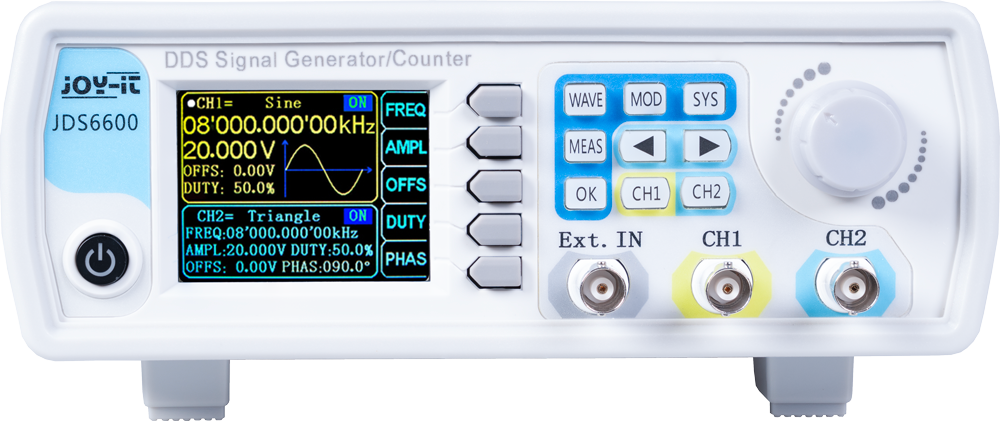

Through its 2,4“ TFT-Colordisplay it has the operator friendliness guaranteed which reveals most diverse areas of application.

Specifications

Features

2 Channel Signalgenerator; Signal-Forms: Sine, square, triangle, pulse, half-wave, noise, Lorenz pulse, exponential rise/fall, CMOS and more; 1 Channel Frequency-Counter

Frequency-Range (Sine)

0 - 60MHz

Frequency-Range (Square, Triangle)

0 - 15MHz

Frequency-Range (PWM, CMOS, TTL, Arbitrary)

0 - 6MHz

Measuring range Frequency counter

0 - 100Mhz

Min. Frequency Resolution

0,01μHz

Frequency Accuaracy

+-20ppm

Frequency Stability

+-1ppm/3h

Harmonic distortion

< 1% (20Hz~20kHz,0dBm)

Display Mode

TFT LCD Color display

Display Size

2,4“

Operating temperature and humidity

Temperature: 0 - 40°C / Humidity: <80%

Additional information

Dimensions

194 x 178 x 69 mm

Weight

768 g

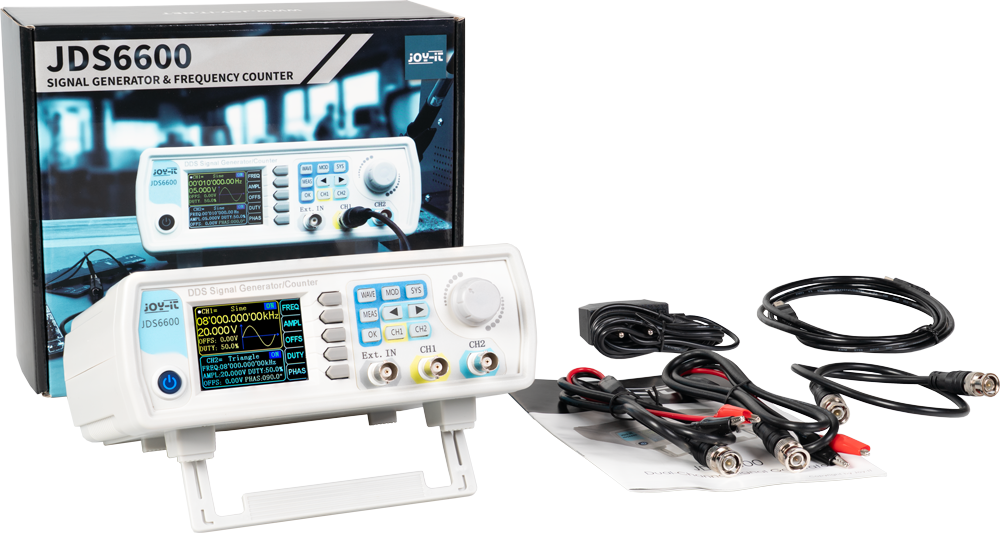

Items shipped

Signalgenerator, 2x BNC Signal terminals, power supply

EAN

4250236817811

Article No.

JT-JDS6600
