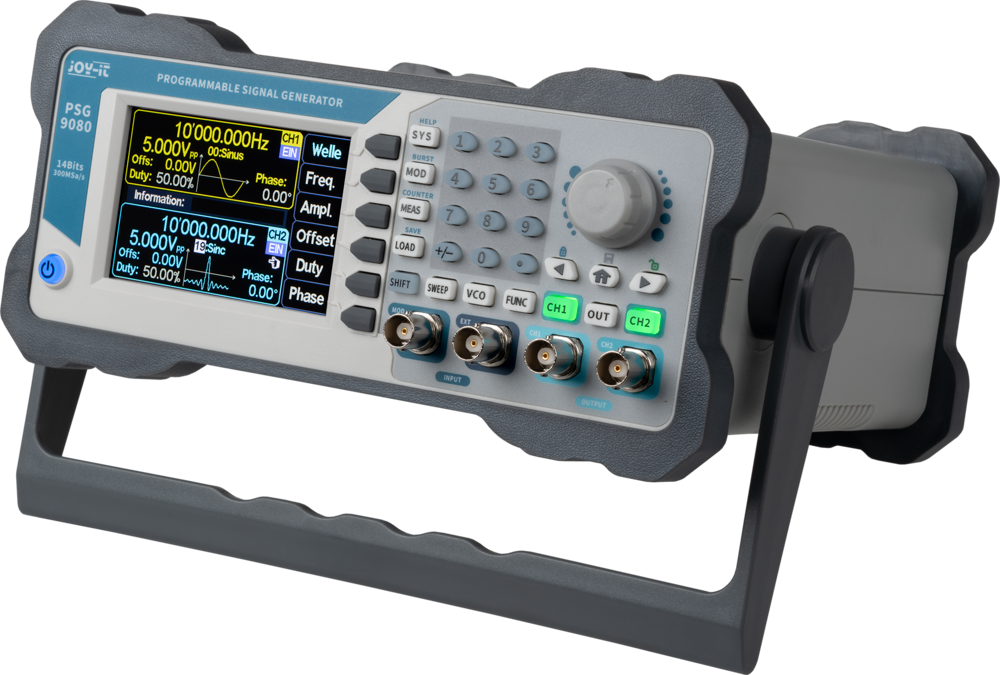

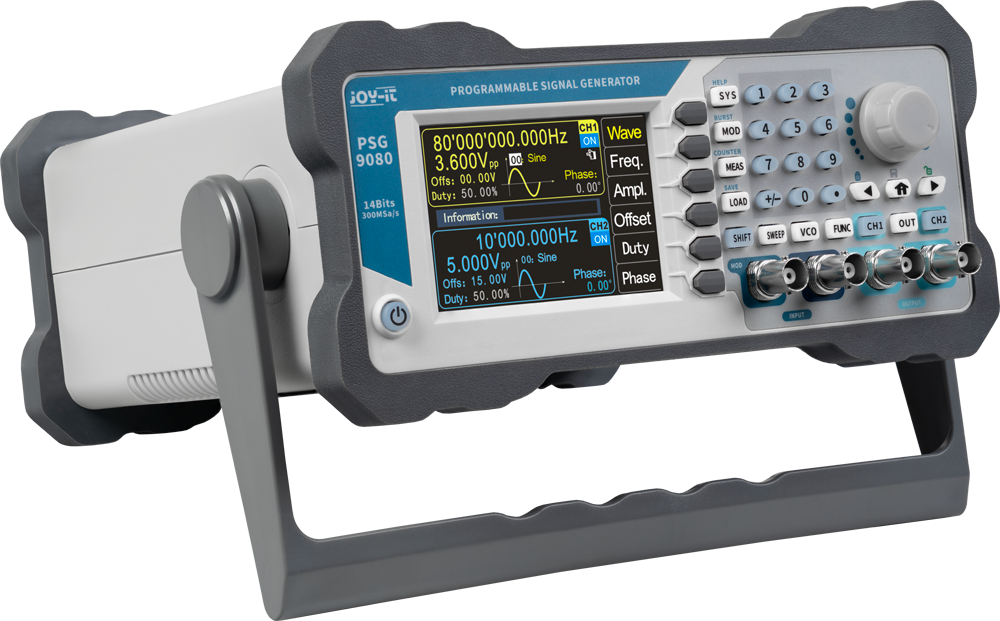

PSG9080 signal generator

The JT-PSG9080 is a modern, programmable signal generator that reliably meets the requirements of professional users in development, laboratories and training. With its two independent channels and integrated frequency counter, it combines high flexibility with practical functionality. Whether for research, quality assurance or training environments - this signal generator provides the ideal basis for precise and reproducible measurement results.

The versatility of the device is particularly noteworthy. The JT-PSG9080 covers a wide frequency range and supports a wide range of signal shapes and modulation types. This means that both standard applications and demanding test tasks can be easily implemented. This flexibility makes it ideal for a wide range of applications - from the development of electronic circuits to the simulation of complex signal sequences.

User-friendliness is not neglected either: the highresolution 3.5" color display ensures that all relevant information is clearly displayed. Together with the sophisticated operating concept, settings can be intuitively adjusted and saved. Frequently used configurations are therefore quickly available again at any time, which makes everyday work noticeably easier and increases efficiency.

Thanks to its robust design, non-slip feet and sophisticated menu navigation, the JT-PSG9080 is ideally suited for intensive continuous use in the laboratory as well as for mobile use. It combines precision, versatility and ease of use in a compact device - offering a reliable solution for anyone who does not want to compromise on signal generation.

Specifications

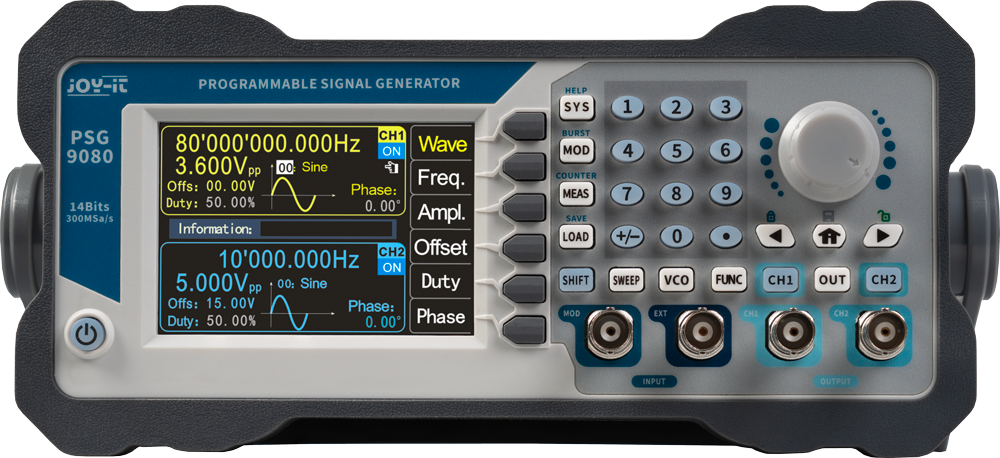

Channels

2 outputs (signal generator) + 1 frequency counter

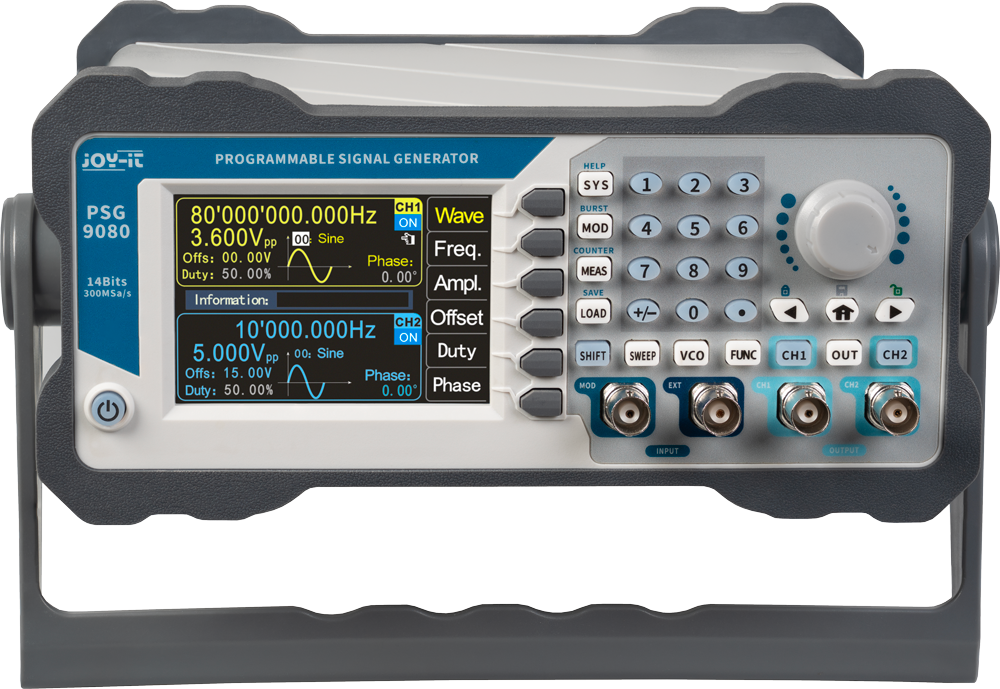

Display

3.5" TFT color LCD

Connection

BNC signal terminals

Special features

Sweep function, VCO function, arbitrary waves, modulations, PC software

Color

Gray

Frequency range sine

1 nHz - 80 MHz

Frequency range square/pulse

1 nHz - 30 MHz

Frequency range triangle/arbitrary

1 nHz - 50 MHz

Frequency range TTL

1 nHz - 20 MHz

Frequency resolution

1 nHz

Frequency accuracy

± 5 ppm

Frequency stability

± 3 ppm / year

Sampling rate

300 MSa/s

Vertical resolution

14 Bit

Signal shapes

Sine, square, pulse, triangle, partial sine wave, CMOS wave, DC level, half wave, full wave, positive staircase wave, anti-staircase wave, noise signal, exponential rise, exponential fall, multisonic wave, symplectic pulse, Lorentz pulse, 60 user-defined arbitrary
waves

Amplitude range

< 1 MHz: 3 mVpp ~ 25 Vpp
< 11 MHz: 2 mVpp ~ 10 Vpp
< 60 MHz: 2 mVpp ~ 5 Vpp
< 80 MHz: 2 mVpp ~ 3.6 Vpp

Harmonic distortion

≤ 0,5 % (@ 1 kHz, 5 Vpp)

Modulation types

AM, FM, PM, ASK, FSK, PSK, PWM, Burst

Sweep modes

Linear / logarithmic

Sweep directions

Rising, falling, round trip

Sweep time

0,01 s - 640 s

Input channels (Frequency counter)

1

Frequency range (Frequency counter)

1 Hz - 100 MHz

Measurements

Frequency, Positive & Negative Pulse Width, Period, Duty Cycle

Coupling methods

DC, AC

Gate time

0,001 s - 10,000 s

Measuring modes

Low frequency, high frequency

Measuring range

1 Hz - 100 MHz

Input signal amplitude range

2 Vpp - 20 Vpp

Period measurement

10 nS - 4 s

Duty cycle measuring range

0,01 % - 99,99 %

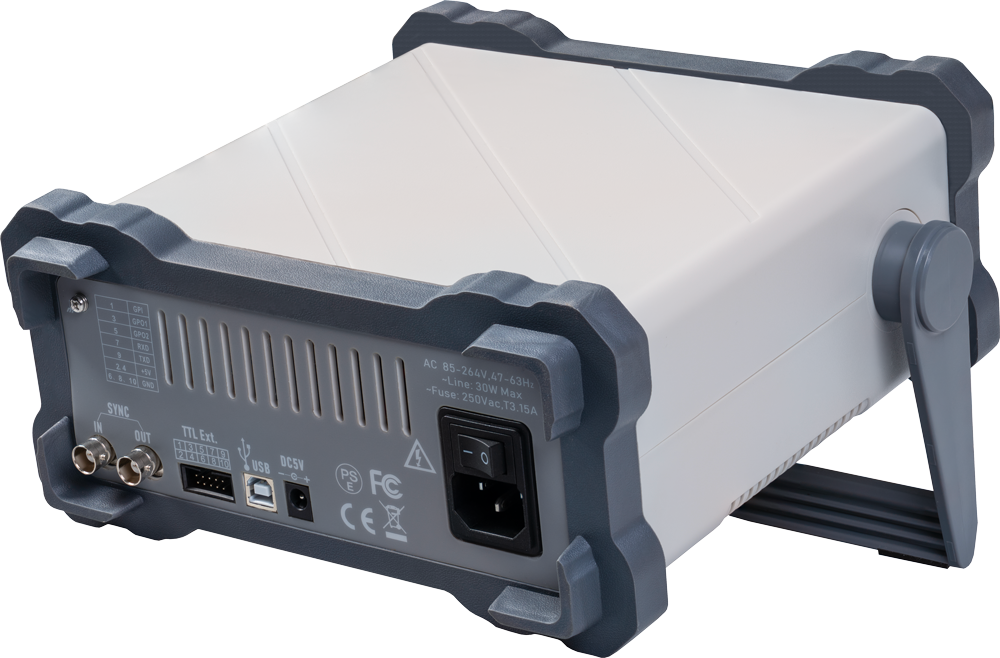

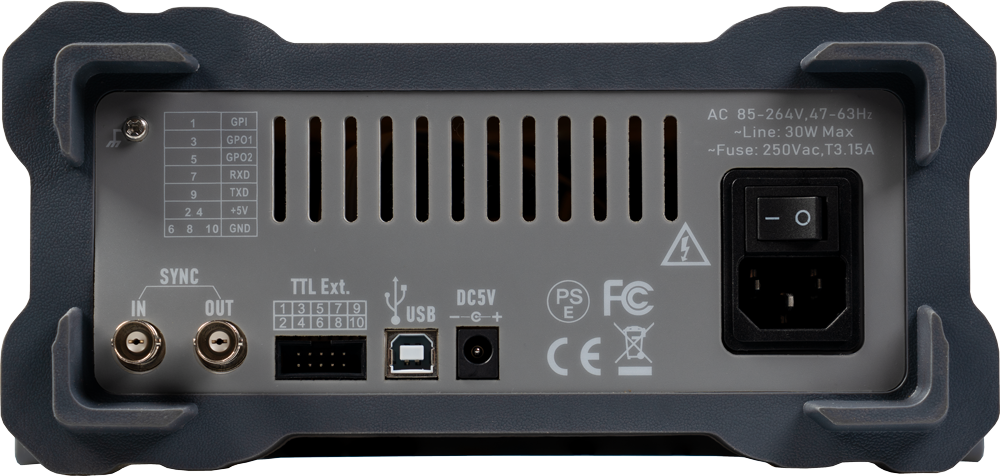

Interfaces

USB, TTL

Internal memory

Up to 60 user waveforms can be stored

Input voltage

AC: 85 - 264 VAC, 47 - 63 Hz
USB: 5 V DC, 3 A

Power consumption

≤ 30 W

Operating temperature

0 - 40 °C

Operating humidity

< 80% rF

Additional information

Dimensions

219 x240 x160 mm

Weight

950

Items shipped

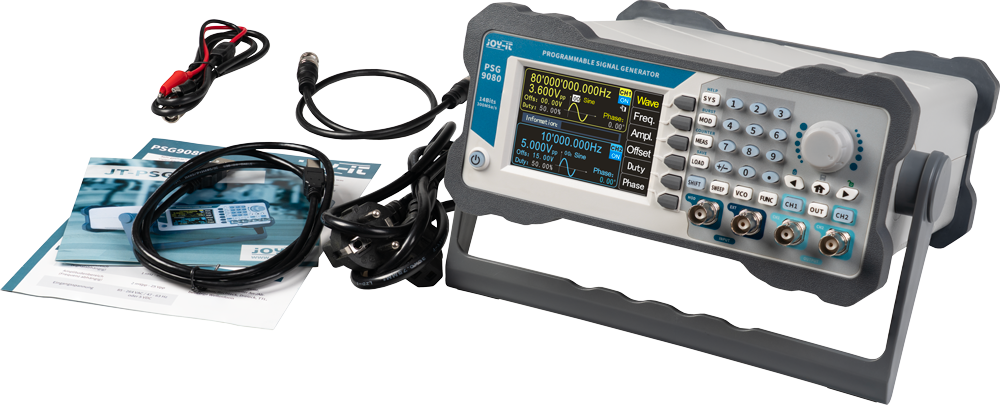

PSG9080, power cable, 2x BNC cable, USB cable, quick start guide

EAN

4250236820989

Article No.

JT-PSG9080
