USB Volt-/Amperemeter

USB Volt-/Amperemeter

USB Volt-/Amperemeter

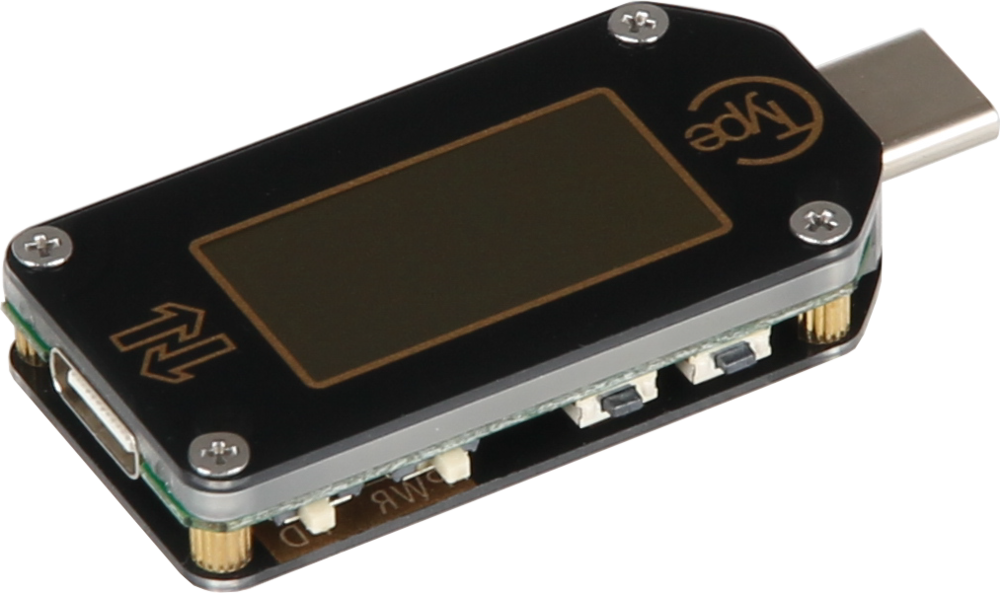

The TC66C is a small, multifunctional USB C multimeter.

By supporting current Quick Charge standards, it can also easily be used in conjunction with current handheld hardware.

Specifications

Specifications

Screen

0.96 Inch IPS Display

Refresh rate

2 Hz

Interface

USB type C 3.0

Quick Charge Recognition

QC2.0, QC3.0, Huawei FCP, Huawei SCP, Samsung AFC, PD

Voltage input

3,5—24 V

Voltage measurement range

0,005 - 30 V

Voltage resolution

0,1 mV

Voltage accuracy

± 0,5 ‰ (+10 digits)

Current measurement range

0 - 5 A

Current resolution

0,01 mA

Current accuracy

± 1 ‰ (+20 digits)

Power measurement range

0 - 150 W

Capacity accumulation range

0 - 99‘999 mAh

Energy accumulation range

0- 999,99 Wh

Load impedance range

1 – 9‘999.9 Ω

Temperature measurement range

0 - 80 °C

Work temperatur range

0 – 45 °C

Temperature measurement error

± 3 °C

Dimensions

49 x 22 x 8 mm

Weight

22 g

Items Shipped

TC66C multimeter

EAN

4250236818689

Article No.

JT-TC66C
