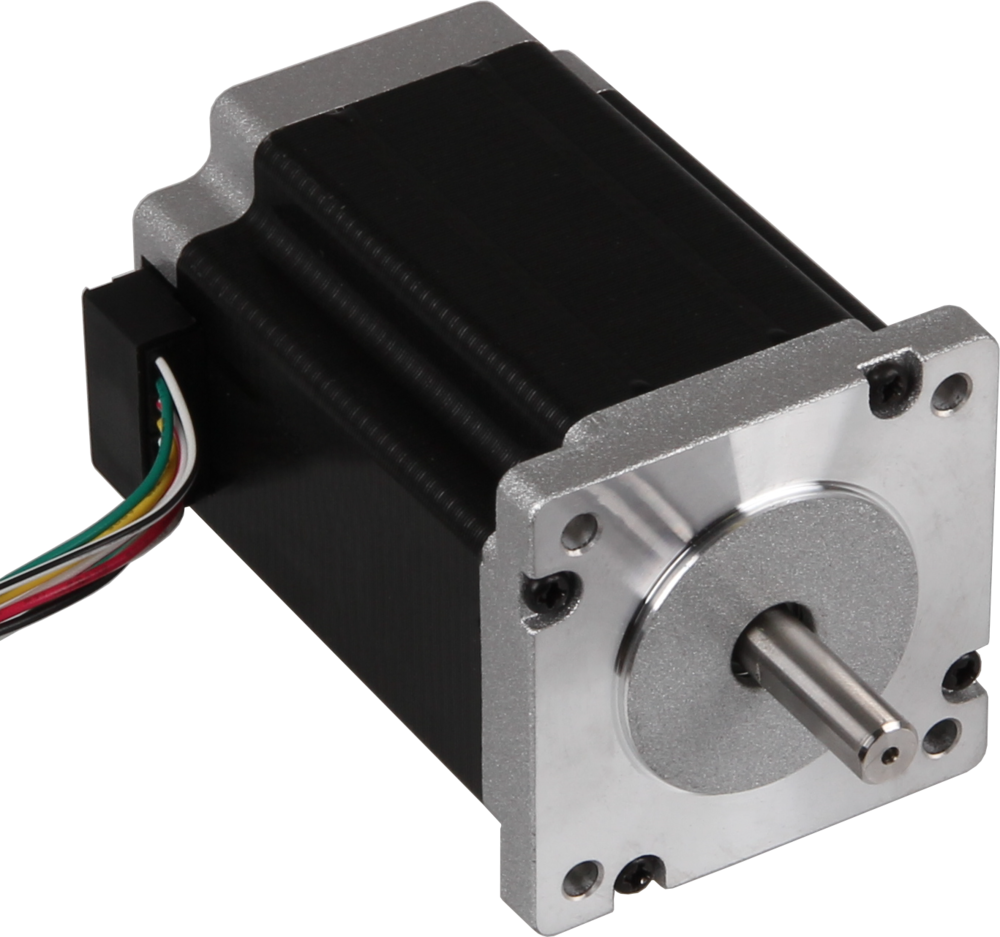

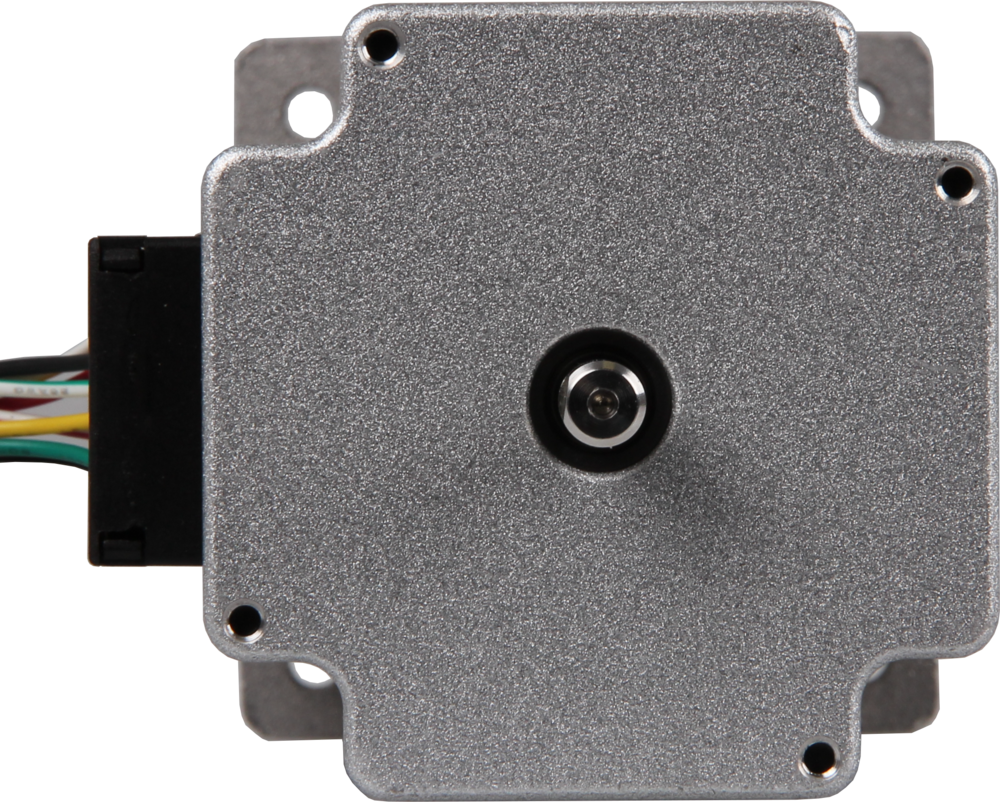

NEMA 23 motor

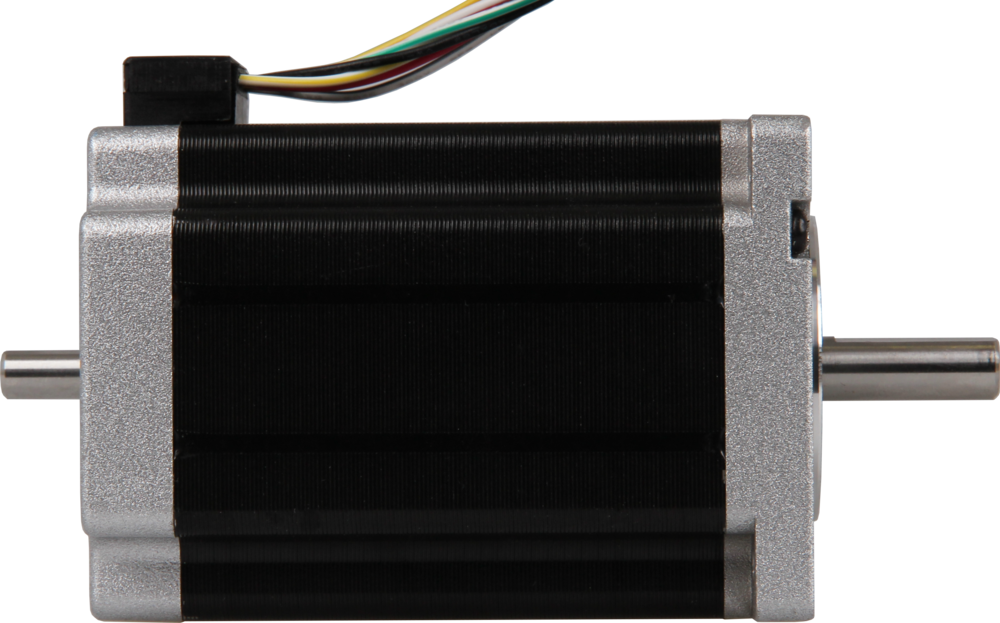

The NEMA23-01 stepper motor can be optimally used for tasks in the areas of automation, CNC (f.e. engraving lasers, 3D printers, milling machines, etc.) or robotic. With the double shaft, this motor can be used f. e. in connection with an encoder.

Specifications

Specification

60STH86-3008B

Shaft diameter

Primary 8, Secondary 6.35 mm

Connection

4 jumper cables

Steps per revolution

200

Holding torque

3 Nm

Rated voltage

2.73 V

Rated current

4.2 A

Step angle

1.8°

Amount of Phases

4

Wiring

Coil 1A: red, Coil 1B: yellow, Coil 2A: blue, Coil 2B: black, Coil 3A: white, Coil 3B: orange, Coil 4A: brown, Coil 4B: green

Additional information

Dimensions

59 x 59 x 86 mm

Weight

1,4 kg

Items shipped

NEMA23-01 stepper motor

EAN

4250236815480

Article No.

NEMA23-01
