Analog Digital Converter

Analog Digital Converter

Analog Digital Converter

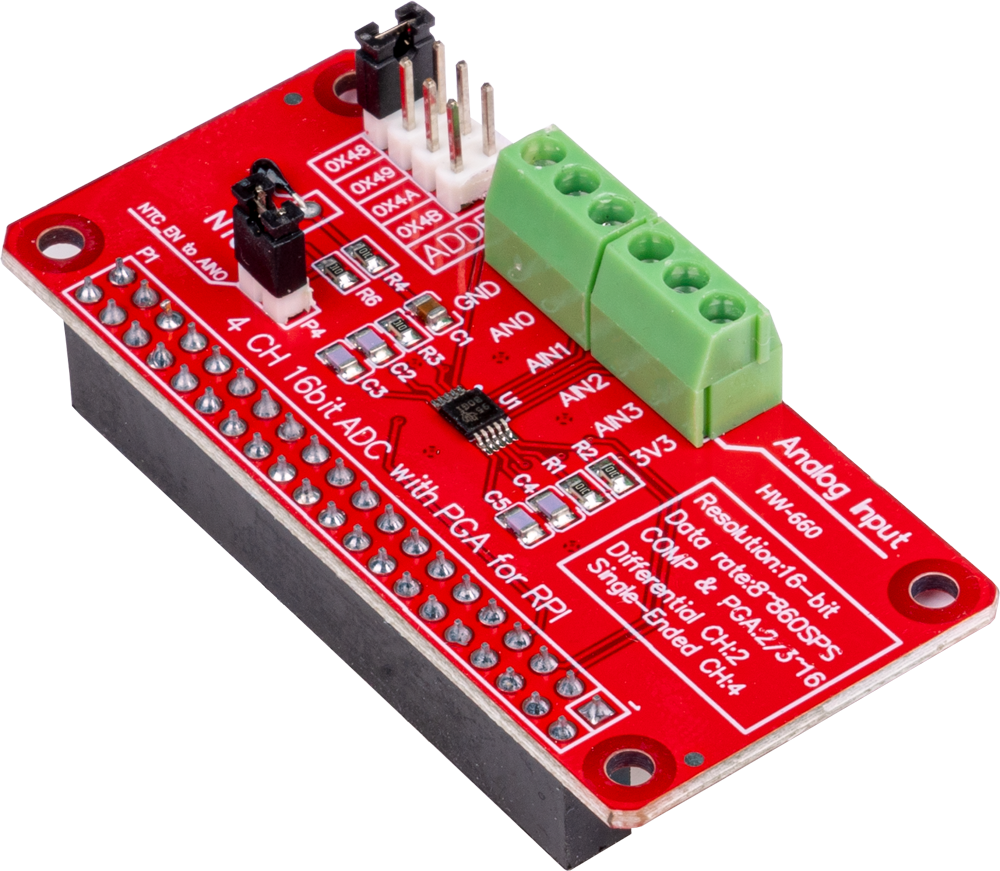

With the help of the RB-ADC01 you can read analog data with your Raspberry Pi. The 16-bit chip ADS1115 is an analog to digital converter that processes the analog signal to digital data and sends it via I2C bus to the Raspberry Pi.

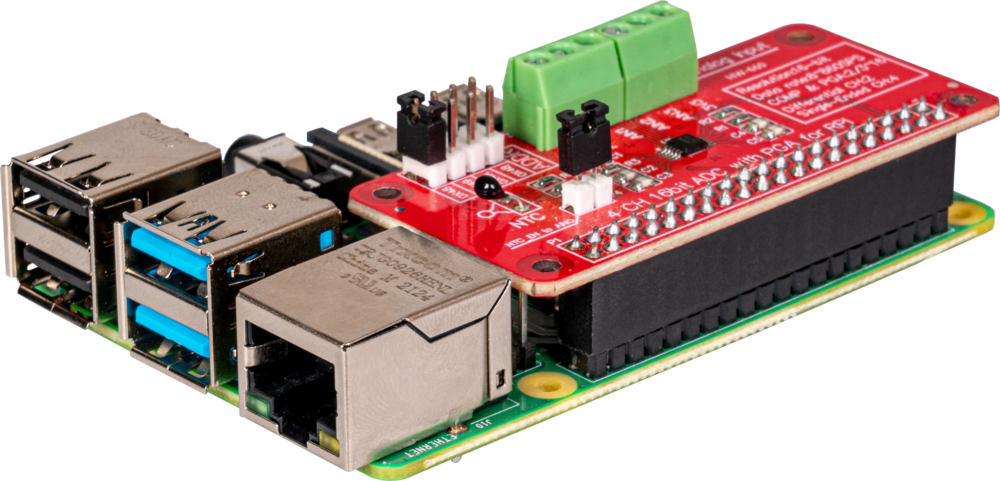

The ADC module can be easily plugged on the GPIO header. So analog sensors and other accessories can be used.

Specifications

Specifications

Model

ADS1115

Function

Analog Digital Converter

Interface

I2C

Channels

4

Analog input voltage

3.3 V

Analog input current

10 mA continuous 100 mA peak

Resolution

16 bit

Used I2C address

0x48(default) 0x49, 0x4A, 0x4B (configurable)

Programmable data rate

8 SPS to 860 SPS

Special feature

Using analog peripherals with the Raspberry Pi

Operating temperature

-30 to 80°C

Dimensions

65 x 30 x 18 mm

Items Shipped

RB-ADC01 module

EAN

4250236822006

Article No.

RB-ADC01
