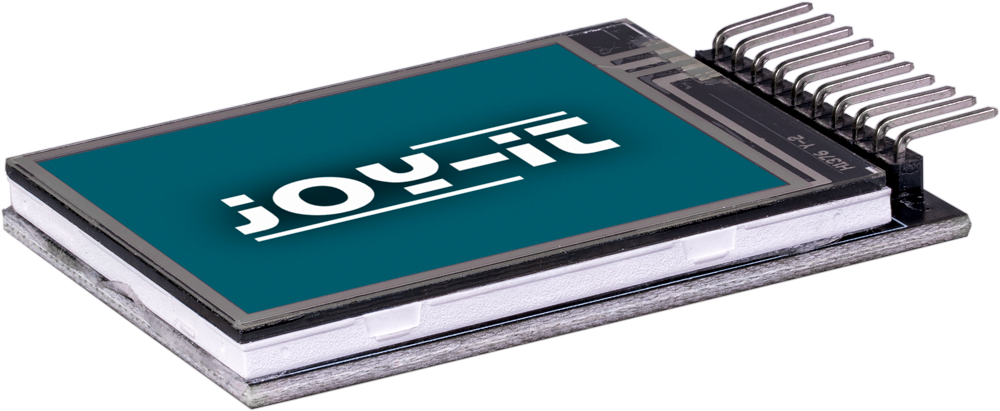

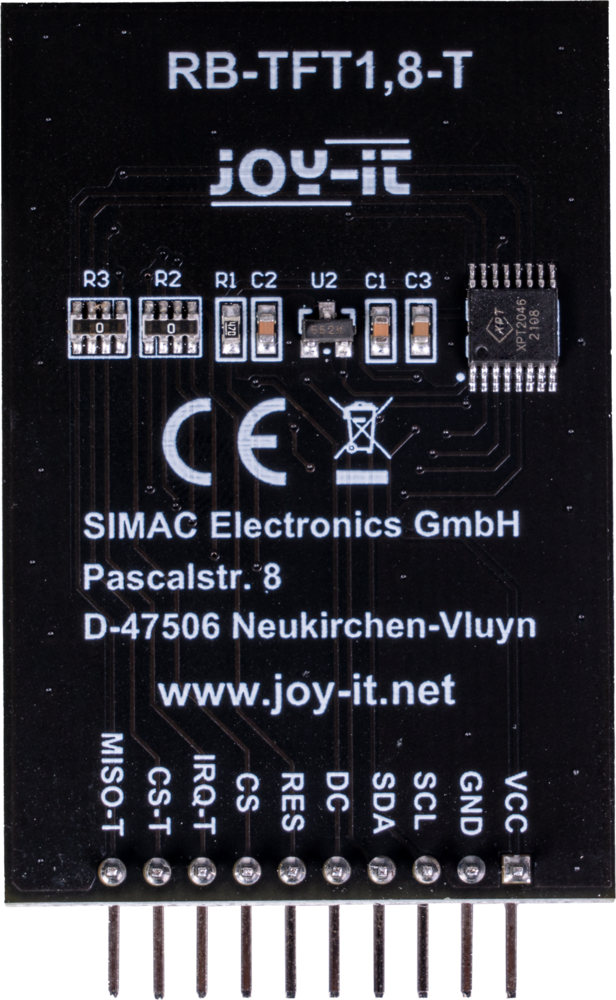

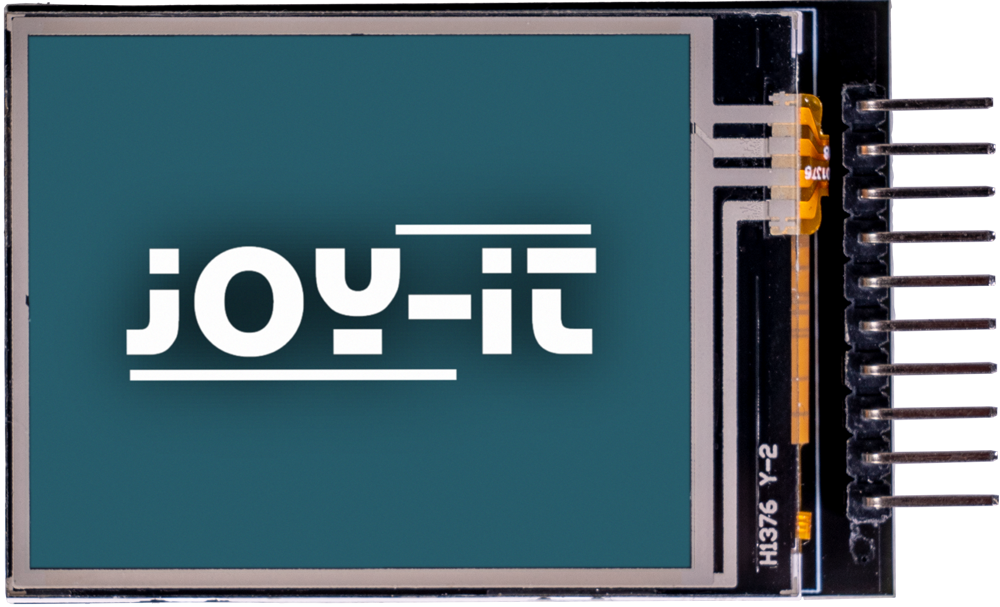

1.8" TFT touch display
1.8" TFT touch display
1.8" TFT touch display
This mini LCD touch display fits perfectly with your Micro:bit, Raspberry Pi, or Arduino project. The TFT display has a size of 4.57 cm (1.8“) and is universally usable in your project, thanks to its SPI interface. It can display 262,000 colors and offers a maximum resolution of 128x160 pixels.
Specifications
Specifications
Display
1.8" (4,57 cm)
Visible area
28.03 x 35.04 mm
Resolution
128 x 160 Pixel
Contrast
1:400
Panel
JD-T18003-T01
IC driver
ST7735R
Touch driver
XPT2046
Touch technology
Resistive
Supply voltage
3.3 V
Logic level
3.3 V
Colors
262,000
Interface
SPI
Color
Black
Special features
LED-Backlight, Touch function
Compatible to
Raspberry Pi, micro:bit, Arduino (3.3 V logic)
Dimensions
57 x 5 x 35 mm
Items Shipped
1.8" touch display
EAN
4250236824253
Article No.
RB-TFT1.8-T
