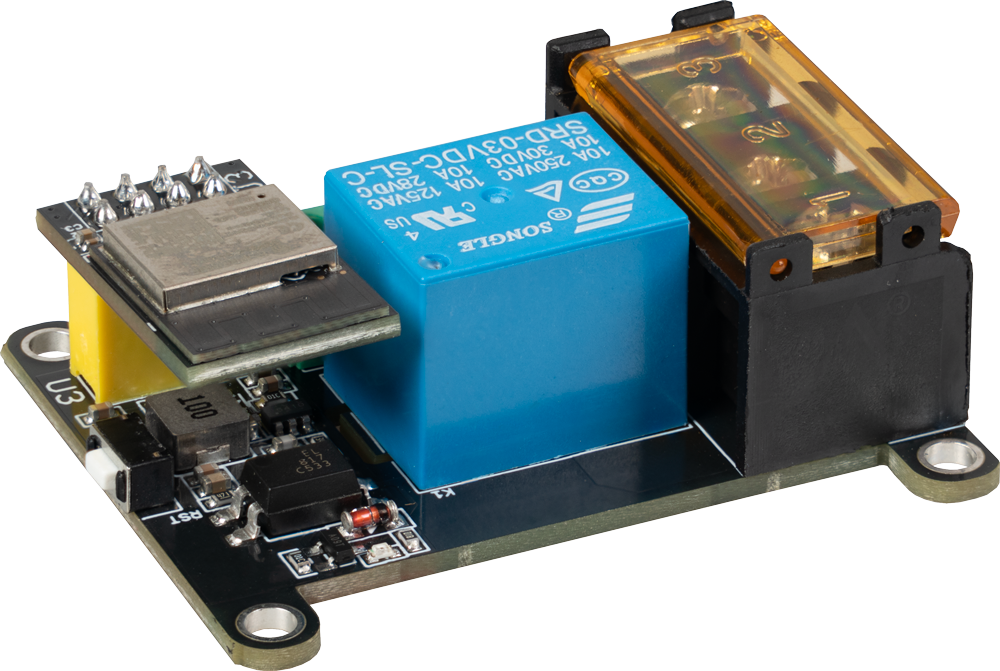

The ESP32-C6 Mini Relay Module combines advanced wireless technology with practical switching capability in a compact form factor. Equipped with the ESP32-C6-Mini-1 from Espressif, it supports Wi-Fi 6 (802.11ax), BT 5 LE, and Zigbee / Thread, offering flexible integration for a wide range of IoT and automation projects.

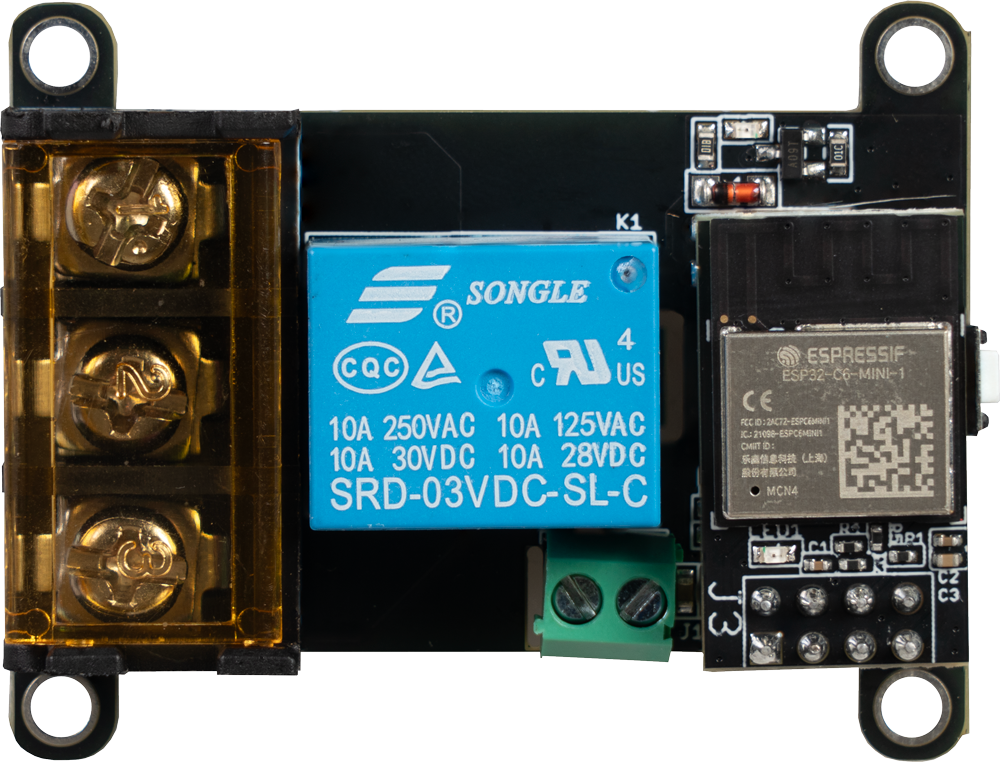

Powered by a 5–12 V DC supply, the module features an onboard relay capable of switching up to 10 A / 250 V AC or 10 A / 30 V DC, making it suitable for controlling lights, motors, or other electrical devices. The relay can be controlled directly via GPIO 9, and a built-in reset button provides quick access for setup or configuration.

Thanks to its wireless connectivity and robust relay performance, the SBC-ESP32-RM01 is ideal for smart home systems, remote switching, and automation environments. Its compact size, low weight, and easy terminal connections ensure fast integration and reliable operation in any project.
