128x64 Graphic LCD

128x64 Graphic LCD

128x64 Graphic LCD

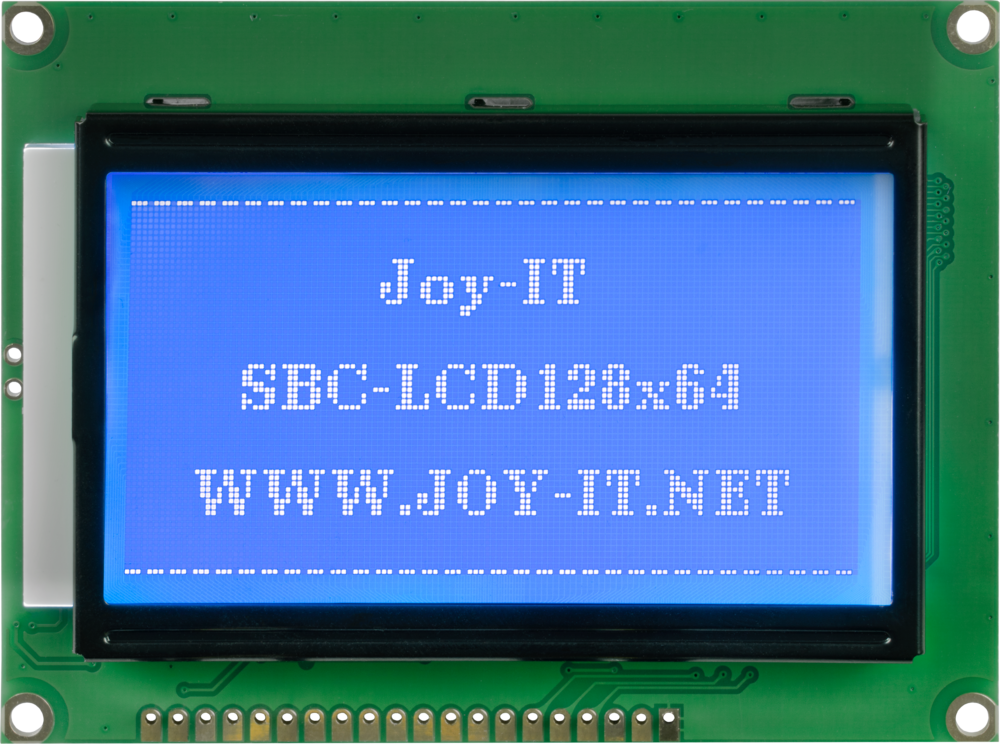

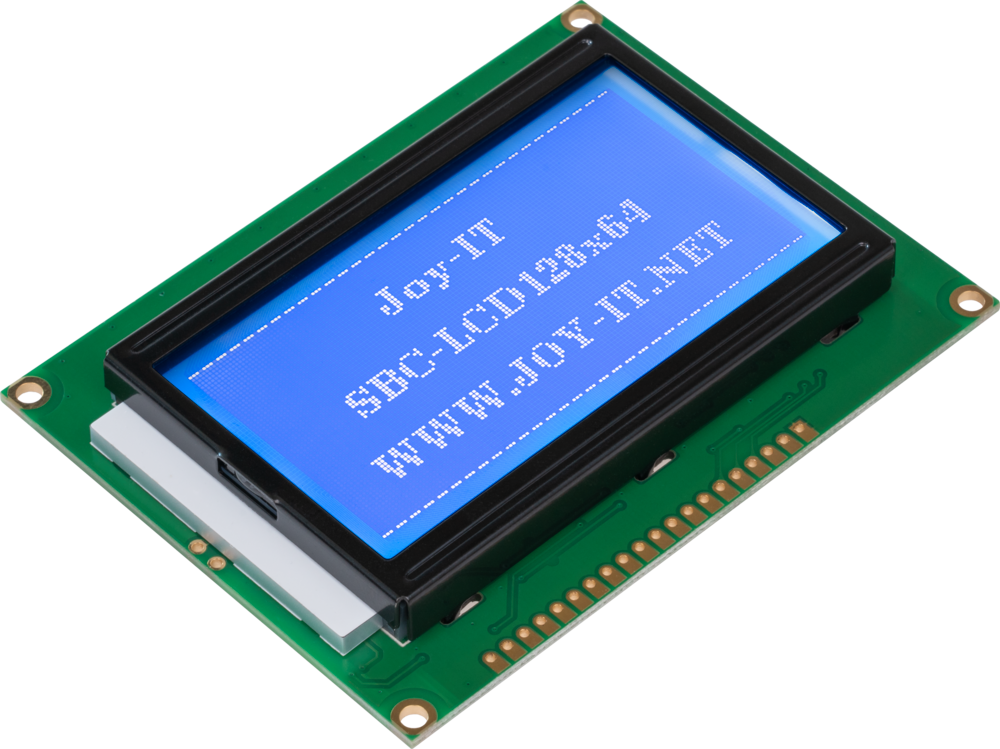

This 128 x 64 graphic LCD is versatile. It can be controlled with 8 pin parallel as well as serial via SPI. Its large high-contrast display is suitable for many different applications. The contrast can be adjusted via a potentiometer on the back.

Specifications

Specifications

Display type

Graphic LCD

Colors

White on blue background

Resolution

128x 64 Pixels

Control chip

ST7920

Interfaces

SPI, 8-wire Parallel 8080

Supply voltage

5 V

Current consumption

max. 65 mA

Logic level

3.3 - 5 V

Special feature

Contrasting and bright

Dimensions

93 x 70 x 12 mm

Items Shipped

128x64 Graphic LCD

EAN

4250236821993

Article No.

SBC-LCD128x64
