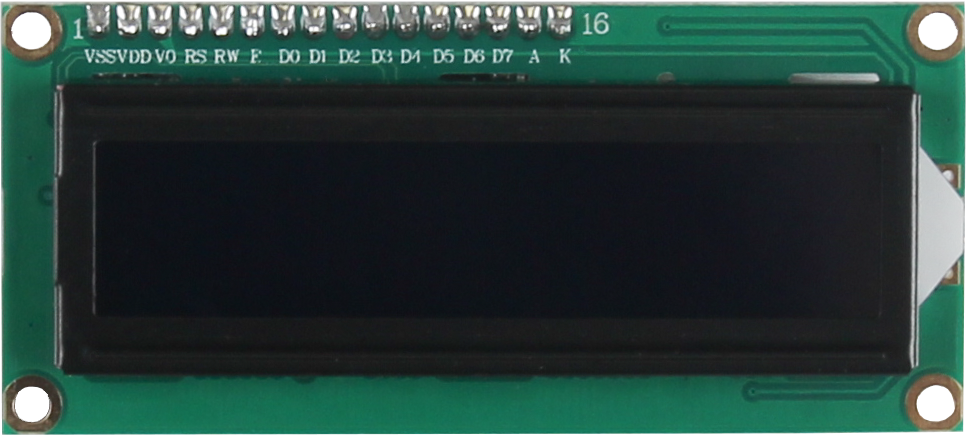

I2C Serial 2.6" LCD Module

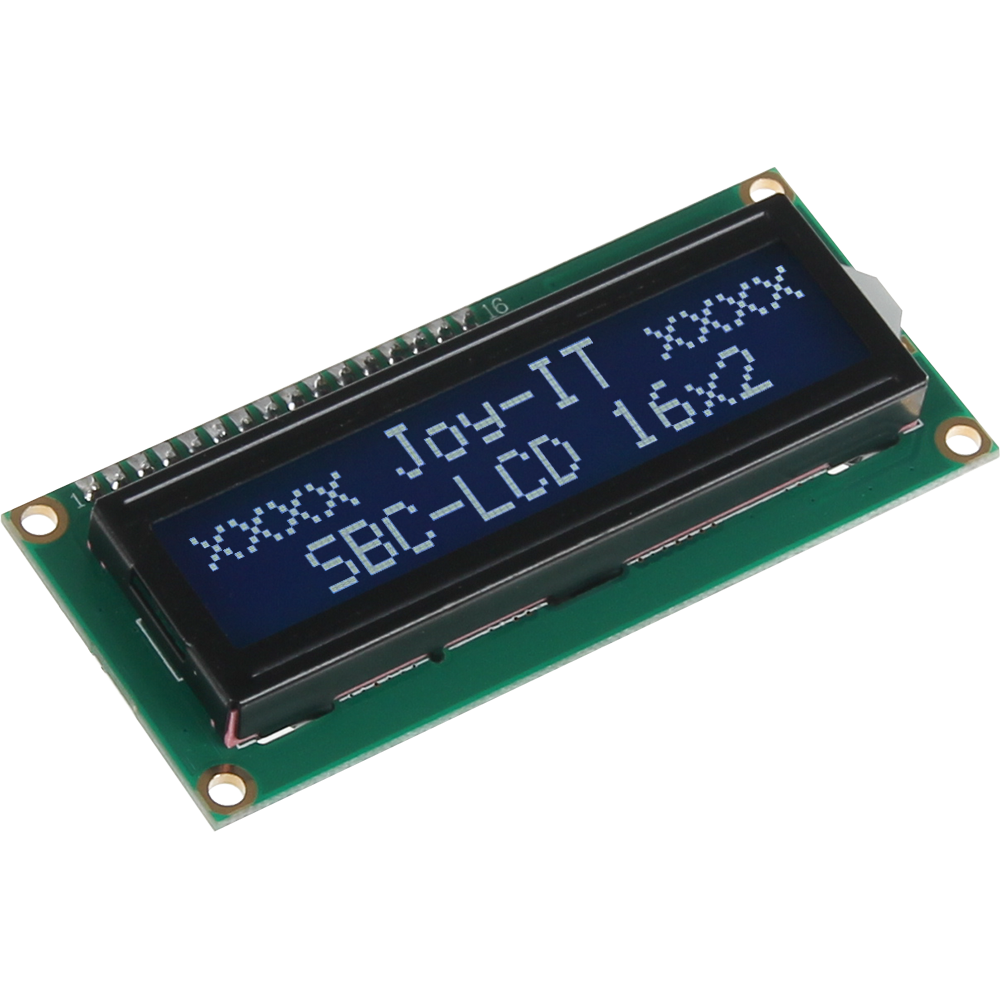

The SBC-LCD16x2 is a compact 2.6“ LCD module with 2 lines of 16 characters each and is ideal for embedded applications, control systems, prototyping and DIY electronics projects. The integrated blue backlight ensures good readability even in difficult lighting conditions.

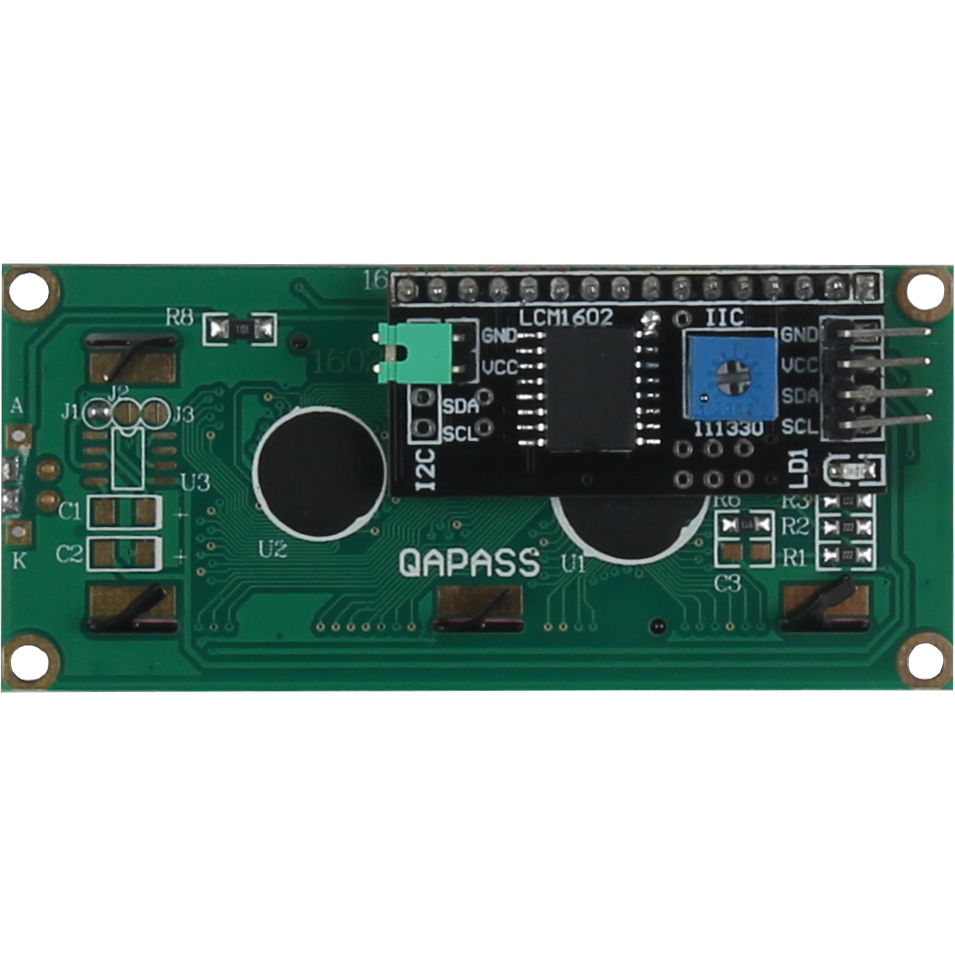

Thanks to the soldered-on I²C adapter with PCF8574AT chip, the display is particularly easy to integrate into microcontroller and single-board computer projects. In contrast to parallel control, only four lines (VCC, GND, SDA, SCL) are required - this saves I/O pins and considerably simplifies wiring.

The module is fully HD44780 compatible and can therefore be used with a variety of existing software libraries for Arduino, Raspberry Pi and many other systems. It supports 3.3 V and 5 V logic levels at a supply voltage of 5 V, making it flexible for use on different platforms.

With its compact dimensions of 8 × 2.5 × 0.6 cm, the display can be easily integrated into housings, front panels or control panels. Whether in prototype development or in series devices - the SBC-LCD16x2 offers a reliable and simple text display solution with minimal cabling effort.

Specifications

Special features

Compact 2.6" display with 16x2 characters,
I2C interface - only 4 lines required,
Integrated PCF8574AT adapter,
HD44780-compatible for broad software support,
Suitable for 3.3 V & 5 V logic systems,
Blue backlight for good readability,
Ideal for microcontroller, embedded & DIY projects

Model

I2C Serial 2.6“ LCD Module

Display size

2.6“

Characters

16x2 characters (2 rows with 16 columns)

Backlight

Blue

Adapterchip

PCF8574AT

Industrial standard

HD44780

Logiclevel

3,3V & 5V (with a power supply of 5V)

Special features

Soldered I2C-communication-adapter: Only 4 I/O lines are needed (power supply + 2 data-lines)

Additional information

Dimensions

8 x 2.5 x 0.6 cm

Weight

36 g

Items shipped

I2C Serial 2.6“ LCD Module

EAN

4250236813219

Article No.

SBC-LCD16x2
