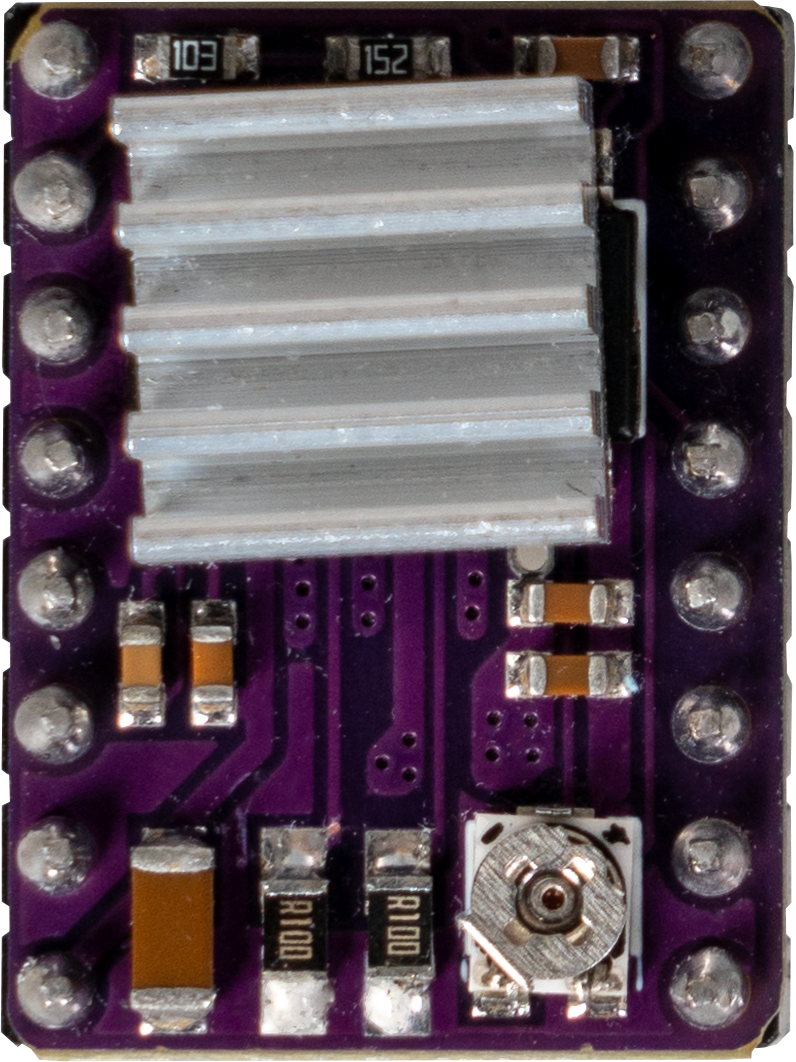

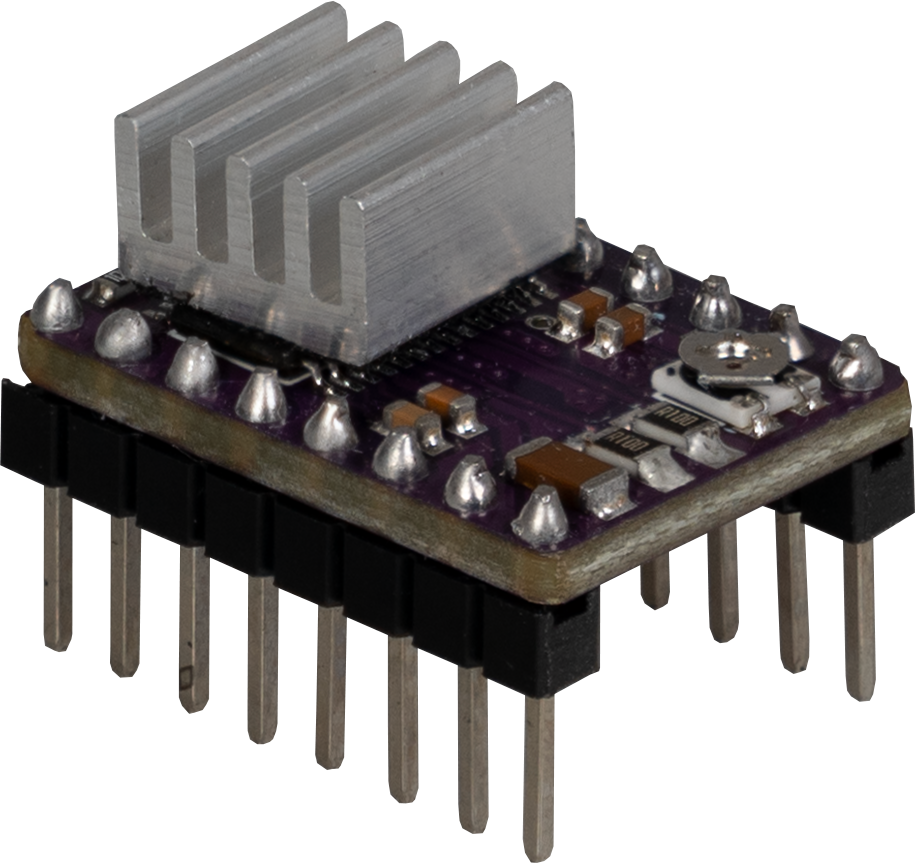

DRV8825 motor driver

The DRV8825 motor driver is a powerful solution for the precise control of stepper motors in applications such as 3D printers and CNC machines. It can drive motors with up to 2.5 A per phase and supports six step resolutions from full step to 1/32 step.
With an operating voltage of 8.2 to 45 V, the board offers flexible application options and at the same time protects the hardware with its undervoltage and overcurrent protection functions. In addition, the included heat sink and thermal overload protection ensure long-term safe and efficient performance.
Compatible with popular microcontrollers such as the Arduino, the DRV8825 board is ideal for developers looking for a reliable and easy-to-implement motor controller.

Specifications

Controller IC

DRV8825

Operating voltage

8.2 - 45 V

Max. phase current

1.5 A (without heatsink); 2.5 A (with additional cooling)

Logic level

2.5 - 5.25 V

Microstep resolution

1, 1/2, 1/4, 1/8, 1/16, 1/32

Protection features

Overcurrent Protection (OCP), Thermal Shutdown (TSD), Undervoltage Lockout (UVLO), Fault Condition Indication Pin (nFAULT)

Compatible with

ARD-CNC-Kit1
ARD-CNC-Kit2
ARD-RAMPS-Kit1
ARD-RAMPS-Kit1.6

Additional information

Dimensions

15 x 20 x16 mm

Weight

4 g

Items shipped

Motor driver board, heatsink

EAN

4250236828336

Article No.

SBC-MD-DRV8825
