Solid State Relais

Solid State Relais

Solid State Relais

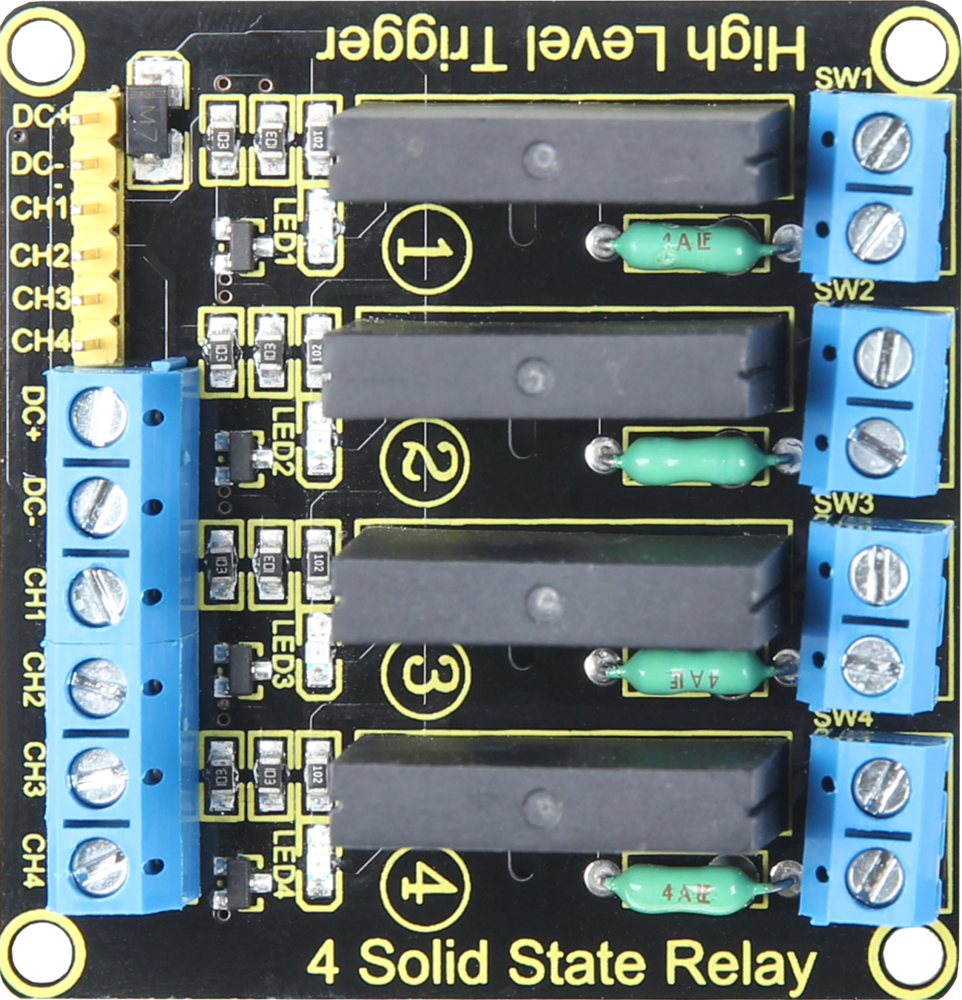

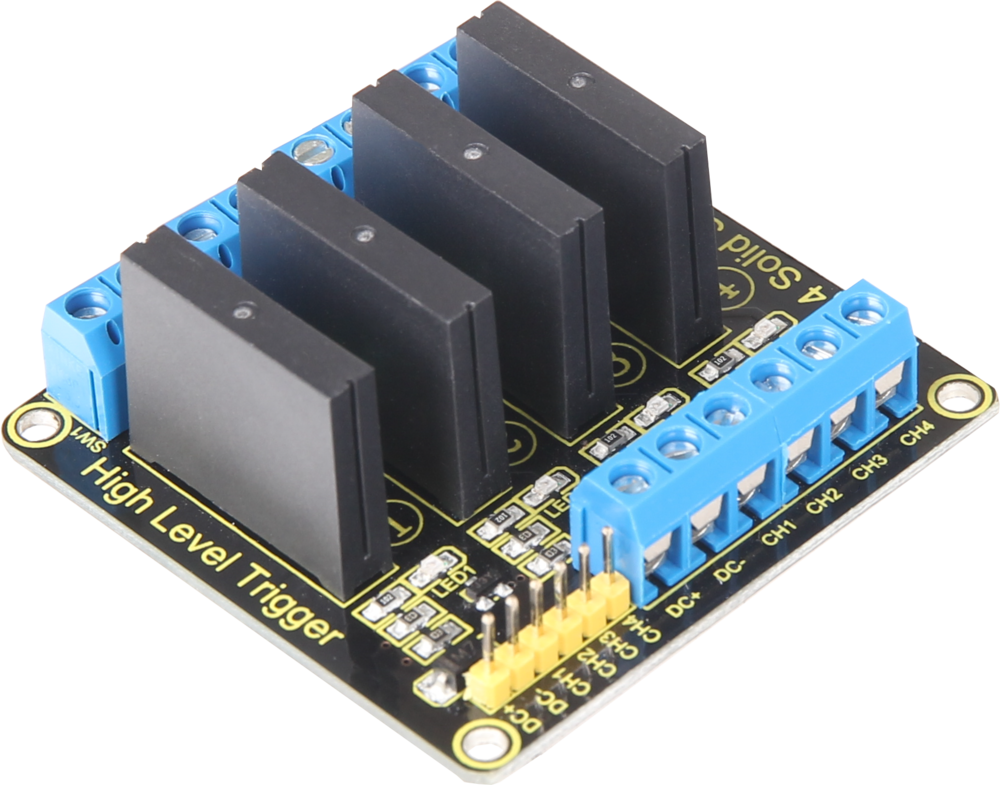

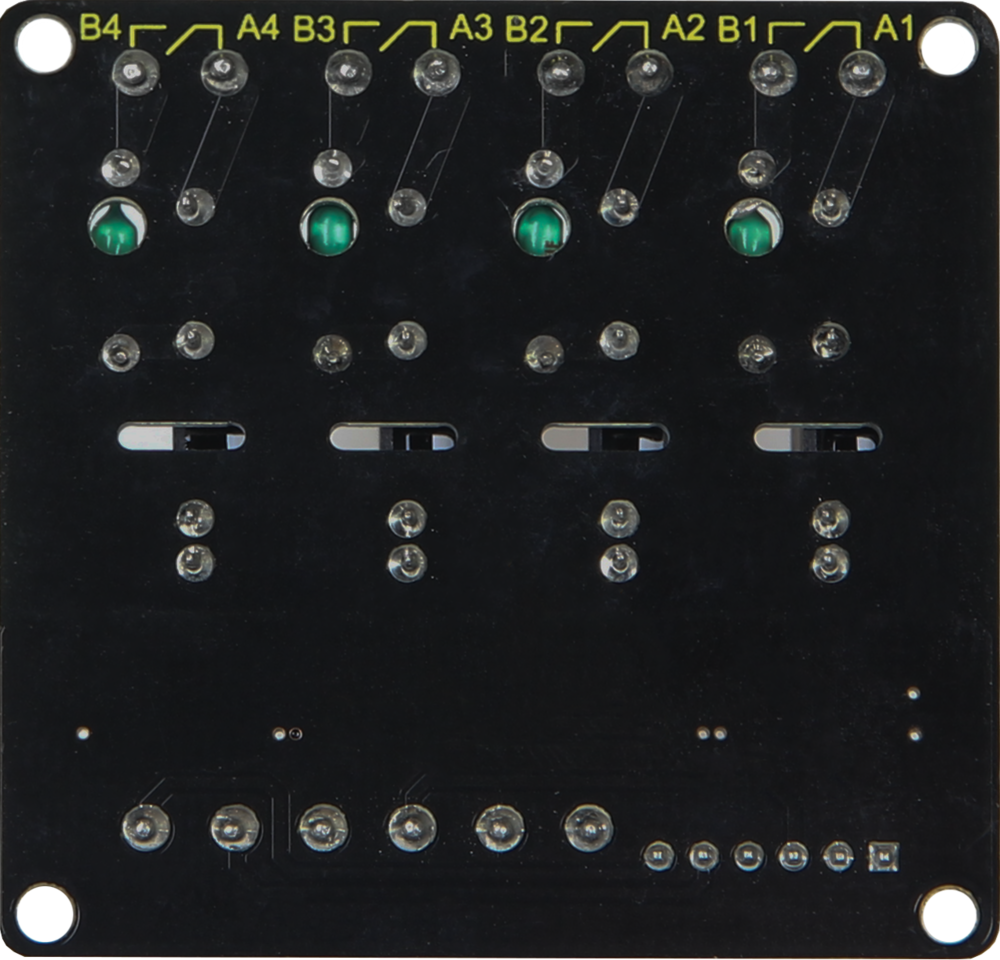

This 4-channel semiconductor relay is suitable for switching alternating current. It has a galvanic isolation by integrated optocouplers and the switching of the load is done with transistors, which is why it has a much longer lifetime than mechanical relays.

Specifications

Specifications

Relay type

OMRON SSR

Application areas

Robotic, microcontroller projects

Compatible with

Raspberry Pi, Arduino, etc.

Special features

galvanic isolation, transistor-switched, with resistive fuse (240 V, 2A)

Supply voltage

5 V DC

Maximum voltage load

240 V AC

Maximum current load

2 A

Logic level

0 - 2.5 Volt: Relay OFF 3.3 - 5 Volt: Relay ON

Quiescent current

0 mA

Operating current

12.5 mA

Trigger current

2 mA

Dimensions

57 x 55 x 23 mm

Items Shipped

SBC-SSR01

EAN

4250236820033

Article No.

SBC-SSR01
