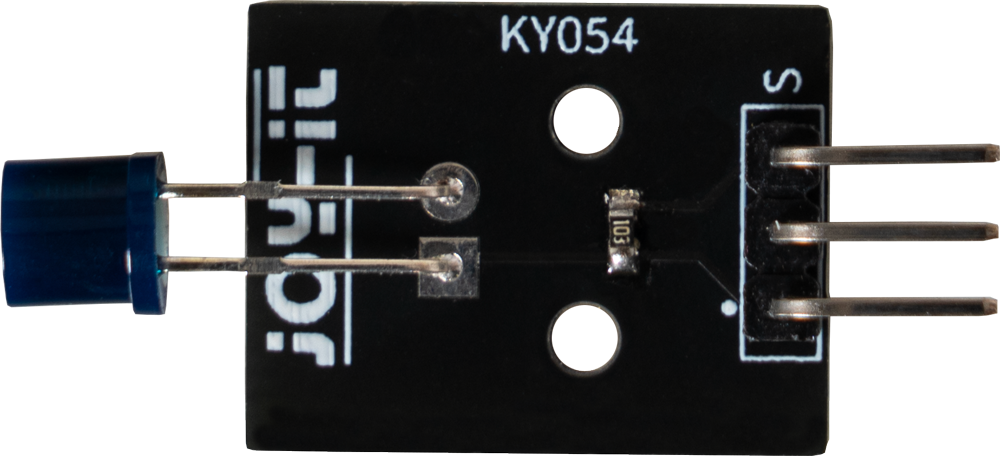

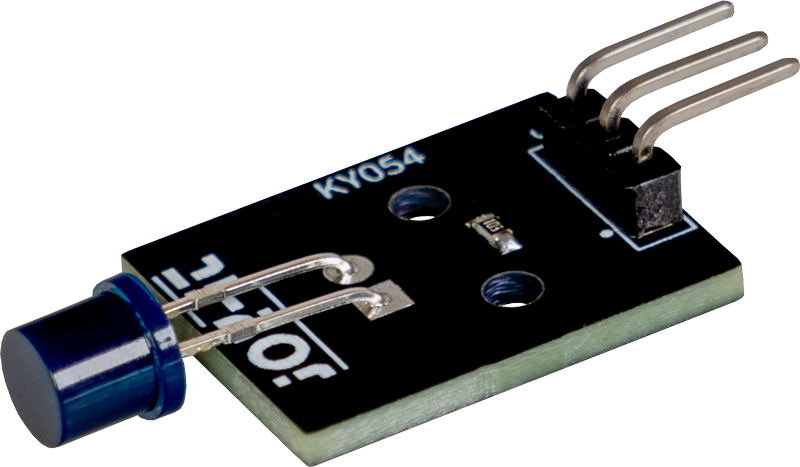

Phototransistor
The SEN-KY-054 phototransistor is a compact and reliable NPN phototransistor. It offers fast response times and low susceptibility to interference, making it ideal for applications such as ambient light monitoring, optical encoders and safety solutions. Its design allows easy integration into space-critical systems, and it operates reliably at temperatures from -25°C to +70°C - an ideal choice for precise light detection.
Specifications
Model
Phototransistor
Chipset
HLPT550B5H5
Sensor type
analog brightness output
Compatible with
Arduino, Raspberry Pi, Raspberry Pi Pico, micro:bit and more
Supply voltage
1.8 - 5 V
Output voltage
≤ Supply voltage
Fixed known resistance
10 kΩ
Operating temperature
-25 to 70 °C
Additional information
Dimensions
28 x 15 x 7 mm
Weight
2 g
EAN
4250236828398
Article No.
SEN-KY054
