Drucksensor up to 2 kg

Drucksensor up to 2 kg

Drucksensor up to 2 kg

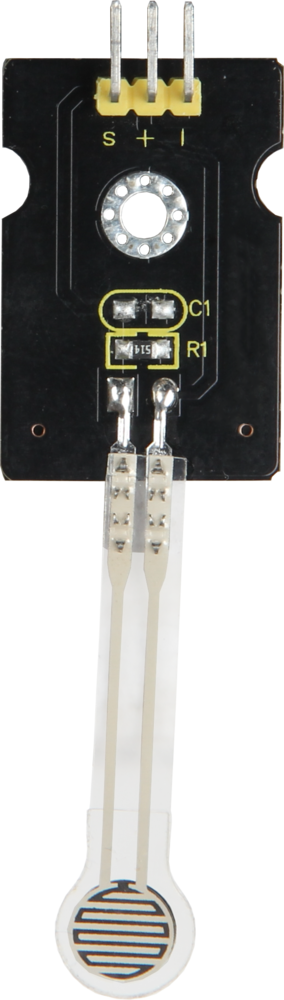

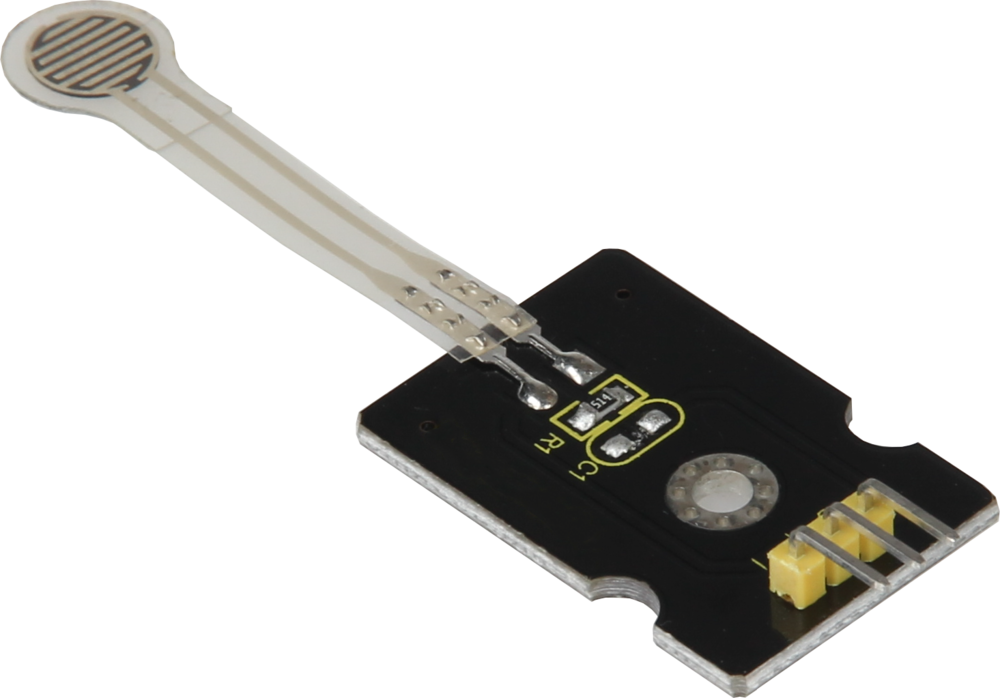

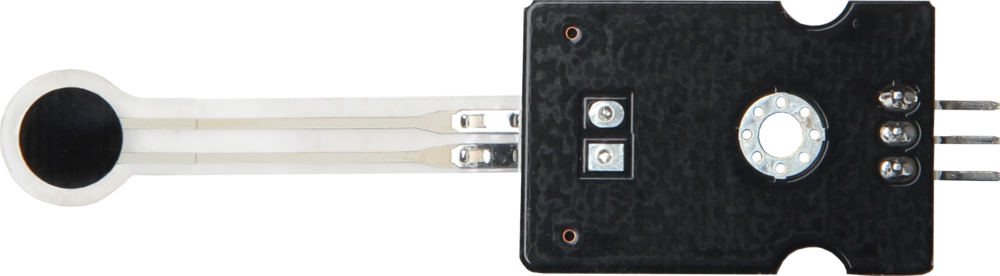

This pressure sensor works using analog resistance detection, when an external pressure is applied to the sensor, the resistance and thus the voltage of the analog signal changes. The sensor is highly sensitive, and the sensor strip is waterproof and flexible.



Measurement range

0 - 2 kilograms

Thickness of thin-film strip

< 0,25 mm

Compatible with

Raspberry Pi (with AD-converter), Arduino, et

Special features

High sensitivity and flexibility, water-proof sensor strip, no electrostatic discharge or magnetic interference

Output of measurement

Analog voltage value

Response point of weight

100 g - 150 g


± 2,5%

Response time

< 1 ms

Recovery time

< 15 ms


+: Power Supply 3.3-5V I: Ground S: Analog Output

Operating temperature

-20 - 60 ° C


Approx. 1,000,000 measurements


75 x 20 x 9 mm

Items Shipped


Article No.
