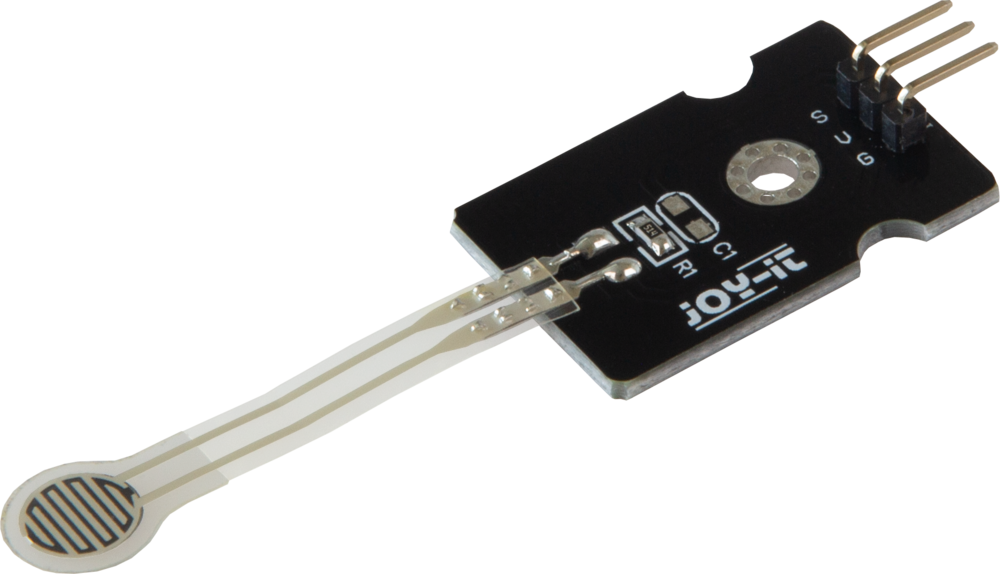

Pressure sensor up to 10 Kg

Pressure sensor up to 10 Kg

Pressure sensor up to 10 Kg

This pressure sensor works by means of analog resistance detection, when external pressure is applied to the sensor, the resistance and thus the voltage of the analog signal changes. The sensor is highly sensitive, flexible and the sensor strip is waterproof.

Specifications

Specifications

Measurement range

0 - 10 kilograms

Thickness of thin-film strip

< 0,25 mm

Compatible with

Raspberry Pi( with AD-converter ), Arduino, et

Special features

High sensitivity and flexibility, water-proof sensor strip, no electrostatic discharge or magnetic interference

Output of measurement

Analog voltage value

Response point of weight

200 g - 250 g

Accuracy

± 2,5%

Response time

< 1 ms

Recovery time

< 15 ms

Pins:

+: Power Supply 3.3-5V I: Ground S: Analog Output

Operating temperature

-20 - 60 ° C

Durability

Approx. 1,000,000 measurements

Dimensions

75 x 20 x 9 mm

Items Shipped

SEN-Pressure10

EAN

4250236820019

Article No.

SEN-Pressure10
