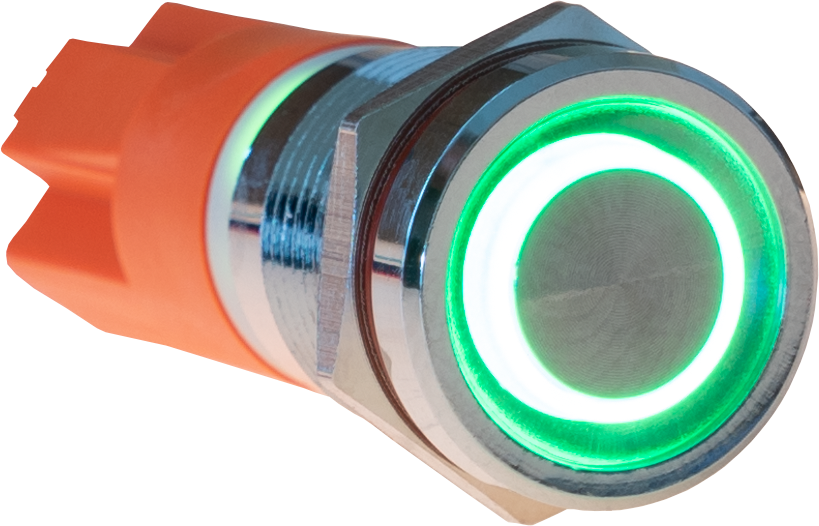

Latching button green 7A

Our small latching / momentary steel button convinces you with high-quality materials, protection classes, and ergo-nomics. It is made of stainless steel and meets the protection classes IP65 (dust and water), IK10 (impact), and PA66 (flame). The protection classes, wide temperature range, and durability make our steel probe suitable for many appli-cations. The steel push button has a bright LED ring (green / red).

Due to the concave design of the surface, there are no sharp edges. Its small size allows completely new uses than its big-ger brothers. The scope of delivery already includes the necessary connection cable, socket, sealing ring, and nut.

Specifications

Key and shell material

Stainless steel

Pin material

H65 silver- / gold-plated

Key depth

3.5 mm

Operation mode

Latching

Protection level

IP65 and IK10

Special feature

High-luminous LED (green)

Dimensions of mounting

Ø 12 x ≤7.5 mm

Overall dimensions

Ø 11.9 x 26.5 mm

Rated load (resistive)

7 A / 230 V AC
7 A / 24 V DC

Rated load (inductive)

3 A / 230 V AC
3 A /24 V DC

LED voltage

5 - 24 V DC

LED life

50 000 h

Connections

2x NO, LED+, LED-

Insulation resistance

≥ 1000 MΩ

Breakdown voltage

2500 V AC min.

Contact resistance

≤ 50 mΩ

Nut torque

0.8 - 1.2 Nm

Connector material

Flame retardant PA66

Environment temperature

-40 to 80°C

Additional information

Dimensions

Ø 14 x 26.5 mm

Weight

17 g

Items shipped

Button, connection cable, socket, sealing ring, nut

EAN

4250236825021

Article No.

Button12E-01
