Momentary button red 7A

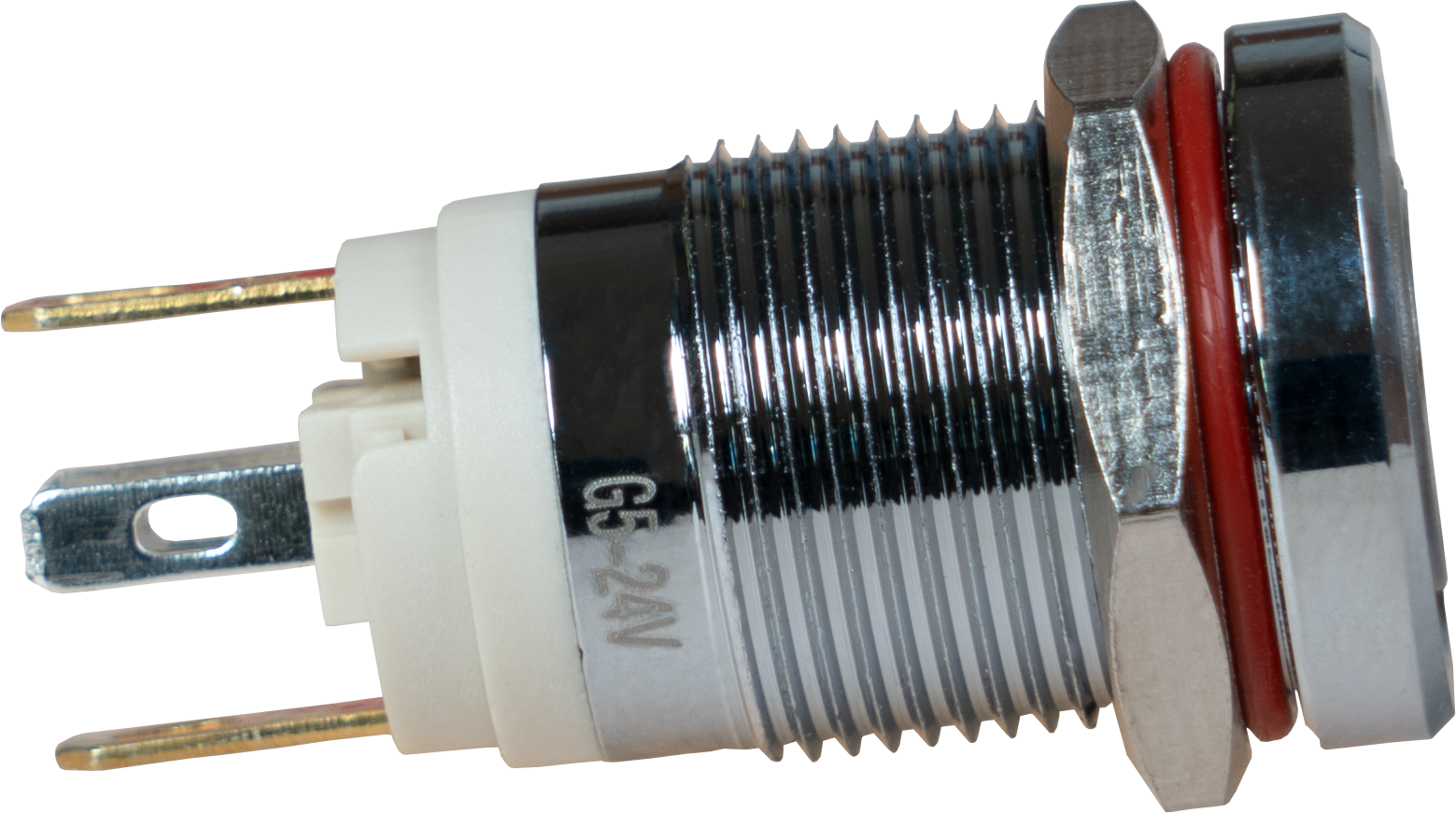

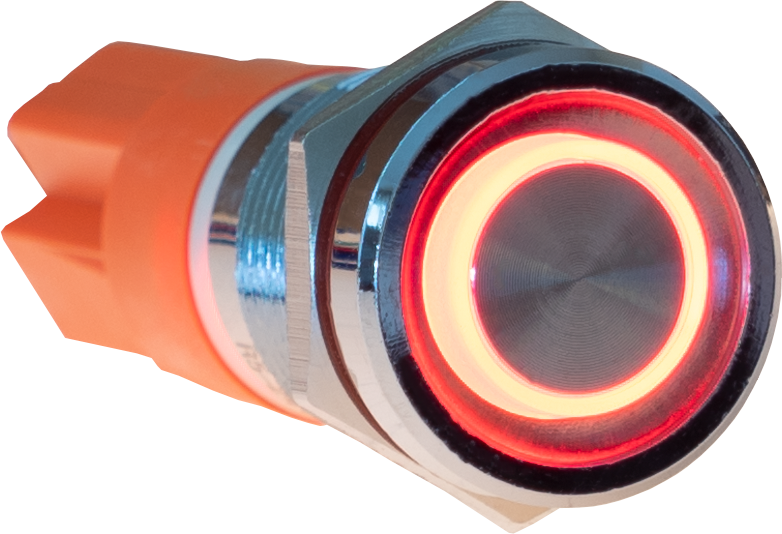

Our small latching / momentary steel button convinces you with high-quality materials, protection classes, and ergo-nomics. It is made of stainless steel and meets the protection classes IP65 (dust and water), IK10 (impact), and PA66 (flame). The protection classes, wide temperature range, and durability make our steel probe suitable for many appli-cations. The steel push button has a bright LED ring (green / red).

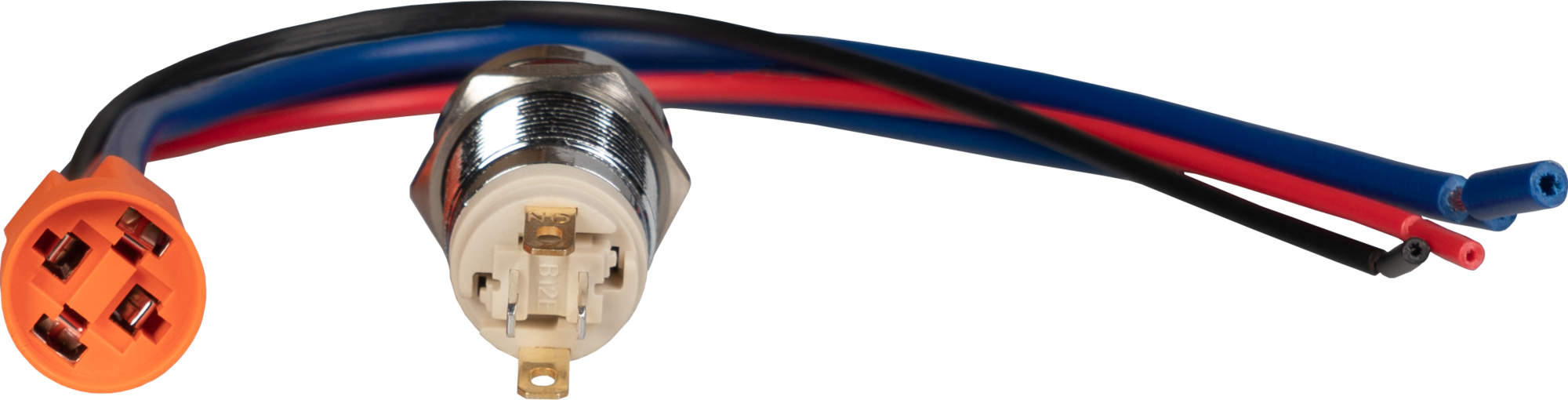

Due to the concave design of the surface, there are no sharp edges. Its small size allows completely new uses than its big-ger brothers. The scope of delivery already includes the necessary connection cable, socket, sealing ring, and nut.
Specifications
Key and shell material
Stainless steel
Pin material
H65 silver- / gold-plated
Key depth
3.5 mm
Operation mode
Momentary
Protection level
IP65 and IK10
Special feature
High-luminous LED (red)
Dimensions of mounting
Ø 12 x ≤ 8 mm
Overall dimensions
Ø 14 x 26.5 mm
Rated load (resistive)
7 A / 230 V AC
7 A / 24 V DC
Rated load (inductive)
3 A / 230 V AC
3 A /24 V DC
LED voltage
5 - 24 V DC
LED life
50 000 h
Connections
2x NO, LED+, LED-
Insulation resistance
≥ 1000 MΩ
Breakdown voltage
2500 V AC min.
Contact resistance
≤ 50 mΩ
Nut torque
0.8 - 1.2 Nm
Connector material
Flame retardant PA66
Environment temperature
-40 to 80°C
Additional information
Dimensions
Ø 14 x 26.5 mm
Weight
17 g
Items shipped
Button, connection cable, socket, sealing ring, nut
EAN
4250236825052
Article No.
Button12E-04
