Latching button red 1A

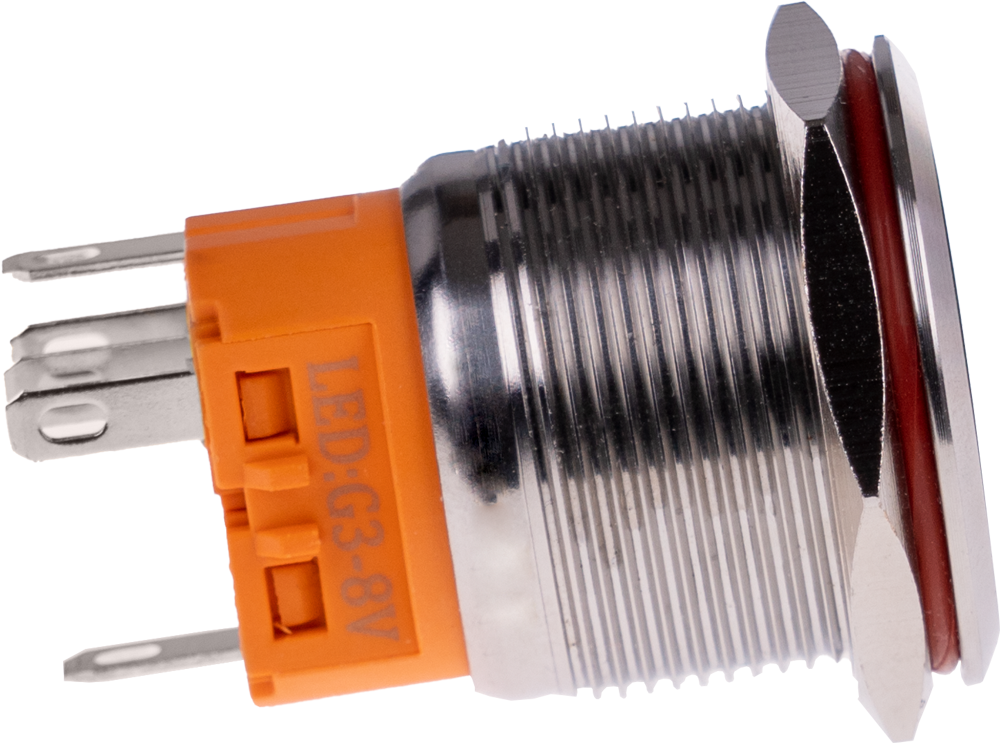

Our latching steel push button convinces with high-quality materials, protection classes and ergonomics. It is made of stainless steel and meets the protection classes IP65 (dust and water), IK10 (impact) and PA66 (flame). The protection classes, the wide temperature range and the durability make our steel push button suitable for many applications. The steel push button has a bright LED ring ( red ). Due to the concave design of the surface, there are no sharp edges. The connecting cables and the sockets have different colours and shapes, to avoid confusion between the push-button variants (22A / 22B / 22C).

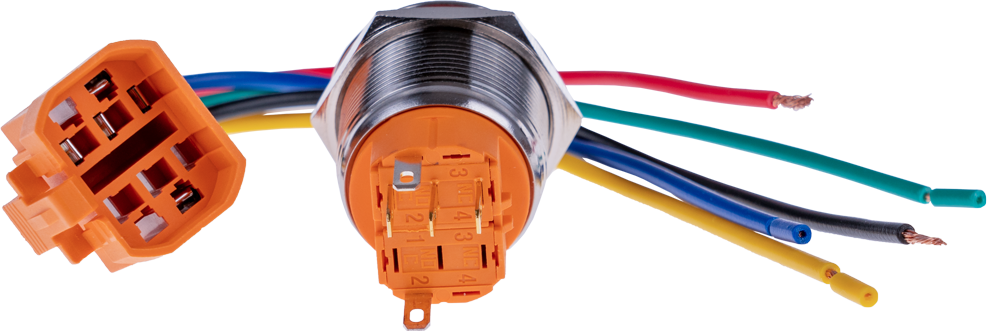

The necessary connection cables, socket, sealing ring and nut are already included in the scope of delivery.
Specifications
Special characteristics
High-luminous red LED ring
Operation mode
Latching
Key depth
3 mm
Rated load (resistive)
0.5 A / 230 V AC, 1 A / 110 V AC
1 A / 24 V DC
Rated load (inductive)
0.2 A / 110/230 V AC
0.2 A / 110 V DC
LED Voltage
3 - 8 V DC
LED lifespan
40,000 hours
Connectors
COM, NO, NC, 2x LED
Isolation resistance
≥ 1000 MΩ
Breakdown voltage
2500 V AC min.
Contact resistance
≤ 50 mΩ
Core and shell material
Stainless steel
Connector material
Flame retardant PA66
Contact material
Silver
Pin material
H65 gold-plated
Protection level
IP65, IK10
Nut torque
0.8 - 1.2 Nm
Dimensions mounting hole
Ø 22 x ≤ 6.5 mm
Additional information
Dimensions
Ø 24.8 x 35 mm
Weight
35 g
Items shipped
Push button, socket, sealing ring, nut, 5x 150mm cables
EAN
4250236821849
Article No.
Button22A-L-RD
