Momentary push button 15A

Momentary push button 15A

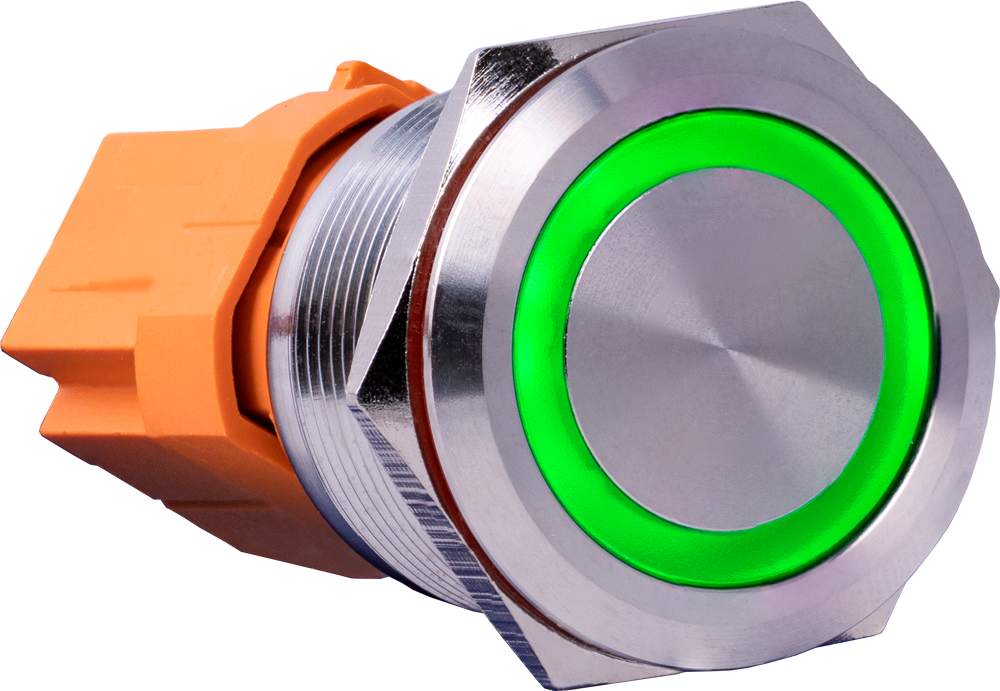

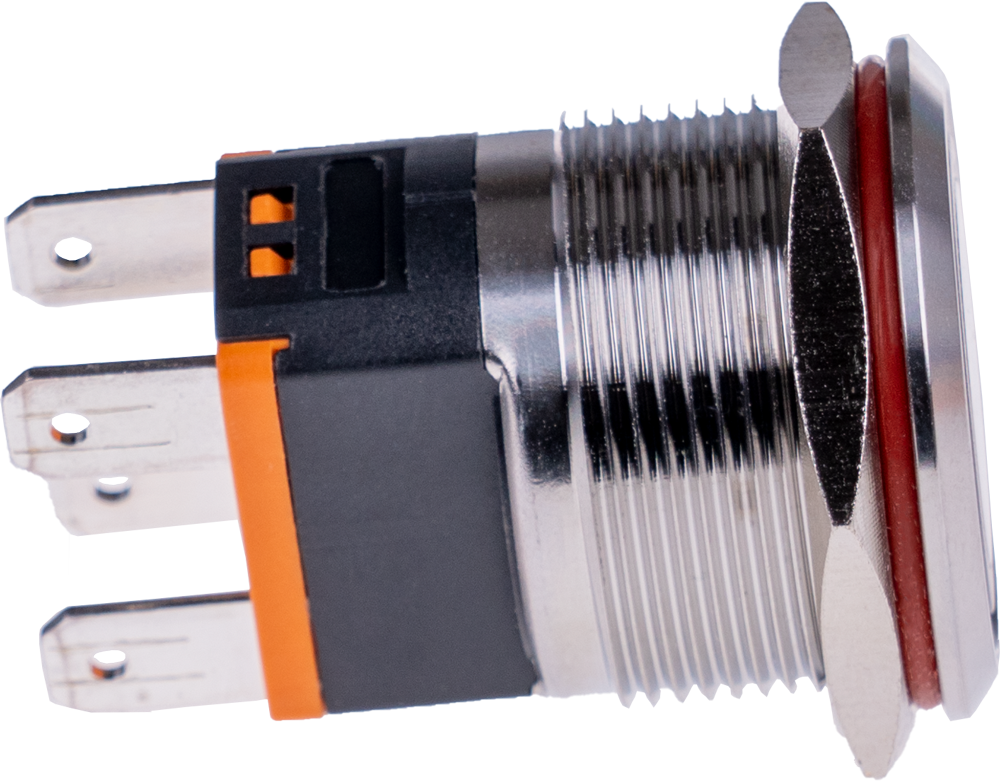

Our momentary steel push button convinces with high-quality materials, protection classes and ergonomics. It is made of stainless steel and meets the protection classes IP67 ( dust and water ), IK10 ( impact ) and PA66 ( flame ). The protection classes, the wide temperature range and the durability make our steel push button suitable for many applications. The steel push button has a bright LED ring ( green ). Due to the concave design of the surface, there are no sharp edges. The connecting cables and the sockets have different colours and shapes, so that confusing the push button variants ( 22A / 22B / 22C ) is impossible.

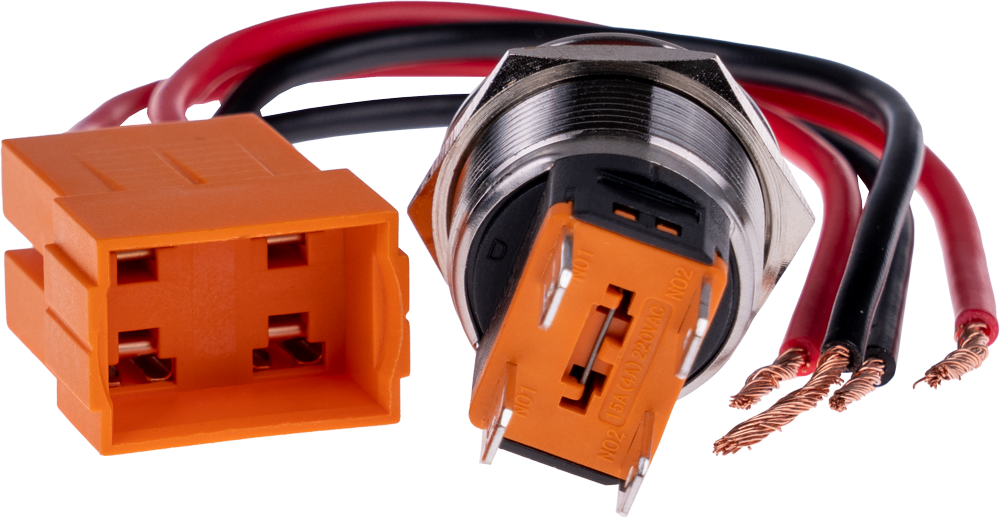

The necessary connection cables, socket, sealing ring and nut are already included in the scope of delivery.

Specifications

Specifications

Special characteristics

High-luminous green LED ring

Operation mode

Momentary

Key depth

3.5 mm

Switching current

15 A

Rated load

15 A / 250 V resistive 4 A / 250 V inductive

LED Voltage

3 - 8 V DC

LED lifespan

40,000 hours

Connectors

2x NO1, 2x N02

Isolation resistance

≥ 1000 MΩ

Breakdown voltage

1000 V AC min.

Contact resistance

≤ 50 mΩ

Core and shell material

Stainless steel

Connector material

Flame retardant PA66

Contact material

Silver

Pin material

H65 gold-plated

Protection level

IP67, IK10

Nut torque

5 - 14 Nm

Dimensions mounting hole

Ø 22.2 x ≤9 mm

Dimensions

Ø 24,8 x 34,5 mm

Weight

42 g

Items shipped

Push button, socket, sealing ring, nut, 4x 150mm cables

EAN

4250236821931

Article No.

Button22C-M-GR
