Touch switch

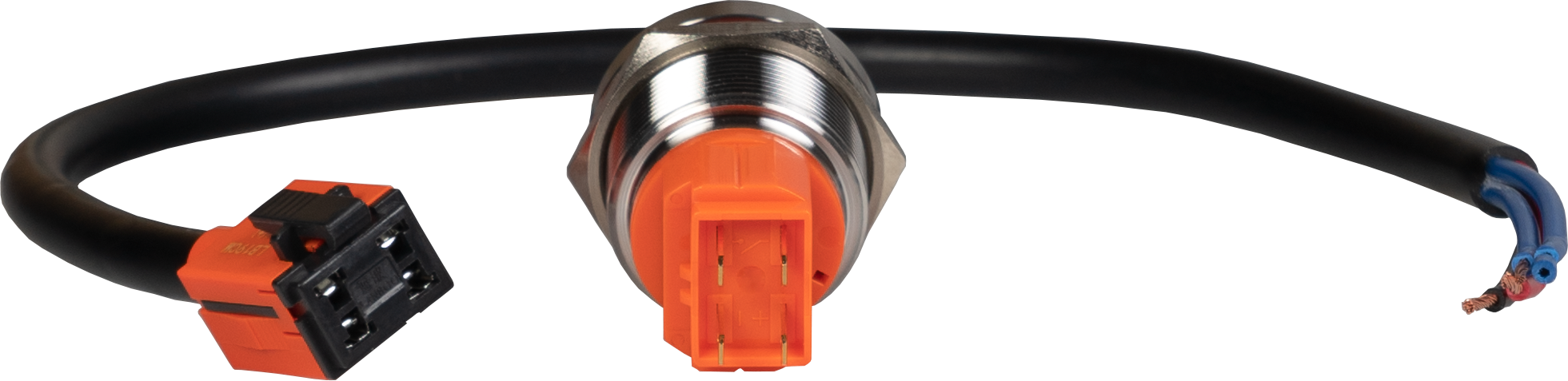

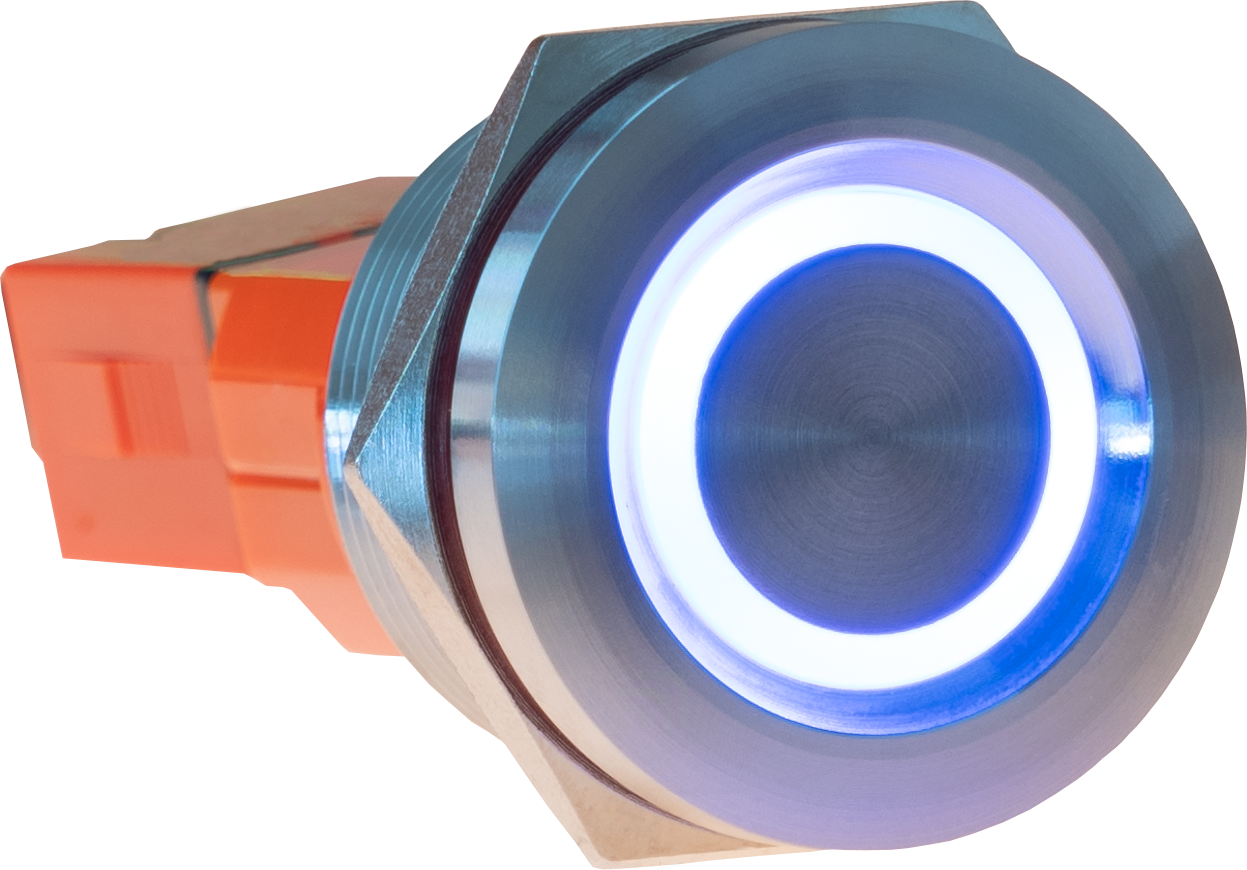

Our latching / momentary touch steel pushbutton convinces you with high-quality materials, protection classes, and ergonomics. It is made of stainless steel and meets the protection classes IP68 (dust and water), IK10 (impact), and PA66 (flame). The protection classes and durability make our steel pushbutton suitable for many applications. The steel pushbutton has a bright LED ring, which can glow in two different colors (red & blue). This is used to identify whether the touch switch detects a touch or is enga-ged. The scope of delivery already includes the necessary connection cable, socket, sealing ring, and nut.

Specifications

Key and shell material

Stainless steel

Pin material

H65 gold-plated

Operation mode

Latching

Protection level

IP68 and IK10

Special feature

High-luminous LED (blue & red)

Dimensions of mounting

Ø 22 x ≤7.5 mm

Overall dimensions

Ø 21,9 x 38 mm

Max. switch current

2 A

Rated load

2 A / 24 V DC

Supply voltage

24 V DC

LED life

40 000 h

Connections

2x NO

Insulation resistance

≥ 500 MΩ

Breakdown voltage

1000 V / 10 s

Contact resistance

≤ 50 mΩ

Nut torque

5 - 14 Nm

Connector material

Flame retardant PA66

Enviornment temperature

-25 to 55°C

Additional information

Dimensions

Ø 21,9 x 38 mm

Items shipped

Button, 4x 300 mm cables

EAN

4250236825144

Article No.

Button22T-02
