VM533

VM533

VM533

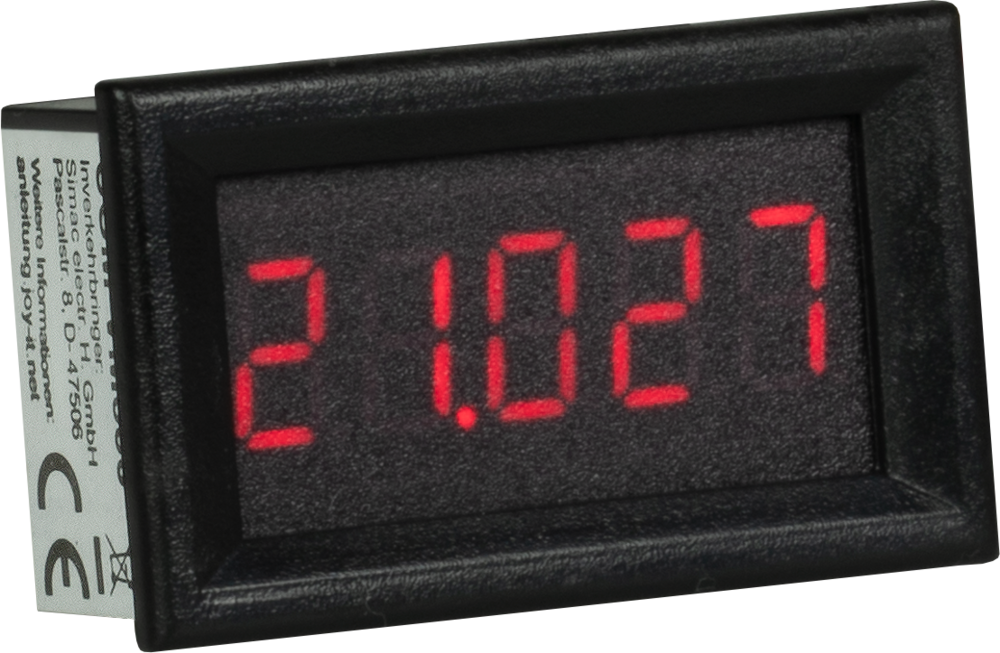

This digital voltmeter VM533 is able to measure voltages up to 33 V precisely and displays it on an integrated 0.36"- 5 digit segment display.

The running of the voltmeter is made possible directly within the measuring voltage. This makes the device to an absolute allrounder.

Specifications

Specifications

Operating voltage

3,5 - 30V (DC) | Operation via measuring voltage possible

Power consumption

ca. 4,4mA

Measuring range

0 - 33V DC

Measuring accuracy

±0,3%

Operating temperature

-10 - 65°C

Refresh rate

200 ms

Display mode

5 digits Segment display

Display size

0,36“

Display color

Red

Cable assignment

Red: supply voltage (+); black: ground (-); yellow: measuring voltage

Cable length

14cm

Dimensions

48 x 29 x 22 mm

Weight

16 g

Items Shipped

VM533

EAN

4250236817880

Article No.

COM-VM533
