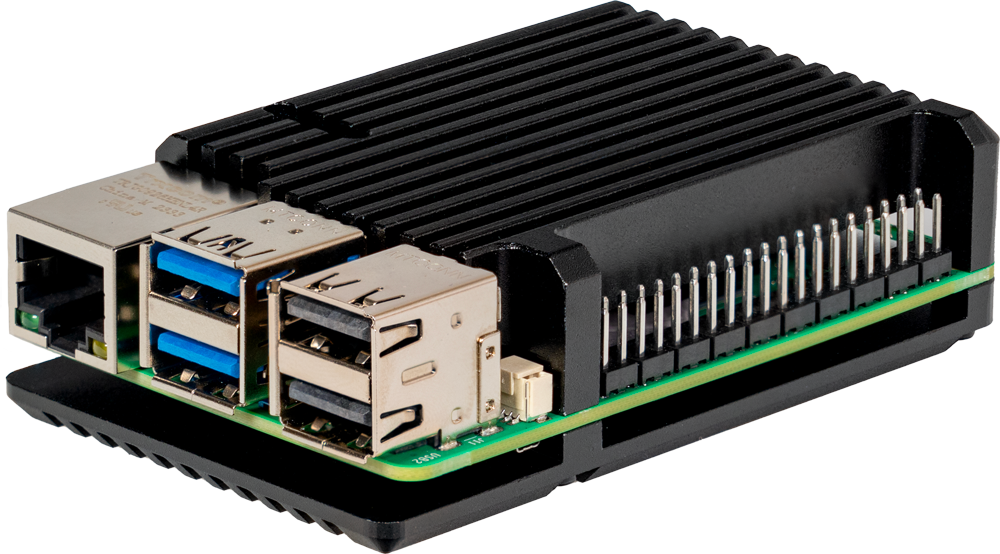

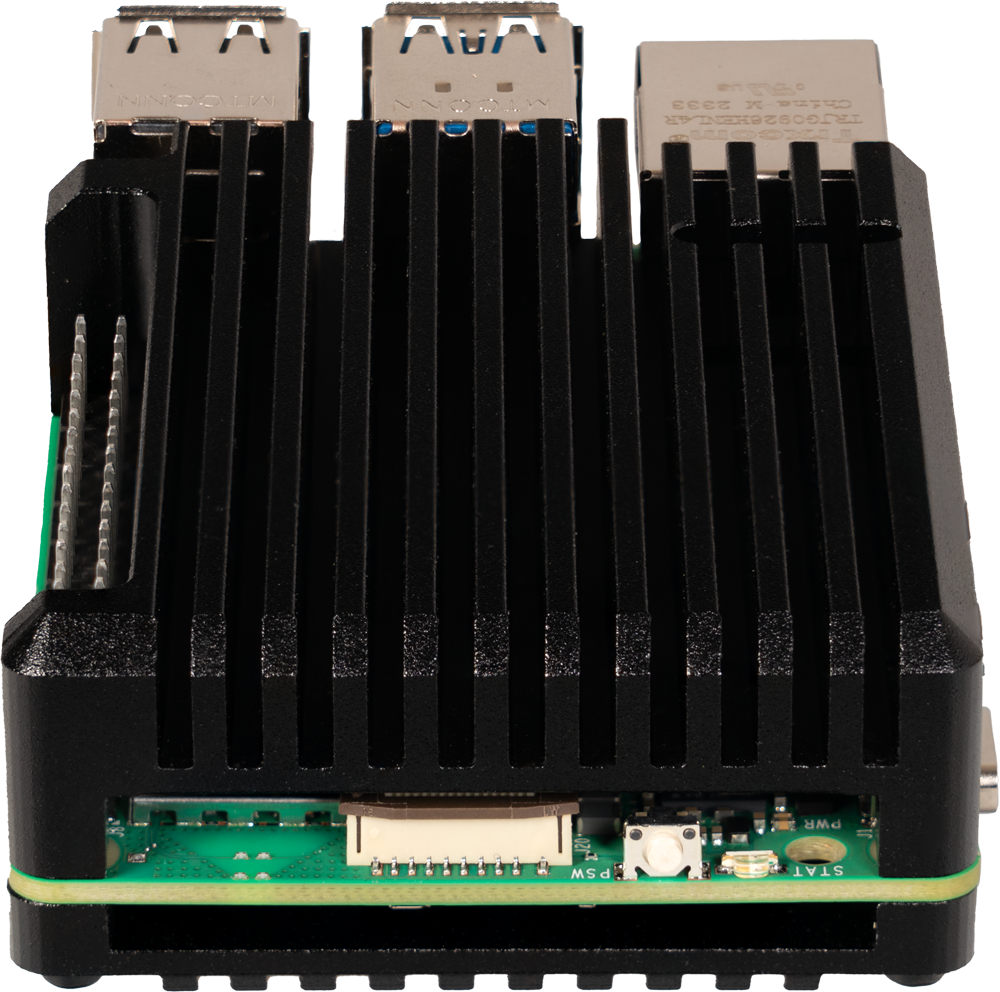

Aluminum case
This robust, high-quality aluminum housing is your ideal partner when it gets hot, as it protects your Raspberry Pi 5 against heat and shocks. It is therefore perfect for extreme conditions. Furthermore, it requires no additional space and can therefore be installed in existing projects.
NOTE: Our enclosures are supplied without logo imprint. However, if you would like a customized imprint, we will be happy to assist you. Contact us directly to discuss your personalized requirements and create a custom design.
Specifications
Material
CNC milled aluminum alloy
Color
Black
Compatible to
Raspberry Pi 5
Assembly
4 included screws connect housing and pi
Cooling performance
Idle: ~ 39 °C
Full load: ~ 75 °C
Special features
Large heat sink,
protection against shocks and heat with the same volume as without housing
Dimensions (top side)
69 x 56 x 15,5 mm
Dimensions (bottom side)
87 x 56 x 7,5 mm
Additional information
Weight
107
Items shipped
RB-AlucaseP5-07, screws, thermal transfer foil
EAN
4250236826837
Article No.
RB-AlucaseP5-07
